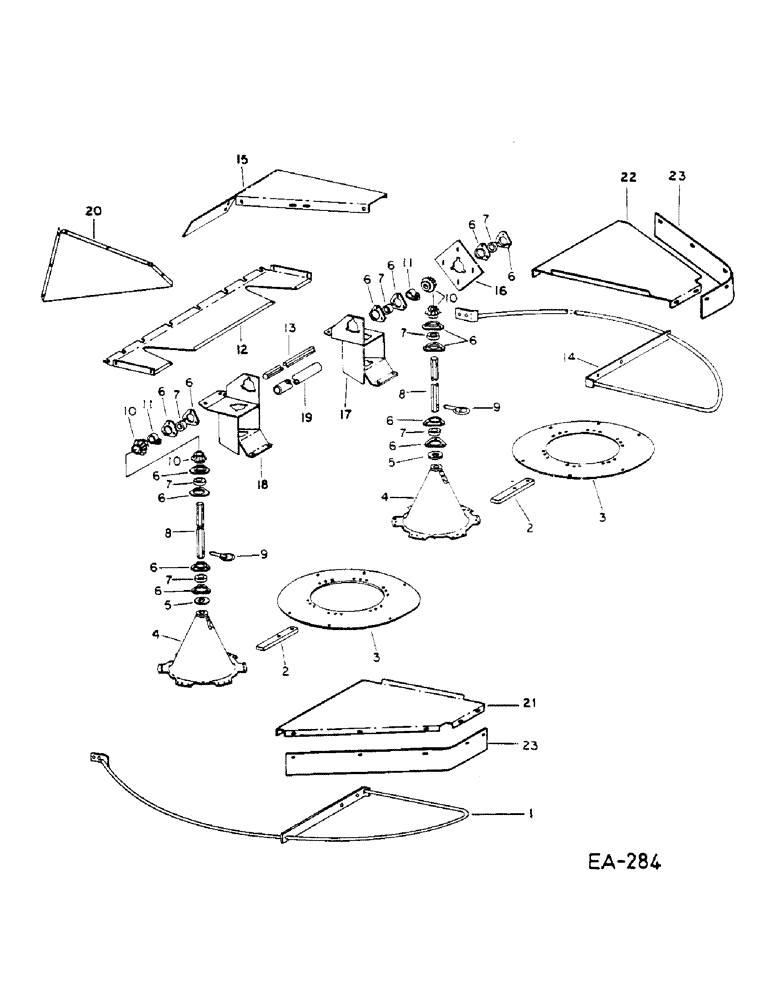

Запчасти Case IH 1460 (17-022) - STRAW SPREADER Mounted Equipment

1

192909C1

GUARD ASSY.

SHIELD ASSY, STRAW SPREADER LH

1шт.

3177070R1

SCREW,Sltd Truss Hd, M8 x 20

M8 X 20 SLT-TRUSS-HD

2шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

2шт.

2

194198C2

SKID/SHOE

STRIP, STRAW SPREADER

12шт.

180082

BOLT (SPREADER),Hex, 5/16" - 18 x 1 3/8", Gr 5

24шт.

120393

BEARING WASHER,5/16", SAE

24шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

24шт.

3

192252C1

RETAINER

STRAW SPREADER BATS

2шт.

4

188218C2

SUPPORT ASSY.

STRAW SPREADER

2шт.

5

183041C1

WASHER

WASHER, STRAW SPREADER CONE

2шт.

6

571424R1

FLANGE

STRAW SPREADER BEARING

12шт.

3177070R1

SCREW,Sltd Truss Hd, M8 x 20

M8 X 20 SLT-TRUSS-HD

15шт.

3175754R1

BOLT,Hex Flange, M8 x 1.25 x 20mm, Steel

6шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

21шт.

7

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

STRAW SPREADER

7шт.

P/N 195293C91 IS A SINGLE BEARING AND P/N B91449 IS A PACK OF 10 OF P/N 195293C91. MJP 2000

1шт.

7

548928R91

BALL BEARING,0.882" ID x 52 mm OD x 1"

STRAW SPREADER, OPTIONAL

7шт.

8

192240C1

SHAFT

BAR, STRAW SPREADER

2шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

2шт.

591715R1

WASHER

1.031 X 1.500 X .054

6шт.

9

1319303C1

PIN

STRAW SPREADER

2шт.

10

185410C1

GEAR-SET

SPREADER DRIVE - 14T

2шт.

11

104226H

CLAMP

SPREADER DRIVE GEAR

2шт.

23458R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

2шт.

21333R1

NUT,3/8"-16, G8

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

12

195138C4

SUPPORT

SPREADER DUST

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

1шт.

13

192242C3

BAR

STRAW SPREADER CROSS

1шт.

14

192910C1

GUARD ASSY.

SHIELD ASSY, STRAW SPREADER RH

1шт.

3177070R1

SCREW,Sltd Truss Hd, M8 x 20

M8 X 20 SLT-TRUSS-HD

2шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

2шт.

15

195246C4

SHIELD

SUPPORT, STRAW SPREADER

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

16

186506C1

SUPPORT

BAR, SPREADER BEARING

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

17

186551C2

SUPPORT ASSY.

DRIVE RH

1шт.

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

934310R1

NUT,M8, Cl 8

4шт.

934309R1

LOCK WASHER,M8

4шт.

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

2шт.

934930R1

WASHER

SPARE PART 9 X 16 X 1.5 MM

2шт.

18

186550C2

SUPPORT ASSY.

DRIVE LH

1шт.

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

934310R1

NUT,M8, Cl 8

4шт.

934309R1

LOCK WASHER,M8

4шт.

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

2шт.

934930R1

WASHER

SPARE PART 9 X 16 X 1.5 MM

2шт.

19

185034C1

SHIELD

SPREADER SHAFT

1шт.

20

1302105C1

DEFLECTOR

CORNER LH

1шт.

20

1302106C1

DEFLECTOR

CORNER RH

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

21

1312829C1

SHIELD

STRAW SPREADER LH

1шт.

3177082R1

SCREW

M8 X 12 SLT-TRUSS-HD

2шт.

3177070R1

SCREW,Sltd Truss Hd, M8 x 20

M8 X 20 SLT-TRUSS-HD

2шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

4шт.

168417H

CLAMP, .688 DIA CLOSED ZN

2шт.

22

1312830C1

SHIELD

STRAW SPREADER RH

1шт.

3177082R1

SCREW

M8 X 12 SLT-TRUSS-HD

2шт.

3177070R1

SCREW,Sltd Truss Hd, M8 x 20

M8 X 20 SLT-TRUSS-HD

2шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

4шт.

168417H

CLAMP, .688 DIA. CLOSED ZN

2шт.

23

1312831C1

RUBBER SLEEVE

SHEET

2шт.

3177082R1

SCREW

M8 X 20 SLT-TRUSS-HD

10шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

10шт.
