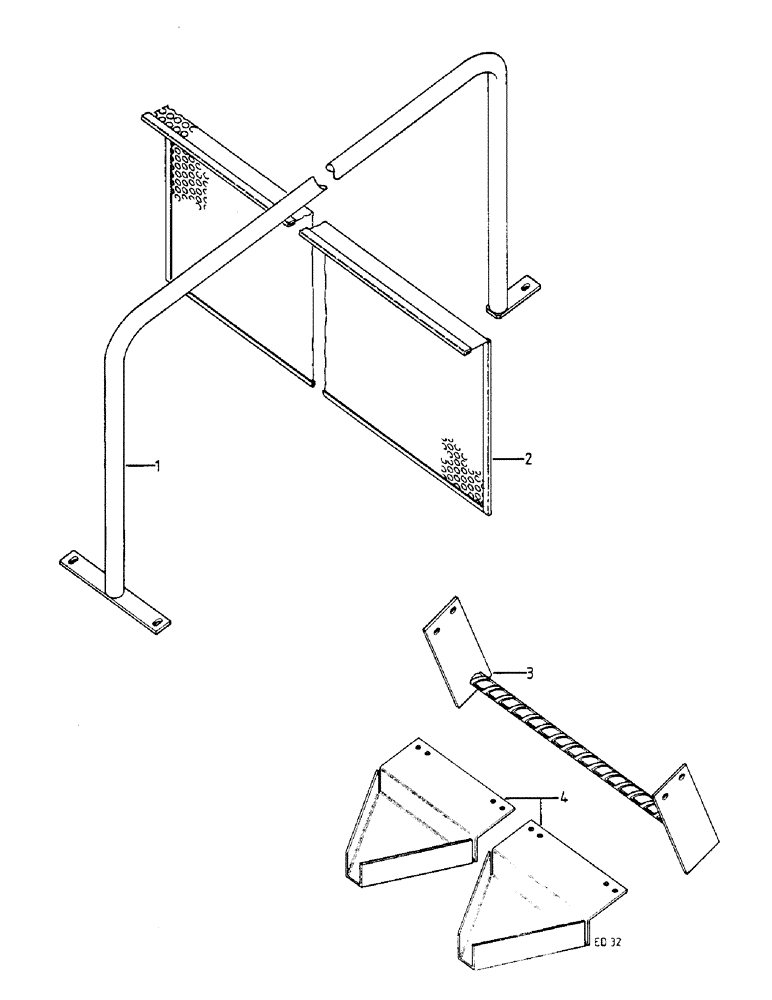

Запчасти Case IH 1460 (17-020) - ENGINE Q DRIVE SHAFT SHIELDS, WITH HANDRAIL AND FOOTSTEP, UK MACHINES ONLY Mounted Equipment

1

3179828R1

RAIL ASSY.

HAND

1шт.

3175754R1

BOLT,Hex Flange, M8 x 1.25 x 20mm, Steel

1шт.

3176200R1

WASHER

M8.25 X 18 X 1.5 FLAT

2шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

1шт.

2

1311039R1

SHIELD ASSY, ENGINE - REAR

1шт.

3177082R1

SCREW

M8 X 12 TRUSS HD SLTD M/C ZND

1шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

1шт.

3

3179833R1

EXTENSION ASSY.

STEP

1шт.

3164013R1

HOSE,847.00 mm

SCREW, M12 X 30 FLANGE LOCK

4шт.

3161013R1

LOCK NUT

M12 HEX

4шт.

4

3179820R1

SHIELD

STRAW SPREADER DRIVE SHAFT

2шт.
