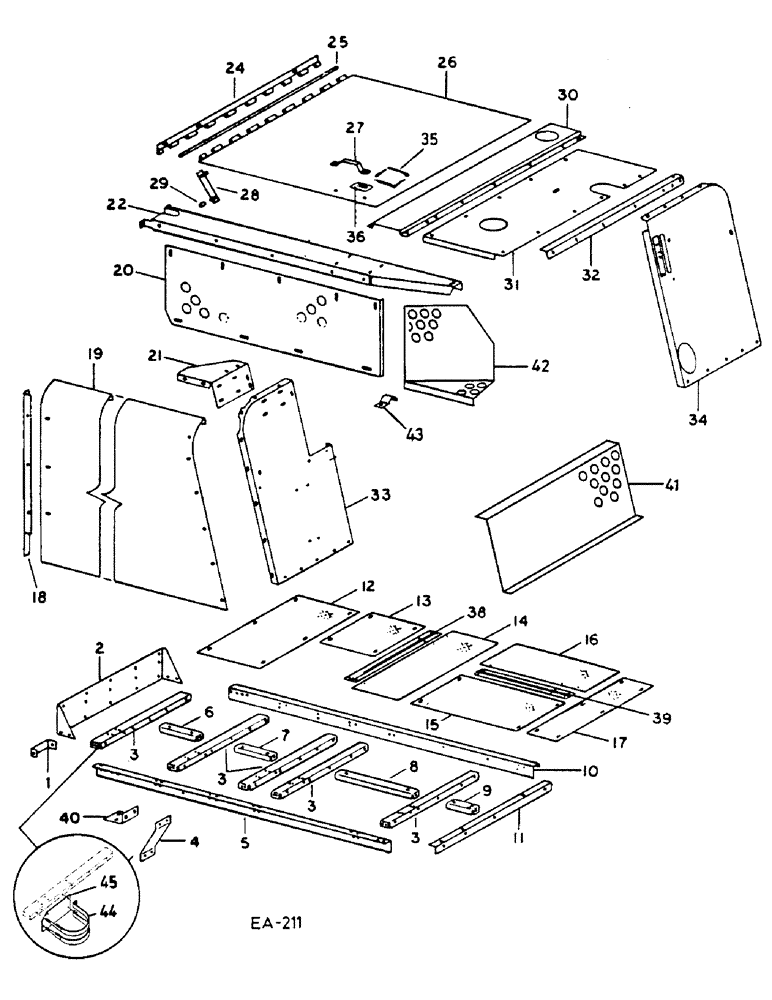

Запчасти Case IH 1460 (17-015) - ENGINE SHIELD AND SERVICE DECK Mounted Equipment

1

188419C1

CHANNEL

GRAIN TANK REAR UPPER L.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

2

193435C1

SUPPORT

ENGINE SERVICE DECK

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

3

192959C3

SUPPORT

DECK - FOR M/C'S FITTED W/SINGLE PUMP

5шт.

3

1322033C1

SUPPORT ASSY.

DECK - FOR M/C'S FITTED W/DUAL PUMP

5шт.

3177070R1

SCREW,Sltd Truss Hd, M8 x 20

M8 X 20 SLT-TRUSS-HD

23шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

23шт.

4

187506C1

SUPPORT

SEPARATOR VALVE - USED WITH 187505C91

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1шт.

5

188368C1

ANGLE

L.H. DECK SUPPORT

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 SLT-TRUSS-HD

1шт.

6

188081C1

SUPPORT

DECK

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

7

194461C1

SUPPORT

DECK

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

8

194460C1

SUPPORT

DECK

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

9

194459C1

SUPPORT

DECK

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

10

1312746C1

SUPPORT

DECK

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

11

193146C3

ANGLE

SUPPORT, ENGINE DECK REAR

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

12

194456C2

PLATE

ENGINE COMPARTMENT DECK - FOR M/C'S FITTED W/SINGLE PUMP

1шт.

12

1322037C1

PLATE

ENGINE COMPARTMENT DECK - FOR M/C'S FITTED W/DUAL PUMP

1шт.

30956R1

SELF-TAP SCREW

M6 X 12 HEX WASHER HD TAPPING

6шт.

13

194455C2

PLATE

ENGINE COMPARTMENT

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

1шт.

14

186694C2

DOOR

BELT ADJUSTING SEPARATOR DRIVE

1шт.

15

188096C2

PLATE

ENGINE DECK LEFT CENTRE

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

1шт.

16

186692C2

DOOR

SEPARATOR DRIVE HOUSING

1шт.

17

192596C3

PLATE

BAR, ENGINE COMPARTMENT

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

1шт.

18

188377C1

ANGLE

SHIELD STIFFENER UPPER L.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

19

1312217C1

SUPPORT

REAR UPPER LEFT TRIM

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

1312218C1

PADDING

SHEET, INSULATION

1шт.

20

1302703C1

PLATE

ROTOR COVER TO SERVICE DECK - REPLACES 194469C1 AND 194465C1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

21

195356C1

SUPPORT

L.H. REAR UPPER SHIELD - UNLOADER TUBE SADDLE SUPPORT

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

22

1312747C1

SUPPORT ASSY.

DOOR AND HOOD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

23

NOT USED

1шт.

24

194477C1

HINGE

ROTOR DOOR COVER

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

25

194478C1

ROD

ROTOR DOOR HINGE

1шт.

26

1312397C91

DOOR ASSY.

ENGINE AND ROTOR DRIVE COVER, WITH 35 - 36

1шт.

27

160638C1

HANDLE

ROTOR DOOR

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

28

1302413C1

PROP

PROP, Bar, Door

1шт.

29

568257R1

SPACER,1/2" Tube x 3/8"

Door Hold-Up

2шт.

178374R1

WASHER

.531 X 1.250 X .054

1шт.

20893R1

WASHER

.344 X 1.000 X .105

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

1шт.

567532R1

WASHER

WASHER, .328 X .50 X .16

1шт.

30

186757C1

SUPPORT

HOOD SUPPORT ENGINE

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

1шт.

31

1312462C1

SUPPORT

TOP COVER REAR

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

1шт.

32

1312148C1

ANGLE

ENGINE HOOD SUPPORT

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16 X 2 ZND SLT-TRUSS-HD

1шт.

33

193158C4

SUPPORT ASSY, REAR ENGINE L.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

34

1312463C2

SUPPORT

REAR ENBGINE R.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

35

1312066C1

PRODUCT GRAPHIC

CAUTION

1шт.

36

1312082C1

PRODUCT GRAPHIC

CAUTION

1шт.

37

NOT USED

1шт.

38

186695C1

HINGE

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 X 1/2 SLT-TRUSS-HD

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1шт.

39

186693C1

HINGE

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 X 1/2 SLT-TRUSS-HD

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1шт.

40

1301037C1

ANGLE

SEPARATOR VALVE - USED W/VALVE 1301171C1

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1шт.

934016R1

NUT

1/4 FLANGE LOCK

1шт.

41

1311039C1

SHIELD

ASSY, PERFORATED - ENGINE REAR

1шт.

3177082R1

SCREW

BOLT, M8 X 12 SLT-TRUSS-HD M/C

1шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Hex Thi-Bloc

1шт.

42

1311113C1

SHIELD

ASSY, PERFORATED - ENGINE SIDE

1шт.

3177082R1

SCREW

BOLT, M8 X 12 SLT-TRUSS-HD M/C

4шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Hex Thi-Bloc

4шт.

43

1866012R1

CLAMP

1шт.

44

3168896R1

SUPPORT ASSY.

OIL TANK - FOR M/C'S FITTED W/DUAL PUMP

2шт.

981830R1

BOLT, M8 X 20

2шт.

3176217R1

WASHER

8.25 X 16 X 1.6 MM

2шт.

934309R1

LOCK WASHER,M8

2шт.

934310R1

NUT,M8, Cl 8

2шт.

905369R1

NUT,M10, Cl 8

2шт.

45

3179934R1

PLATE

OIL TANK SUPPORT

1шт.

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

1шт.

3176217R1

WASHER

8.25 X 16 X 1.5 MM

1шт.

934309R1

LOCK WASHER,M8

1шт.

934310R1

NUT,M8, Cl 8

1шт.
