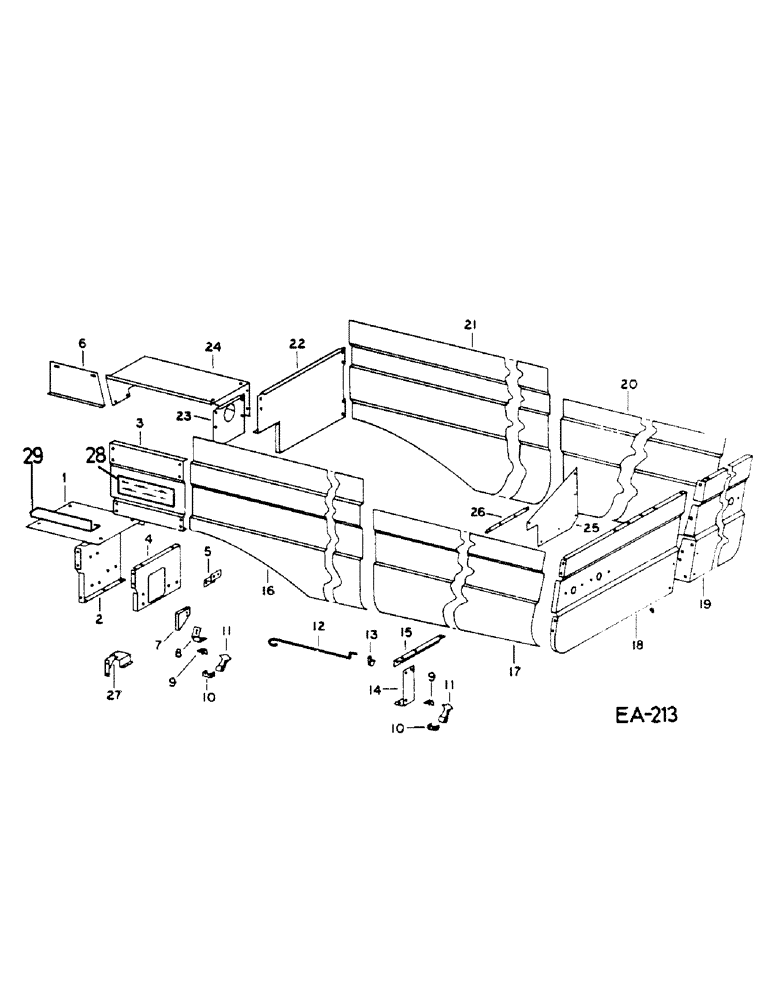

Запчасти Case IH 1460 (17-011) - SHIELDS AND TRIM Mounted Equipment

1

1312188C1

COVER

VALVE BOX TOP

1шт.

28015R1

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

1шт.

2

1312185C1

SUPPORT

VALVE BOX FRONT

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

3

1312400C91

SHEET

VALVE BOX L.H. SIDE, WITH 28

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

4шт.

4

1312186C1

SUPPORT

VALVE BOX REAR

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

5

196873C2

SUPPORT

FEEDER CLUTCH VALVE

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

6

188160C1

SUPPORT

R.H. FRONT CAB BOTTOM

1шт.

150100C1

SPRING NUT

5/16 TINNERMAN

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

7

NOT USED

1шт.

8

NOT USED

1шт.

9

764071C1

BRACKET

TRIM HOOK

2шт.

436734

SCREW,Slotted Pan Hd, #10-24 x 3/4"

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

1шт.

10

188103C1

BRACKET

HOOK ANCHOR

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

11

494307C1

LATCH

TRIM HOLD DOWN

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

22910R1

HEADED PIN

1/4 X 1.500 HD TYPE 1

1шт.

12

183444C1

ROD

TANK LOWER DOOR

1шт.

12

186570C1

ROD

TANK LOWER DOOR - GERMAN M/C'S ONLY

1шт.

13

362123R1

CLIP

TRIM SHEET BRACE

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

13

760109R1

CLIP

TRIM SHEET BRACE

1шт.

3177082R1

SCREW

M8 X 12 SLTD-TRUSS-HD

1шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Hex Thi-Bloc - German M/C'S Only

1шт.

14

188156C2

SUPPORT

R.H. TRIM REAR CATCH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

15

1311159C1

ANGLE

SHIELD SUPPORT

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

16

1312140C1

GUARD ASSY.

SHIELD ASSY, GRAIN TANK TRIM

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

17

1312219C1

GUARD

SHIELD ASSY, REAR TRIM L.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

1312220C1

FOAM

SHEET, INSULATION

1шт.

1312221C1

FOAM

SHEET, INSULATION

1шт.

18

1312134C1

PANEL, SIDE

SUPPORT, RAIL LAMP L.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

488837C1

SPRING NUT

5/16 SPEED

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

19

1312135C1

PANEL, SIDE

SUPPORT, RAIL LAMP R.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

488837C1

SPRING NUT

5/16 SPEED

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

20

193734C1

SHIELD

ASSY, REAR TRIM R.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 SLT-TRUSS-HD

1шт.

21

1312141C1

SUPPORT ASSY.

RIGHT FRONT TRIM

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

22

1312145C1

SUPPORT

LOWER R.H. FRONT

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

23

194452C2

SUPPORT

GEAR CASE FRONT

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

24

1312745C1

SUPPORT

FEEDER DRIVE UPPER

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 X 3/4 SLT-TRUSS-HD

1шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

1шт.

25

NOT USED

1шт.

26

NOT USED

1шт.

27

182834C1

SUPPORT

L.H. FRONT LATCH

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

28

1312072C1

PRODUCT GRAPHIC

DANGER

1шт.

29

3179976R1

ANGLE

SAFETY

1шт.

3177070R1

SCREW,Sltd Truss Hd, M8 x 20

M8 X 20 SLT-TRUSS-HD

2шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

2шт.
