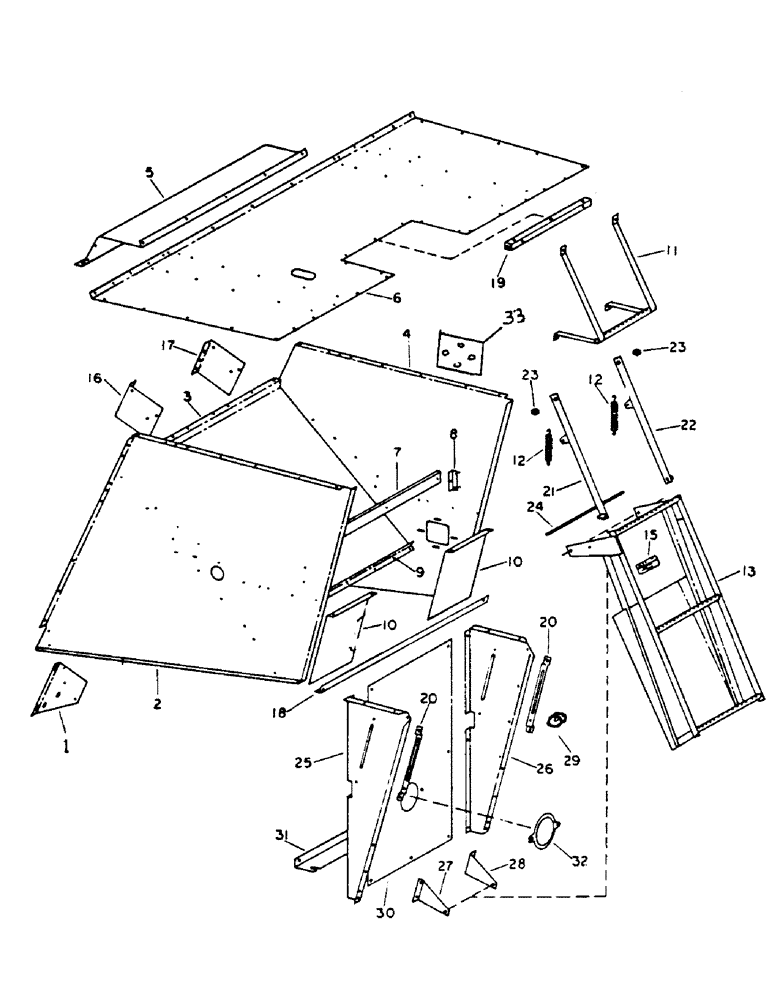

Запчасти Case IH 1460 (17-005) - SEPARATOR HOOD AND SERVICE LADDER Mounted Equipment

1

SUPPORT, SEPARATOR HOOD - SEE STEERING AXLE SHIELD

1шт.

2

192378C5

SUPPORT

SEPARATOR HOOD SIDE L.H.

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

3

192313C4

SUPPORT

STRAW DISCHARGE

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

4

185281C2

SUPPORT

SEPARATOR HOOD SIDE R.H.

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

5

1312454C1

SUPPORT

ENGINE DECK

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

6

1312453C1

SUPPORT

SPARE PART SERVICE DECK

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

7

185399C1

X

CHANNEL ASSY, SERVICE LADDER SUPPORT

1шт.

8

194311C1

ANGLE

UPPER SERVICE LADDER

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

9

194305C1

ANGLE

DEFLECTOR STIFFENER

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

10

1302212C1

SUPPORT ASSY.

HOOD REAR ACCESS

1шт.

488837C1

SPRING NUT

1шт.

176978C1

THUMB SCREW,5/16" - 18 x 0.75"

THUMB

1шт.

11

185406C1

STEP

ASSY, UPPER SERVICE LADDER

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

12

165

SPRING

2шт.

120394

WASHER,3/8", SAE

1шт.

13

1312063C2

X

LADDER ASSY, REAR SERVICE, WITH 15

1шт.

455516

COTTER PIN,3/16" x 3/4"

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

1шт.

14

NOT USED

1шт.

15

2754442R1

PRODUCT GRAPHIC

DANGER

1шт.

16

NOT USED

1шт.

17

NOT USED

1шт.

18

192309C2

ANGLE

HOOD SUPPORT REAR

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 X 1-1/4 SLT-TRUSS-HD

1шт.

19

186971C1

ANGLE

SERVICE DECK REAR SUPPORT

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

20

186980C1

SUPPORT

LADDER PIVOT

2шт.

21

185223C1

LEVER ASSY.

SPARE PART LADDER SLIP L.H.

1шт.

18481R1

COTTER PIN,3/16" x 1"

1шт.

178374R1

WASHER

.531 X 1.250 X .054

1шт.

22

185224C1

LEVER ASSY.

LADDER SLIP R.H.

1шт.

18481R1

COTTER PIN,3/16" x 1"

1шт.

178374R1

WASHER

.531 X 1.250 X .054

1шт.

23

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

LADDER LIP LEVER

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

1шт.

619856R1

WASHER

.406 X 1.000 X .056

1шт.

178373R1

WASHER

.531 X 1.000 X .056

1шт.

24

NOT USED

1шт.

25

185404C2

SUPPORT

REAR SERVICE LADDER

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

488837C1

SPRING NUT

5/16 SPEED

1шт.

26

185405C2

SUPPORT

REAR SERVICE LADDER VERTICAL R.H.

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

488837C1

SPRING NUT

5/16 SPEED

1шт.

27

185227C2

BAR

REAR SERVICE LADDER PIVOT L.H.

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

28

185228C2

SUPPORT

BAR, REAR SERVICE LADDER PIVOT R.H.

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

29

1312062C1

PAD

LADDER STOP

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

134238R1

WASHER

.344 X 1.000 X .054

1шт.

30

186970C1

SHEET

LADDER OPENING FRONT

1шт.

160508

SCREW,Cross Pan Hd, 1/4" - 20 x 3/8"

1шт.

92068R1

NUT

LADDER SHEET

1шт.

31

186972C2

SUPPORT

LADDER OPENING BOTTOM

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

32

188315C1

DOOR

FUEL TANK SHUT-OFF ACCESS

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 X 1/2 TYPE 1

1шт.

86625061

NUT,1/4"-20, GB

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 X 1/2 SLT-TRUSS-HD

1шт.

935735R1

WING NUT

1/4 WING

1шт.

33

1312291C1

SHEET

STRAW SPREADER SHAFT HOLE - CAP

1шт.
