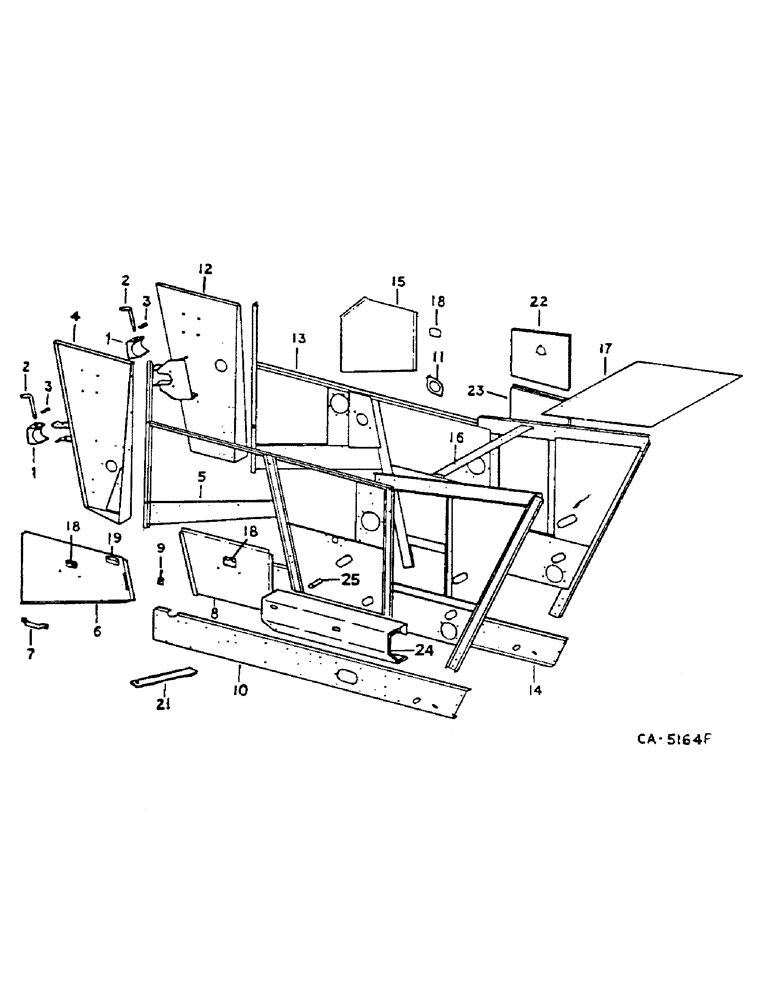

Запчасти Case IH 1460 (17-002) - SEPARATOR SIDES Mounted Equipment

1

193834C1

BLOCK

FEEDER PIVOT

2шт.

2

192533C2

ROD

FEEDER PIVOT BLOCK

2шт.

3

520175R1

CLIP

ROD, PIVOT BLOCK QUICK-ATTACH

2шт.

4

185124C2

POST

ASSY, L.H. FRONT

1шт.

454998

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

20739R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

1шт.

161068R1

BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

1шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

1шт.

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

.641 X 1.25 X .120 GAUGE ZND

1шт.

5

185256C2

SIDE ASSY.

SEPARATOR L.H.

1шт.

20739R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

1шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

1шт.

6

1312285C91

DOOR

SEPARATOR L.H. FRONT, WITH 18 - 19

1шт.

7

160638C1

HANDLE

SEPARATOR SIDE AND FRONT DOOR

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

8

1312286C91

DOOR

SEPARATOR L.H. SIDE, WITH 18

2шт.

9

167800C1

CLIP

DOOR RETAINER

15шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

10

1308817C1

SUPPORT

SEPARATOR L.H. SIDE MAIN

1шт.

11

183315C1

HOSE CLIP

DOOR, SEPARATOR SIDE R.H.

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 X 1/2 SLT-TRUSS-HD

1шт.

231-4144

NUT,1/4"-20, GB

1шт.

935735R1

WING NUT

1/4 WING

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 X 1/2 TYPE 1

1шт.

12

185125C2

PANEL

POST ASSY, R.H. FRONT

1шт.

454998

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

20739R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

1шт.

161068R1

BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

1шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

1шт.

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

.641 X 1.25 X .120 GAUGE ZND

1шт.

13

185257C1

SIDE PLATE

SEPARATOR R.H.

1шт.

20739R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

1шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

1шт.

432366

HOLE PLUG BUTTON,1 3/8"

1-3/8 BUTTON

1шт.

14

1308818C1

SUPPORT

SEPARATOR R.H. SIDE MAIN

1шт.

15

1312287C91

DOOR

SEPARATOR R.H. FRONT, WITH 18

1шт.

16

195316C1

SUPPORT ASSY.

ENGINE DECK

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

17

192323C2

SUPPORT

ENGINE DECK

1шт.

18

1312071C1

PRODUCT GRAPHIC

DANGER

3шт.

19

1312083C1

PRODUCT GRAPHIC

CAUTION

1шт.

20

NOT USED

1шт.

21

196315C2

BAR

SEPARATOR FRAME DIAGONAL

2шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

1шт.

25710R1

WASHER

.531 X 1.062 X .134 HDN

1шт.

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2 P/T FLANGE TYPE 8

1шт.

22

181092C2

SUPPORT ASSY.

BEATER L.H.

1шт.

22

181093C2

SUPPORT

ASSY, BEATER R.H.

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

120394

WASHER,3/8", SAE

1шт.

23

181085C2

DOOR

SEPARATOR SIDE

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

24

1311096C1

GUARD ASSY.

SHIELD ASSY, INSULATION

1шт.

25

1311106C1

SPACER

SHIELD

1шт.
