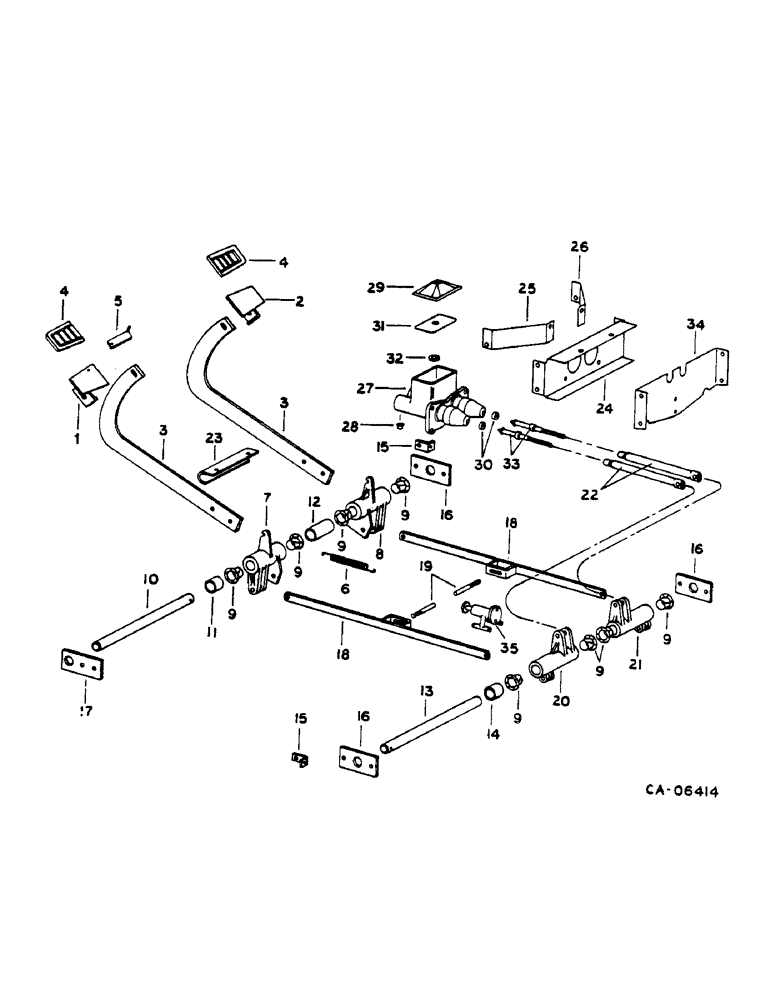

Запчасти Case IH 1460 (04-002) - MASTER BRAKE CONTROLS (5.1) - BRAKES

1

163426C1

PEDAL

BRAKE L.H.

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

2

163427C1

PEDAL

BRAKE R.H.

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

3

184166C2

SUPPORT ASSY.

BRAKE

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

4шт.

4

863426R1

PAD

BRAKE PEDAL

2шт.

5

614251R11

BAR

BRAKE LOCKING

1шт.

19938R1

PIN,1/8" x 7/8", Coiled

1шт.

6

184327C1

SPRING

BRAKE PEDAL RETURN

2шт.

7

1302154C2

HUB

BRAKE PEDAL L.H.

1шт.

8

1302155C2

HUB

BRAKE PEDAL R.H.

1шт.

9

277523R1

BUSHING

BRAKE PEDAL PIVOT

8шт.

10

1302146C1

SHAFT

BRAKE PEDAL

1шт.

591715R1

WASHER

1.031 X 1.500 X 0.54

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

1шт.

11

152261C1

SPACER,1 1/4" Tube x 1 7/8"

1-1/4 X .625 BRAKE SHAFT L.H.

1шт.

12

151478C1

SPACER,1 1/4" Tube x 1 5/8"

BRAKE PIVOT SHAFT INNER

1шт.

13

187580C1

SHAFT

BRAKE REAR PIVOT

1шт.

591715R1

WASHER

1.031 X 1.500 X 0.54

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

1шт.

14

654385R1

SPACER,26.21mm ID x 31.75mm OD x 19.05mm L

BRAKE REAR PIVOT SHAFT L.H.

1шт.

15

187628C1

ANGLE

BRAKE PIVOT SHAFT RETAINER

2шт.

16

165901C1

BAR

BRAKE PIVOT SHAFT SUPPORT

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT -TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

17

1302147C1

BAR

BRAKE PIVOT SHAFT SUPPORT

1шт.

18

188889C1

BAR

BRAKE PEDAL

2шт.

22320R1

CLEVIS PIN,3/8" x 1.781"

3/8 X 1.781 CLEVIS

1шт.

121222

COTTER PIN,3/32" x 3/4"

1шт.

19

1302167C1

ROD

EQUALIZER ADJUSTING

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

20

188891C2

HUB

BRAKE LINK L.H.

1шт.

21

188892C2

HUB

BRAKE LINK R.H.

1шт.

22

1302145C2

ROD

BRAKE CYLINDER

2шт.

22320R1

CLEVIS PIN,3/8" x 1.781"

3/8 X 1.781 CLEVIS

1шт.

121222

COTTER PIN,3/32" x 3/4"

1шт.

23

195509C1

SUPPORT

SPARE PART BRAKE LEVER

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

24

195515C2

SUPPORT ASSY.

BRAKE MASTER CYLINDER

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

25

1302150C1

SUPPORT

BRAKE MASTER CYLINDER L.H.

1шт.

26

1302149C1

SUPPORT

BRAKE MASTER CYLINDER R.H.

1шт.

27

222834C91

MASTER CYLINDER,124.46mm Stroke

BRAKE MASTER

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

28

222846C1

INSERT

SEAT

2шт.

29

222843C1

CAP

MASTER CYLINDER

1шт.

180050

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

1шт.

120392

WASHER,1/4", SAE

1шт.

30

222842C1

WASHER

STOP

1шт.

31

222844C1

GASKET

CAP

1шт.

32

222845C1

WASHER

INTERNAL

1шт.

33

222841C1

ROD

MASTER CYLINDER PUSH

2шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

34

1302168C2

SUPPORT

EQUALIZER VALVE ADJ

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

35

1301839C91

VALVE

ASSY, EQUALIZER

1шт.

NLS

NO LONGER SERVICED

1/4 X 1/2 PHC R/HDS MACH

1шт.

222835C91

KIT

MASTER CYLINDER REPAIR, NOT ILLUSTRATED

1шт.
