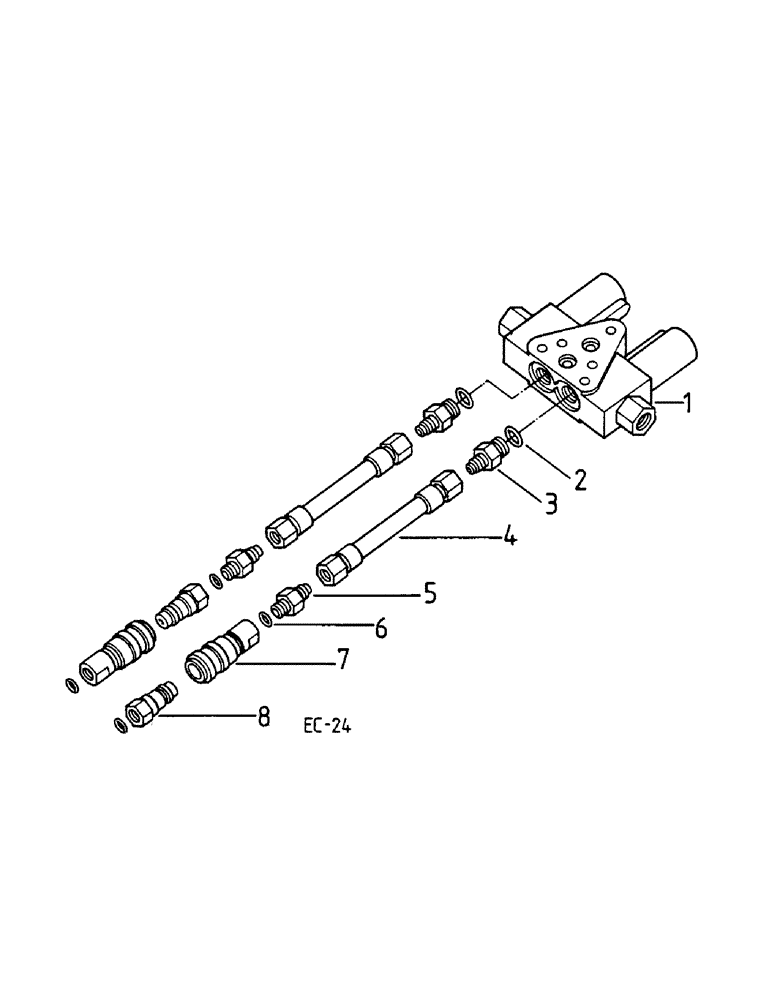

Запчасти Case IH 1460 (10-117) - VALVE D.A. WITH CONNECTIONS (07) - HYDRAULICS

1

1267035C92

VALVE

D.A.

1шт.

1301630C1

TUBE

2шт.

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

18668R1

BOLT,Hex, 1/4" - 20 x 6", Gr 2

3шт.

120380R1

WASHER

1/4 LOCK

3шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

3

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR

2шт.

4

1301350C1

HOSE ASSY.

2шт.

5

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16 - 18 37 DEG FLARE

4шт.

6

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8 OD tube

4шт.

7

187563C1

COUPLING, QUICK, FEM

FEMALE

2шт.

8

187562C1

QUICK MALE COUPLING

MALE

2шт.

1301359C1

SWITCH

NOT ILLUSTRATED

1шт.

1866277R1

ARMATURE

WIRING, NOT ILLUSTRATED

1шт.

306132C1

CABLE TIE,14.5" L

CABLE STRAP LOCK, 14 IN., NOT ILLUSTRATED

4шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP Lock, Not Illustrated

3шт.

537024R1

CLIP

CABLE, NOT ILLUSTRATED

1шт.

1866333R1

DECAL

NOT ILLUSTRATED

1шт.
