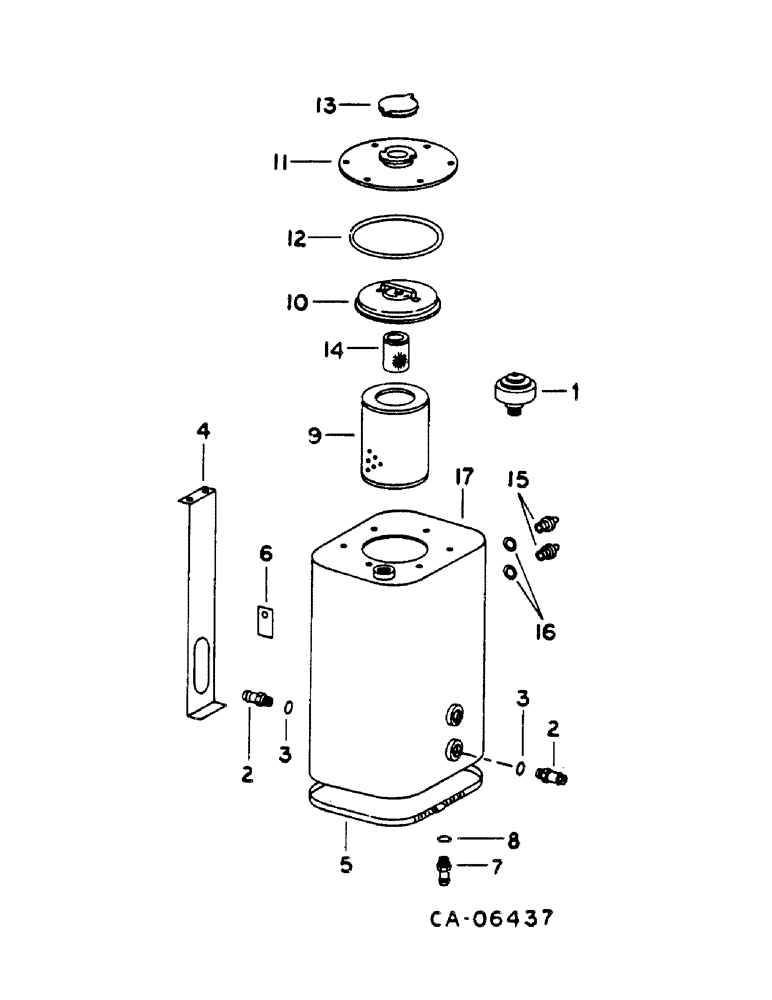

Запчасти Case IH 1460 (10-115) - HYDRAULIC RESERVOIR (07) - HYDRAULICS

1301237C91

TANK

ASSY, HYDRAULIC OIL, WITH 9 - 16

1шт.

1301281C91

TANK

ASSY, HYDRAULIC OIL, OPTIONAL

1шт.

1

932745C91

BREATHER, FILTER ASSY

1шт.

190723

LUBE NIPPLE,Nipple, 3/4" NPT x 2 1/2

PIPE - LONG

1шт.

111661

COUPLING,3/4" NPT

COUPLING, PIPE

1шт.

2

470420R11

FITTING

BASIC SYSTEM RETURN AND COOLER

2шт.

3

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD TUBE

3шт.

4

193291C1

SUPPORT

HYDRAULIC RESERVOIR

2шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

5

27804R1

HOSE CLAMP,#180, 10.88/11.75 Type F Worm

HYDRAULIC RESERVOIR

2шт.

6

159752C1

SUPPORT

HYDRAULIC RESERVOIR CLAMP

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

7

196816C1

FITTING

1/2 PORT 5/8 BEADED TUBE

1шт.

8

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2" TUBE

1шт.

9

528493R3

HYDRAULIC OIL FILTER

ELEMENT ASSY, TANK, FOR 1301237C91

1шт.

10

173131C1

COVER ASSY

FILTER, FOR 1301237C91

1шт.

11

1301115C1

COVER ASSY

SPARE PART TANK, FOR 1301237C91

1шт.

12

3042933R1

O-RING,-437, 70 Duro, 5.975" ID x .275" Thk

TANK COVER, FOR 1301237C91

1шт.

13

361705R91

COVER

CAP ASSY, TANK, FOR 1301237C91

1шт.

14

179489C1

FILTER, ENGINE OIL

FILTER, OIL CAP TANK, FOR 1301237C91

1шт.

15

244600R92

SIGHTGLASS

ASSY, OIL LEVEL, FOR 1301237C91

2шт.

16

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SIGHT GLASS, FOR 1301237C91

2шт.

17

TANK ASSY, HYDRAULIC OIL - NOT AVAILABLE SEPARATELY, ORDER 1301237C91 OR 1301281C91

1шт.
