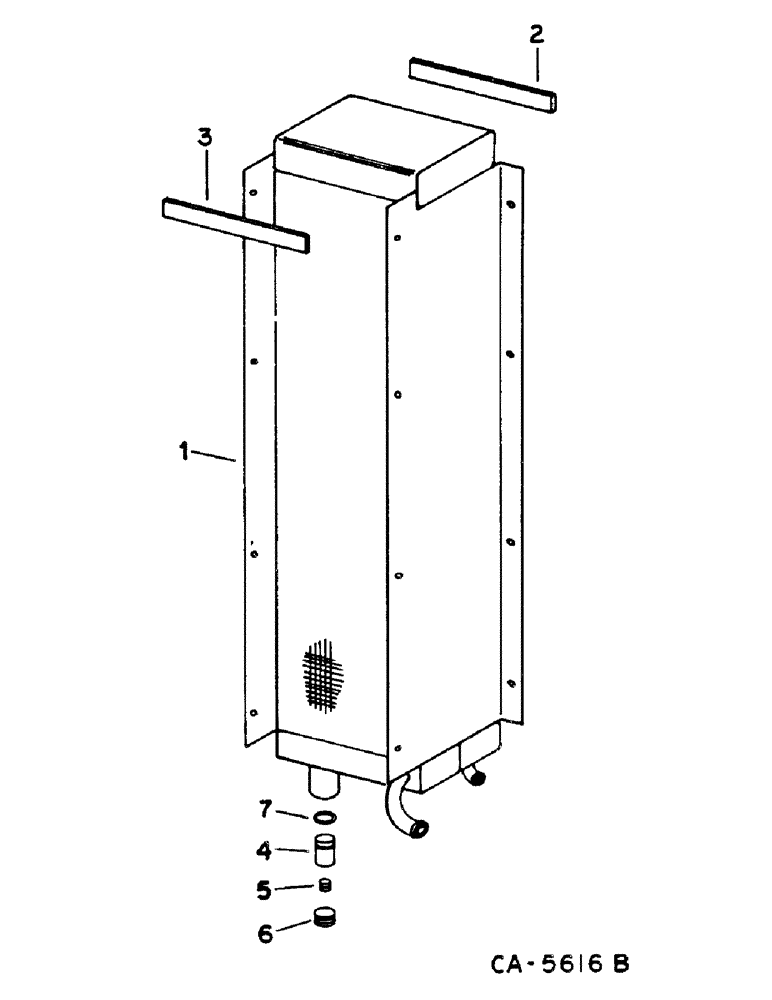

Запчасти Case IH 1460 (10-113) - OIL COOLER (07) - HYDRAULICS

1

1265691C91

COOLER ASSY.

OIL, WITH 4 - 7

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

80681

LOCK WASHER,5/16"

8шт.

120393

BEARING WASHER,5/16", SAE

8шт.

2

STRIP, SEALING - 6 IN. FROM BULK LENGTH

2шт.

73222C1

STRIP

BULK LENGTH 4 FT

1шт.

3

188062C1

STRIP

OIL COOLER

2шт.

4

146547C1

VALVE

CHECK

1шт.

5

61222C1

SPRING

CHECK VALVE

1шт.

6

146548C1

PLUG

PIPE

1шт.

7

610547C1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

1шт.

8

1312855C2

SUPPORT

OIL COOLER

1шт.

9

1317629C2

SUPPORT

OIL COOLER

1шт.

10

1312828C1

SUPPORT ASSY.

OIL COOLER

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

6шт.
