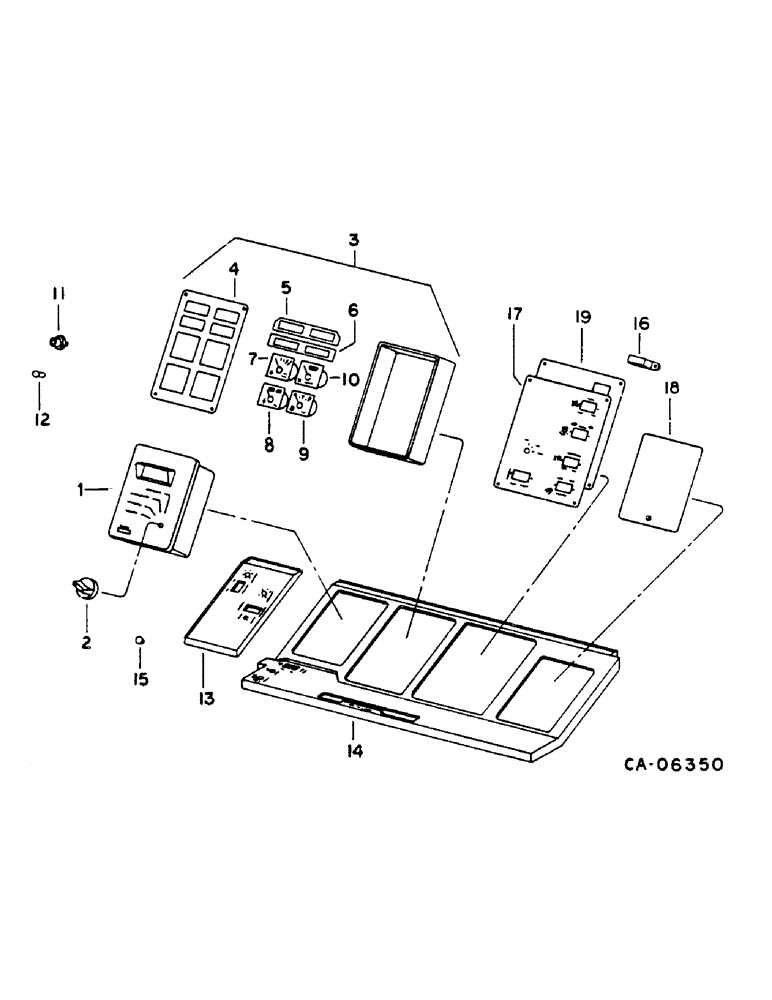

Запчасти Case IH 1460 (11-002) - INSTRUMENTS AND GAUGES Instruments

1

R187512C91

TACHOMETER

SYSTEM, MULTI-POSITION

1шт.

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

1шт.

2

196980C1

KNOB

MULTI-POSITION TACHOMETER

1шт.

192208

SET SCREW,Hex Soc, #8-32 x 3/16"

1шт.

3

1312864C91

GAUGE ASSY.

CLUSTER, WITH 4 - 12

1шт.

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

1шт.

4

121608C1

GASKET

ASSY

1шт.

5

1311069C1

LENS

WARNING LIGHTS

1шт.

6

1311068C1

LENS

WARNING LIGHTS

1шт.

7

121606C1

ELECTRICAL GAUGE

OIL PRESSURE

1шт.

8

121607C1

METER

VOLT

1шт.

9

121604C1

ELECTRICAL GAUGE

FUEL

1шт.

10

121605C2

ELECTRICAL GAUGE

TEMPERATURE

1шт.

11

121611C1

SOCKET

ASSY, LAMP

8шт.

12

20627R1

BULB,C2F, #194, 14V

NO. 194

8шт.

13

1301223C3

COVER

RIGHT CONSOLE SWITCH SUPPORT

1шт.

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

1шт.

14

1301222C3

COVER

RIGHT CONSOLE

1шт.

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

1шт.

15

187982C1

PLUG

HEADER HEIGHT CONTROL

1шт.

15

183617C1

PLUG

R.H. CONSOLE

1шт.

15

472429C1

PLUG

Potentiometer Calibration

1шт.

16

1301238C1

PLUG

AUTO HEADER CONTROL BOX

1шт.

156664

SCREW,Cross Oval Hd, #6 - 32 x 5/8"

1шт.

17

1301226C2

BAR

RIGHT CONSOLE INSERT

1шт.

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

1шт.

18

187573C1

COVER

FUSE PANEL

1шт.

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

1шт.

19

1301227C1

PLATE

SPARE PART RIGHT CONSOLE INSERT

1шт.
