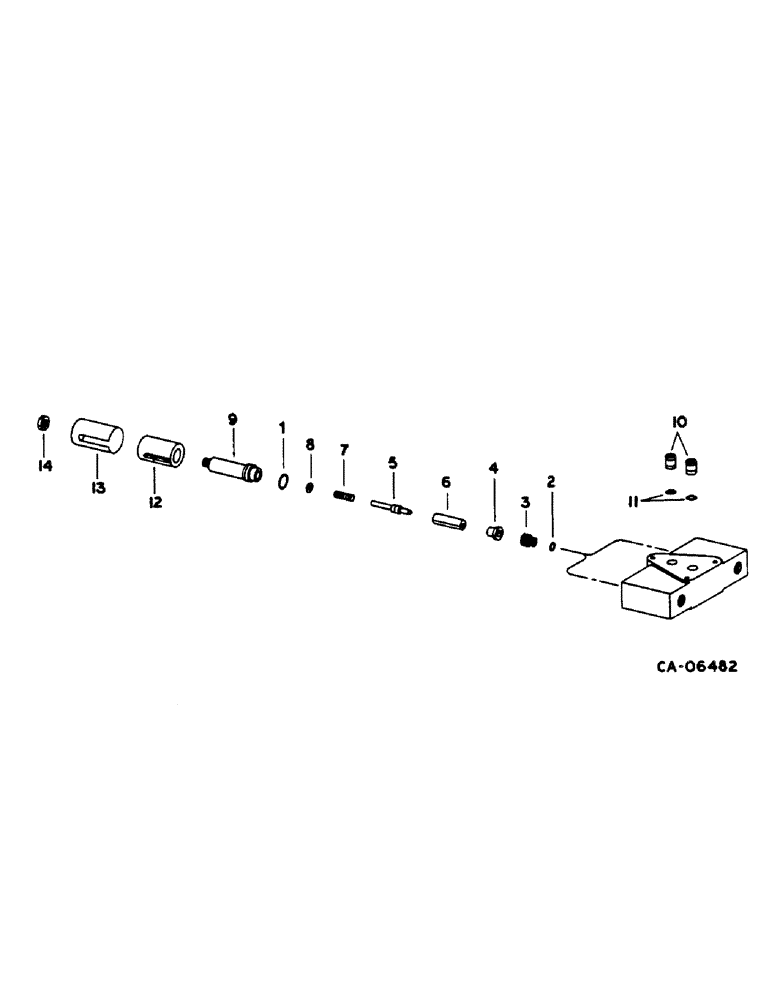

Запчасти Case IH 1460 (10-107) - DUAL VALVE ASSY, FOR FRENCH 825 HEADERS (07) - HYDRAULICS

1301901C91

VALVE

ASSY, DUAL, WITH 1 - 11

1шт.

1

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

CLASS 6

2шт.

2

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

CLASS 6

2шт.

3

1301625C1

ORIFICE

PISTON

2шт.

4

1301624C1

BUSHING

POLE

2шт.

5

1301647C1

POPPET

PIN, BI-DIRECT

2шт.

6

1301648C1

ARMATURE

BUSHING

2шт.

7

1301640C1

SPRING

2шт.

8

1301642C1

WASHER

2шт.

9

1301627C1

STUD

ASSY

2шт.

10

1301630C1

TUBE

THRU

2шт.

11

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

CLASS 6

4шт.

12

1301633C1

COIL

SWITCH

2шт.

13

1301632C1

CAP

COIL

2шт.

14

107825

NUT,Stamped, 1/2"-20

1/2 NF

2шт.
