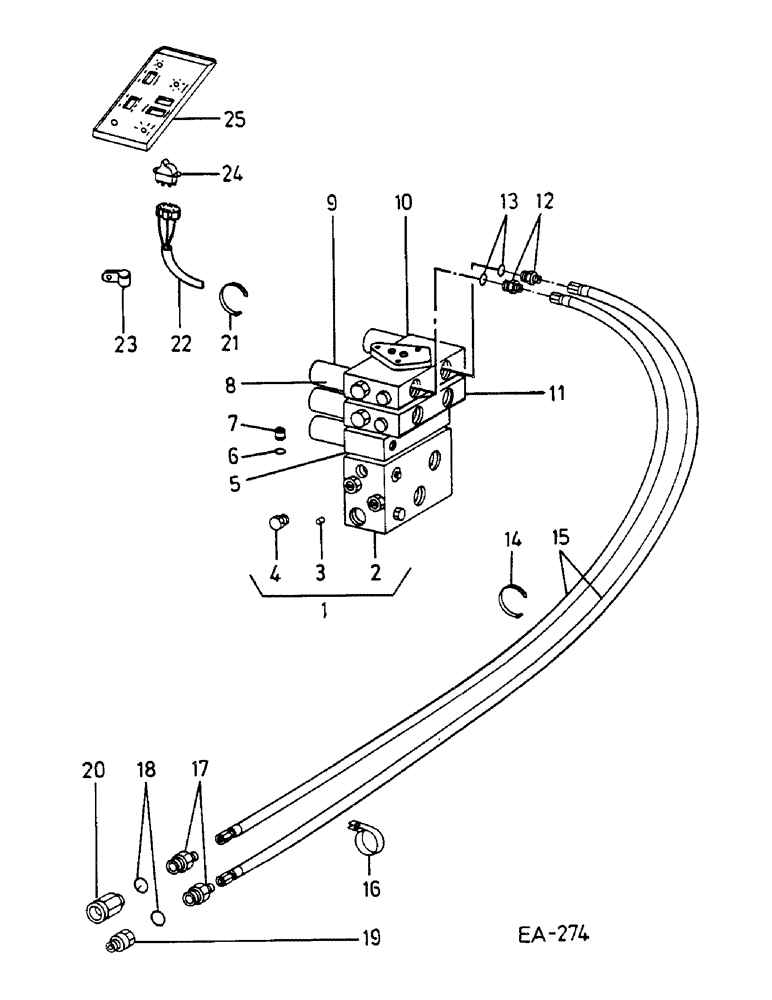

Запчасти Case IH 1460 (10-104) - REEL FORE AND AFT CONTROL, GERMAN REGULATIONS (07) - HYDRAULICS

1

1267171C91

VALVE ASSY, CONTROL, WITH 2 - 11

1шт.

2

1267033C91

VALVE

SEE HEADER VALVE ASSY

1шт.

3

1301637C1

ORIFICE

ORIFICE

2шт.

112432

NUT,#10-32, Brass

8шт.

4

1301634C1

VALVE

PLUG, CAP

2шт.

5

1301652C91

VALVE

ASSY, BI-DIRECTIONAL - SEE UNLOAD/SINGLE BI-DIRECTIONAL VALVE

1шт.

6

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

14шт.

7

1301630C1

TUBE

THRU-TUBE

6шт.

8

1301633C1

COIL

SWITCH

6шт.

9

1301632C1

CAP

COIL COVER

8шт.

107825

NUT,Stamped, 1/2"-20

1/2 NF C-Z

8шт.

18668R1

BOLT,Hex, 1/4" - 20 x 6", Gr 2

3шт.

493-41026

LOCK WASHER,Ext Tooth, 1/4"

3шт.

10

1267035C92

VALVE

ASSY, DOUBLE-PILOTED 3-POS SPOOL - SEE DOUBLE-PILOTED VALVE

1шт.

11

1267035C92

VALVE

ASSY, DOUBLE-PILOTED 3-POS SPOOL - SEE DOUBLE-PILOTED VALVE

1шт.

12

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

ADAPTER, 9/16-18 X 3/4-16

2шт.

13

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 HYD TUBE

2шт.

14

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP

3шт.

15

1301350C1

HOSE ASSY.

REEL

2шт.

16

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

1.875 DIA ZN

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

17

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 HYD SWIVEL

2шт.

18

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8 Hyd tube

2шт.

19

187562C1

QUICK MALE COUPLING

MALE

1шт.

20

187563C1

COUPLING, QUICK, FEM

FEMALE

1шт.

21

306132C1

CABLE TIE,14.5" L

CABLE STRAP HOSE TIE, 14 IN.

4шт.

22

1866277R1

ARMATURE

ASSY

1шт.

23

537024R1

CLIP

CABLE

1шт.

24

1301175C1

SWITCH

Fore and Aft

1шт.

159336

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

2шт.

25

1301940C3

COVER

CONSOLE EXTENSION

1шт.

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

4шт.
