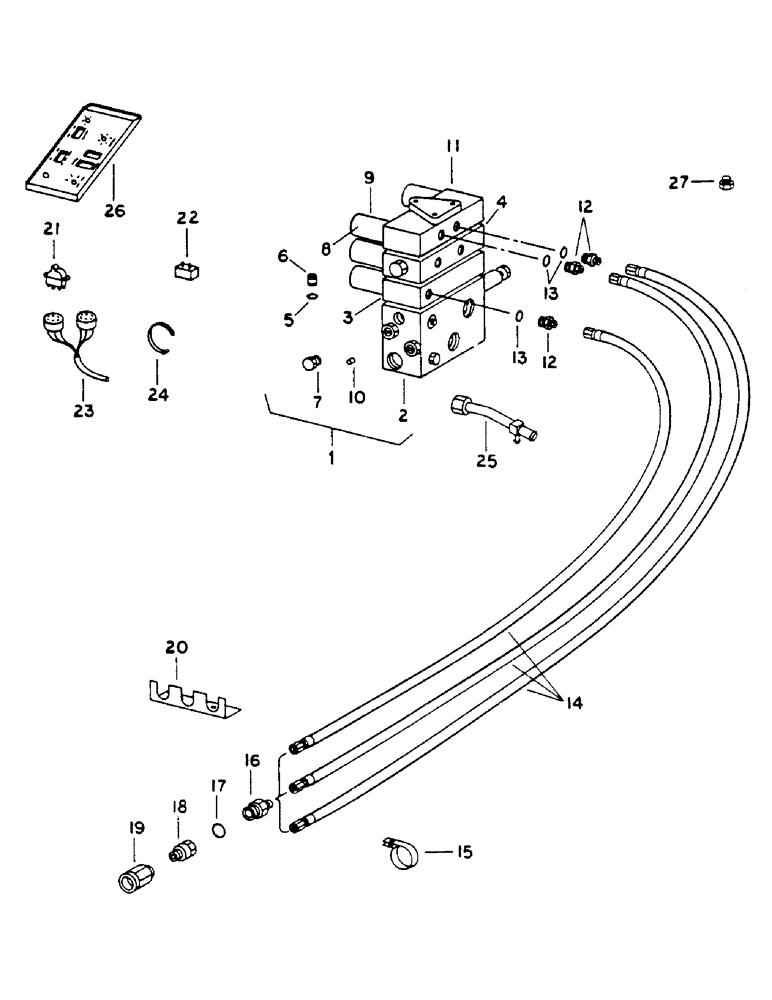

Запчасти Case IH 1460 (10-101) - REEL SPEED CONTROL, FOR FRENCH 825 HEADERS (07) - HYDRAULICS

1

1301936C91

VALVE

ASSY, CONTROL, WITH 2 - 11

1шт.

2

1301680C91

HYDRAULIC VALVE

ASSY, HEADER, SEE HEADER VALVE

1шт.

3

1301652C91

VALVE

ASSY, SEE UNLOAD/SINGLE BI-DIRECTIONAL VALVE

1шт.

4

1301650C91

VALVE

ASSY, FOR DOUBLE-PILOTED VALVE

1шт.

5

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

CLASS 6

14шт.

6

1301630C1

TUBE

THRU

6шт.

7

1301634C1

VALVE

CAP, PLUG

2шт.

8

1301633C1

COIL

SWITCH

6шт.

9

1301632C1

CAP

COIL

8шт.

107825

NUT,Stamped, 1/2"-20

1/2 NF CAD STAMPED

1шт.

18668R1

BOLT,Hex, 1/4" - 20 x 6", Gr 2

1шт.

493-41026

LOCK WASHER,Ext Tooth, 1/4"

1шт.

10

1301637C1

ORIFICE

ORIFICE

2шт.

112432

NUT,#10-32, Brass

1шт.

11

1301901C91

VALVE

SEE DUAL VALVE ASSY

1шт.

12

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 HYD SWIVEL

2шт.

13

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8 OD tube, class 6

2шт.

14

1301350C1

HOSE ASSY.

REEL

3шт.

15

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

1.875 DIA. ZNP COATED

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

16

935433R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

HYD 5/8 TO 3/8 SHT

3шт.

17

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE, CLASS 6

3шт.

18

3161090R1

COUPLING, BREAK AWAY

7/8-14 HYD

3шт.

19

3177270R1

COUPLING, BREAK AWAY

HYD QUICK-ATTACH

3шт.

20

1301916C1

ANGLE

COUPLING SUPPORT

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

21

1301920C1

SWITCH

ASSY, REEL

1шт.

159336

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

1шт.

22

928405C1

BREAKER

SPARE PART CIRCUIT

1шт.

120221

NUT,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW SCREW, NO. 10 X 1/2 ZNP R/HDS MACH

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

23

1301941C1

HARNESS

SPARE PART ASSY, REEL CONTROL

1шт.

24

702093C1

CABLE TIE

CABLE STRAP

3шт.

25

1310756C1

HYD TUBE,0.75, 0.5" OD, 198, 33 mm Length

HYD LIFT AND STR RETURN

1шт.

26

1301940C2

COVER

EXTENSION

1шт.

27

9410361

PLUG

3/4 C-Z THD O-RING BOSS

1шт.
