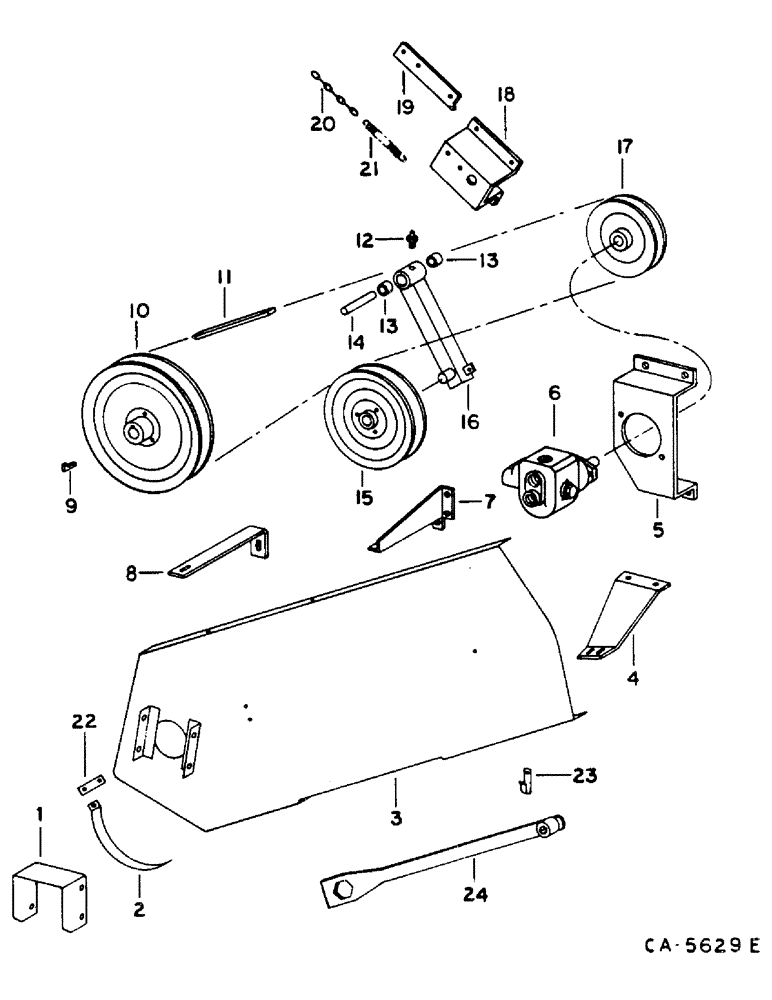

Запчасти Case IH 1460 (10-095) - HYDRAULIC REEL DRIVE, SEPARATOR PARTS (07) - HYDRAULICS

1

197646C1

SHIELD

CHANNEL, FEEDER JACKSHAFT L.H.

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1шт.

2

189470C1

SUPPORT

SHIELD UPPER L.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

3

189459C3

SHIELD

ASSY, PUMP DRIVE, FOR 47 IN. FEEDER

1шт.

3

189460C3

SHIELD

ASSY, PUMP DRIVE, FOR 54.5 IN. FEEDER

1шт.

4

189468C1

SUPPORT

SHIELD LOWER REAR, FOR 47 IN. FEEDER

1шт.

4

189469C1

SUPPORT

SHIELD LOWER REAR, FOR 54.5 IN. FEEDER

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

5

187698C1

SUPPORT

REEL DRIVE PUMP

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

6

187872C91

HYDRAULIC PUMP

ASSY, REEL DRIVE - ROSS - SEE REEL DRIVE PUMP

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

7

189466C1

SUPPORT

SHIELD UPPER REAR

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

8

189464C1

SUPPORT

SHIELD UPPER FRONT

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

120384

WASHER,1/2"

1шт.

495-11053

WASHER,1/2", SAE

1шт.

9

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 X 2 SQUARE-GIB HD TAPERED

1шт.

10

176562C2

PULLEY

FEEDER JACKSHAFT PUMP DRIVE - 13.5 IN. OD

1шт.

11

197411C1

V-BELT,132" L

Hydraulic reel drive, For 47 in. feeder

1шт.

11

197414C1

BELT

HYDRAULIC REEL DRIVE - 146 IN OC, FOR 54.5 IN. FEEDER

1шт.

12

87414

LUBE NIPPLE,1/4" - 28

1шт.

13

583346R1

BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L

TIGHTENER ARM

2шт.

14

198410C1

SPACER

TIGHTENER ARM

1шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

1шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

1шт.

21782R1

WASHER

.656 X 1.500 X .054

1шт.

591715R1

WASHER

1.031 X 1.500 X .054

1шт.

20704R1

WASHER

1.031 X 1.500 X .105

1шт.

15

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

BELT IDLER - 8.75 OD -

1шт.

18830R1

BOLT,Hex, 5/8"-11 x 5", G2

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

21471R1

WASHER

.656 X 1.000 X .105

1шт.

16

195528C91

LEVER

TIGHTENER, WITH 13

1шт.

17

187697C1

PULLEY ASSY.

PULLEY ASSY, pump driven, 7.13 in. OD x 3/4 in bore

1шт.

107327

SET SCREW,Sq Hd, 5/16"-18 x 1"

1шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

18

195526C1

SUPPORT

PIVOT ANCHOR

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1шт.

142619H

WASHER

.406 X .750 X .105

1шт.

19

195531C1

SUPPORT

SPRING ANCHOR

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

20

167570C1

CHAIN,203.2mm L

REEL DRIVE IDLER PULLEY ARM

1шт.

18655R1

BOLT,Hex, 1/4"-20 x 1", G2

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

120392

WASHER,1/4", SAE

1шт.

21

NLS

NO LONGER SERVICED

REEL DRIVE IDLER PULLEY ARM TIGHTENER

1шт.

22

NOT USED

1шт.

23

193332C1

CLIP

ROCKING WRENCH

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

24

184730C1

TOOL

ROCKING

1шт.

67055C1

SEAL KIT

ASSY, SEAL REPAIR, FOR 198381C92, NOT ILLUSTRATED

1шт.

187918C1

KIT

ASSY, SEAL REPAIR, FOR 198382C92, NOT ILLUSTRATED

1шт.
