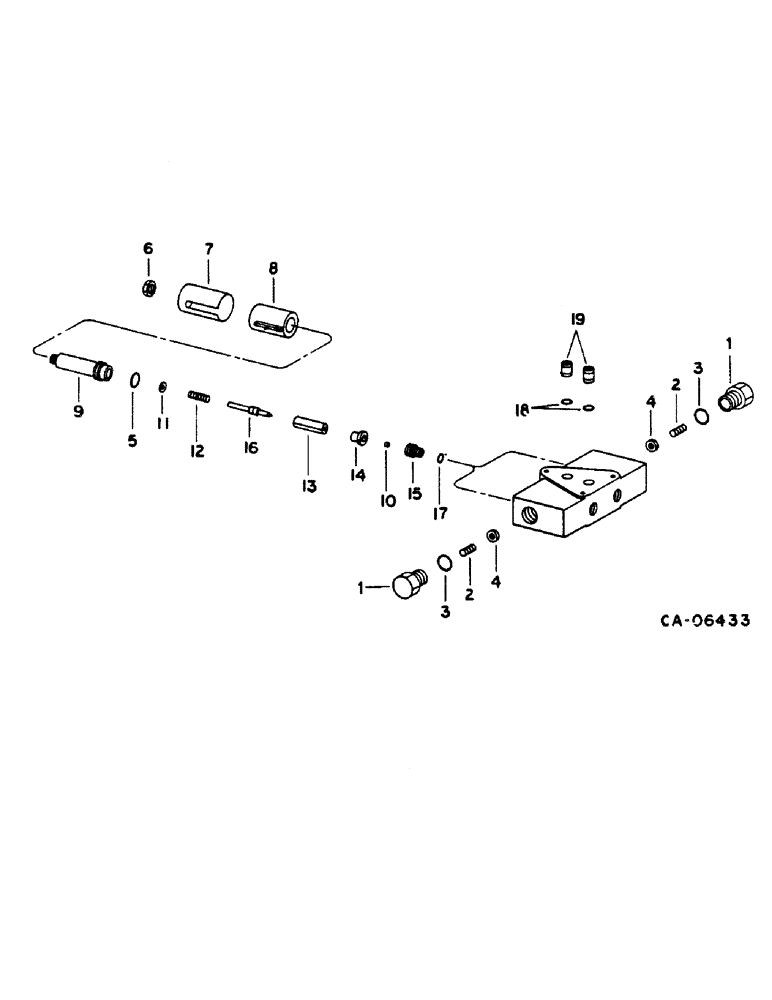

Запчасти Case IH 1460 (10-091) - DOUBLE-PILOTED VALVE (07) - HYDRAULICS

1301650C91

VALVE

DOUBLE-PILOTED, WITH 1 - 19

1шт.

1

1301686C1

CAP

PLUG, END

2шт.

2

1301689C1

SPRING

2шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE, CLASS 6

2шт.

4

1301687C1

WASHER

SPRING

1шт.

5

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

CLASS 6

2шт.

6

107825

NUT,Stamped, 1/2"-20

1/2 NF

2шт.

7

1301632C1

CAP

COIL

2шт.

8

1301633C1

COIL

SWITCH

2шт.

9

1301627C1

STUD

ASSY, N.C.

2шт.

10

1301637C1

ORIFICE

ORIFICE

2шт.

11

1301642C1

WASHER

2шт.

12

1301640C1

SPRING

2шт.

13

1301648C1

ARMATURE

BUSHING, N.C.

2шт.

14

1301624C1

BUSHING

N.C. POLE

2шт.

15

1301625C1

ORIFICE

PISTON

2шт.

16

1301647C1

POPPET

PIN, BI-DIRECT

2шт.

17

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

CLASS 6

2шт.

18

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

CLASS 6

4шт.

19

1301630C1

TUBE

THRU - TUBE

2шт.
