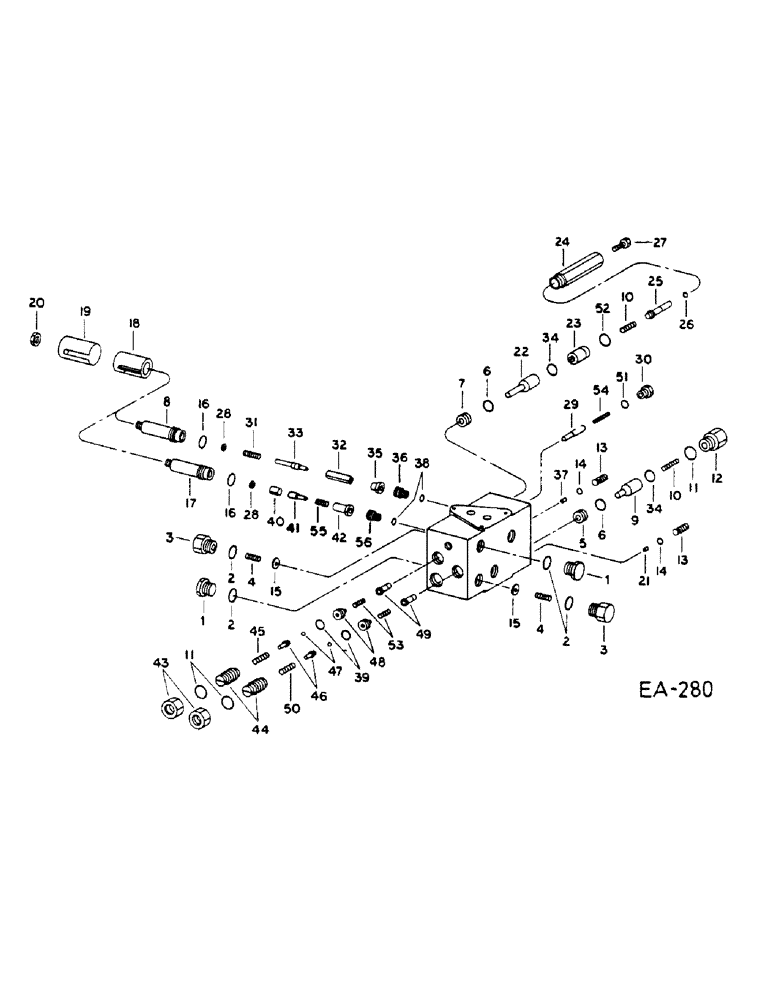

Запчасти Case IH 1460 (10-086) - HEADER VALVE (07) - HYDRAULICS

1267033C91

VALVE

ASSY, HEADER, WITH 1 - 55

1шт.

18669R1

BOLT,Hex, 1/4"-20 x 4-1/2", G2

3шт.

492-11025

LOCK WASHER,1/4"

3шт.

1

1301653C1

PLUG,3/4" - 16 x 9.50mm

PLUG, END

2шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2" OD TUBE, CLASS 6

4шт.

3

1272253C1

PLUG

END

2шт.

4

1272254C1

SPRING

2шт.

5

1301657C1

PISTON

FLOW

1шт.

6

392382R1

O-RING,0.551" ID x 0.07" Width

CLASS 6

2шт.

7

1301658C1

PISTON

FLOW

1шт.

8

1301627C1

STUD

ASSY, N.C.

1шт.

9

1301659C1

PIN

1шт.

10

1301660C1

SPRING

2шт.

11

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE, CLASS 6

4шт.

12

1301661C1

PLUG

HEX-HD END

1шт.

13

1301631C1

PLUG,5/16" - 24 x 14.80mm, Slotted, HT

STUD, SEAL

2шт.

14

529909R1

O-RING,1.78mm Thk x 2.54mm ID

2шт.

15

1301662C1

WASHER

DAMPING

2шт.

16

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

CLASS 6

2шт.

17

1301641C1

STUD

ASSY, N.O.

1шт.

18

1301730C1

VALVE

SWITCH

2шт.

19

1301632C1

CAP

COIL

2шт.

20

107825

NUT,Stamped, 1/2"-20

1/2 NF CAP STAMPED

1шт.

21

1301649C1

PLUG

PLUG

1шт.

22

1301664C1

VALVE

PIN, LOWER

1шт.

23

1301665C1

PISTON

1шт.

24

1301666C1

PLUG

ADJUSTING

1шт.

25

1301667C1

PIN

ADJUSTING

1шт.

26

21587R1

O-RING,0.07" Thk x 0.114" ID, -6, Cl 6, 90 Duro

CLASS 6

1шт.

27

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

28

1301642C1

WASHER

2шт.

29

1301668C1

PIN

CHECK VALVE

1шт.

30

1301669C1

PLUG

7/16-20

1шт.

31

1301640C1

SPRING

1шт.

32

1301648C1

ARMATURE

BUSHING, N.C.

1шт.

33

1301647C1

POPPET

PIN, BI-DIRECT

1шт.

34

574069R1

O-RING,0.750" ID x .062"

CLASS 5

2шт.

35

1301624C1

BUSHING

N.C. POLE

1шт.

36

1301625C1

ORIFICE

PISTON

1шт.

37

1301671C1

PLUG

ORIFICE

1шт.

38

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

CLASS 6

2шт.

39

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

CLASS 6

2шт.

40

1301643C1

VALVE

PIN, N.O. ARMATURE

1шт.

41

1301644C1

PIN

N.O.Order 1301644C2. Also Order BUSHING 1301646C2 and SLEEVE 1301641C2 for initial replacement

1шт.

42

1301646C1

BUSHING

N.O. POLE

1шт.

43

1301674C1

NUT

1 IN. HEX

2шт.

44

1301675C1

PLUG,7/8" - 14 - 11/16" - 16 x 33.30mm

STUD

1шт.

45

1272403C1

SPRING

1шт.

46

1301677C1

PIN

SPRING GUIDE

2шт.

47

17008R1

BALL,1/4" Dia

Grade 25 Metal

2шт.

48

1301654C1

NUT

2шт.

49

1301678C1

VALVE

PISTON, RELIEF

2шт.

50

1301636C1

SPRING

1шт.

51

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 OD tube, Class 6

1шт.

52

370920R1

O-RING,1/2" ID

CLASS 5

1шт.

53

1301679C1

SPRING

2шт.

54

1301729C1

SPRING

1шт.

55

1301821C1

SPRING

1шт.

56

1301689R1

PISTON

1шт.
