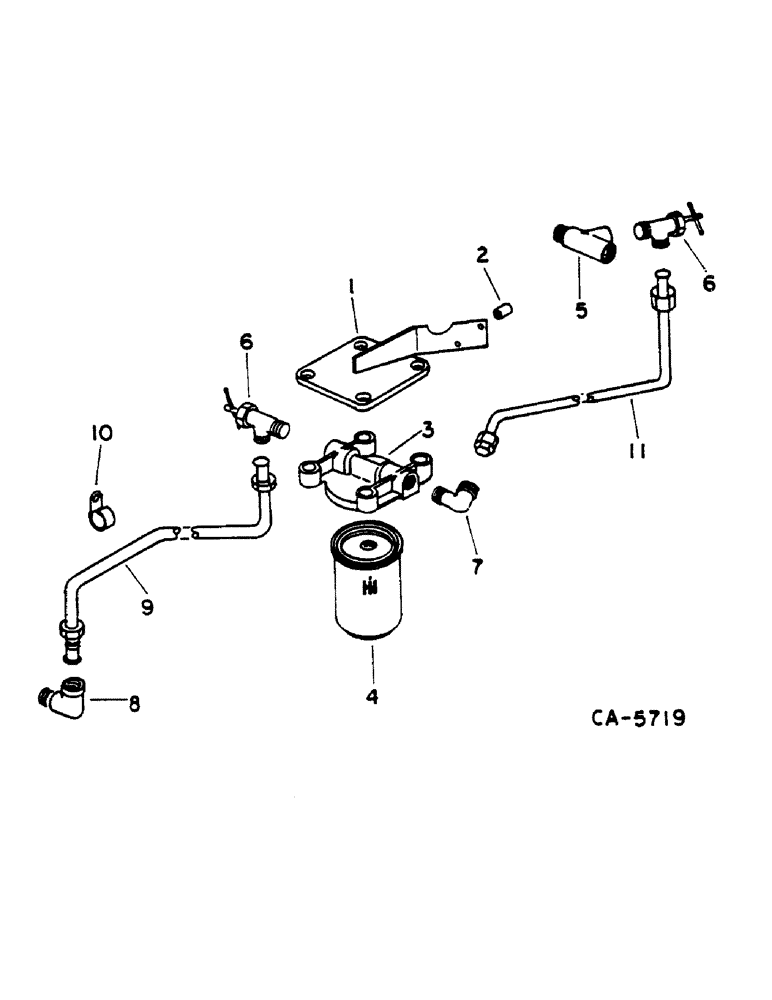

Запчасти Case IH 1460 (06-013) - COOLANT FILTER - CONDITIONER Cooling

121897C92

FILTER

COOLANT CONDITIONER - CONSISTS OF ITEMS 1 - 11

1шт.

115224

ADAPTER

1шт.

308576R1

CLAMP

1шт.

675384C1

GASKET

1шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

WITH INSTRUCTIONS

1шт.

1

121881C1

BRACKET

ASSY, WATER FILTER

1шт.

2

SA2172

SPACER,3/8" Pipe x 1/2"

3/8 X 1/2 STD PIPE

2шт.

24844R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 8

1шт.

3

427446C1

HEAD

BASE, WATER FILTER

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

4

690171C1

FILTER

ELEMENT, WATER FILTER

1шт.

5

444150

TEE,3/8"-18 NPTF Fem x 3/8"-18 NPTF Male Run

3/8 BRASS AUTO PIPE

1шт.

6

121894C1

FAUCET,3/8" - 18 NPTF x 5/8" - 24

VALVE, SHUTOFF

2шт.

7

606618C1

ELBOW UNION

Union Elbow WATER FILTER BASE

1шт.

8

121750C1

ELBOW

OIL COOLER

1шт.

9

TUBE, WATER INLET - 23.1 IN. OF 3/8 OD TUBING - FROM BULK LENGTH - PLUS ONE NUT 137399, ONE NUT 265205R1 AND ONE SLEEVE 265204R1

1шт.

995063R1

TUBE

BULK LENGTH 50 FT

1шт.

10

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

WATER INLET TUBE HOLD-DOWN

1шт.

11

TUBE, WATER OUTLET - 14 IN. OF 3/8 OD TUBING - FROM BULK LENGTH - PLUS TWO NUTS 265205R1 AND TWO SLEEVES 265204R1

1шт.

995063R1

TUBE

BULK LENGTH 50 FT

1шт.
