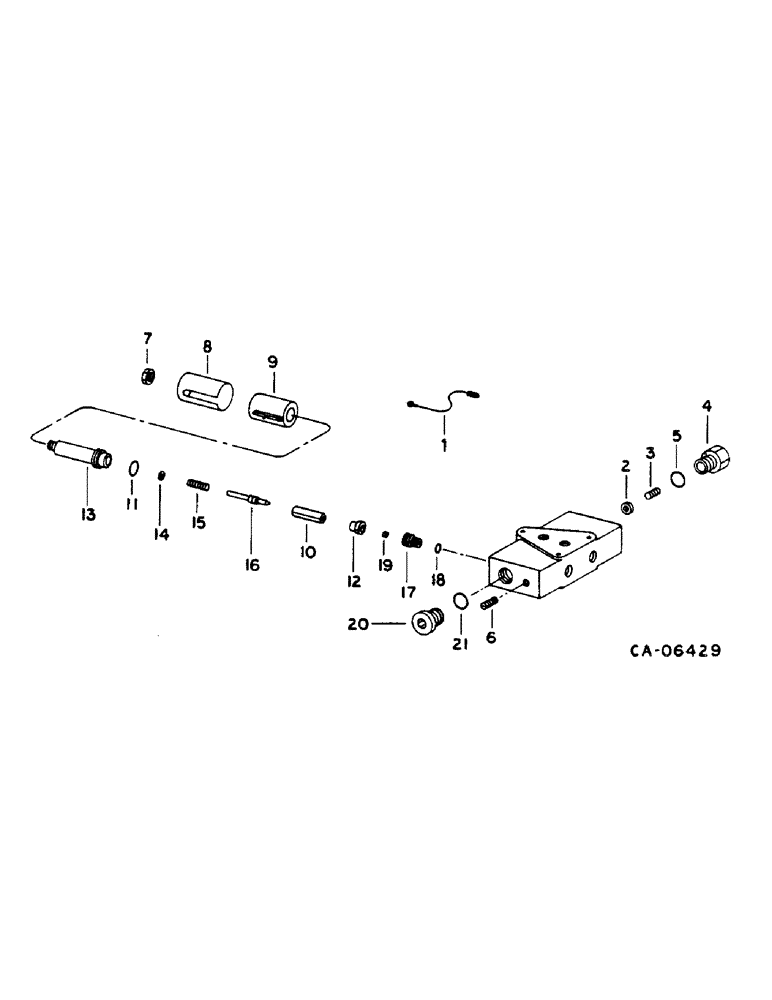

Запчасти Case IH 1460 (10-082) - FEEDER AND SEPARATOR CLUTCH VALVE (07) - HYDRAULICS

1301171C91

VALVE

ASSY, FEEDER AND SEPARATOR CLUTCH, WITH 1 - 21

2шт.

120614

NUT,Hex, #10 - 32

1шт.

18658R1

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 2

1шт.

18660R1

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 2

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1шт.

1

187736C1

CABLE

ASSY, CLUTCH VALVE

1шт.

120614

NUT,Hex, #10 - 32

1шт.

2

1301687C1

WASHER

SPRING

1шт.

3

1301728C1

SPRING

1шт.

4

1301686C1

CAP

PLUG, END

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE, CLASS 6

2шт.

6

1301631C1

PLUG,5/16" - 24 x 14.80mm, Slotted, HT

STUD, SEAL

1шт.

7

107825

NUT,Stamped, 1/2"-20

1/2 NF CAD STAMPED

1шт.

8

1301632C1

CAP

OIL

1шт.

9

1301730C1

VALVE

SWITCH

1шт.

10

1301648C1

ARMATURE

BUSHING

1шт.

11

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

CLASS 6

1шт.

12

1301624C1

BUSHING

1шт.

13

1301627C1

STUD

ASSY

1шт.

14

1301642C1

WASHER

1шт.

15

1301729C1

SPRING

1шт.

16

1301647C1

POPPET

PIN

1шт.

17

1301625C1

ORIFICE

PISTON

1шт.

18

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

CLASS 6

1шт.

19

1301649C1

PLUG

PLUG

1шт.

20

1301688C1

PLUG

7/8-14

1шт.

21

529909R1

O-RING,1.78mm Thk x 2.54mm ID

1шт.
