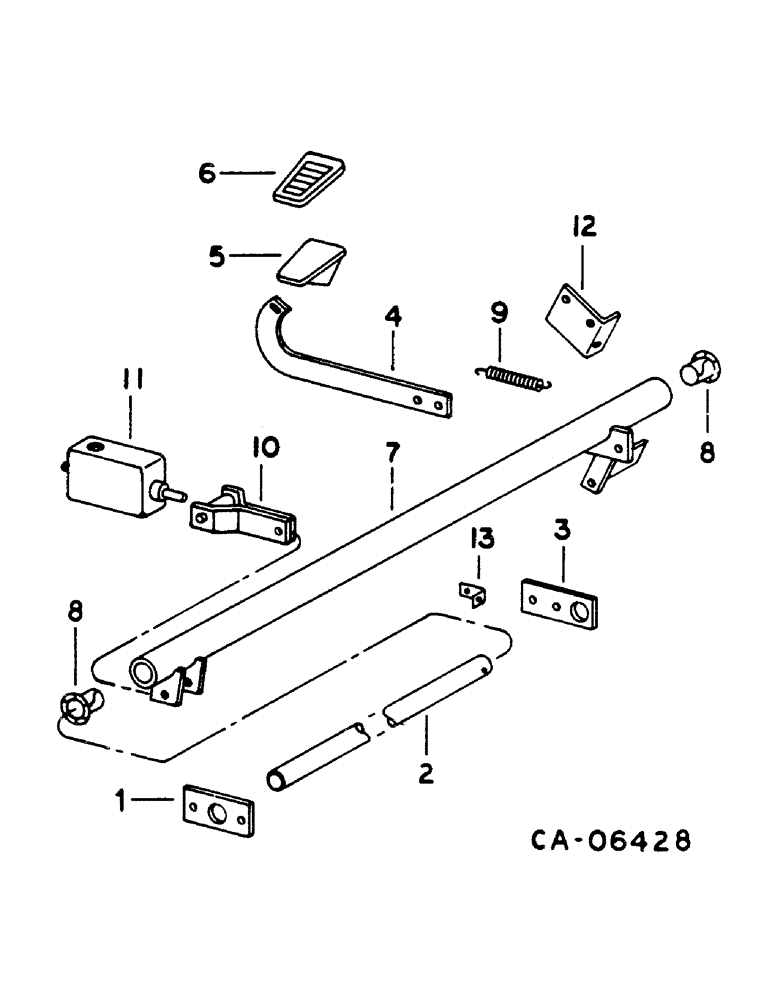

Запчасти Case IH 1460 (10-078) - FOOT-N-INCH AND CONTROLS (07) - HYDRAULICS

165901C1

BAR

BRAKE PIVOT SHAFT SUPPORT

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

2

1302148C1

SHAFT

FOOT-N-INCH CLUTCH LEVER PIVOT

1шт.

591715R1

WASHER

1.031 X 1.500 X .054

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

1шт.

3

1302147C1

BAR

FOOT-N-INCH PIVOT SHAFT SUPPORT

1шт.

4

184166C2

SUPPORT ASSY.

HYDROSTATIC DR. FOOT-N-INCH PEDAL

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

2шт.

5

163425C1

PEDAL

FOOT-N-INCH

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

6

863426R1

PAD

FOOT-N-INCH PEDAL

1шт.

7

195563C1

TUBE ASSY.

SPARE PART FOOT-N-INCH PEDAL

1шт.

8

277523R1

BUSHING

PEDAL PIVOT TUBE

2шт.

591715R1

WASHER

1.031 X 1.500 X .054

1шт.

9

633503R1

SPRING

FOOT-N-INCH PEDAL RETURN

1шт.

10

165504C91

YOKE

UNIVERSAL JOINT YOKE ASSY, FOOT-N-INCH VALVE

1шт.

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

5/16 X .940 COTTER

1шт.

121222

COTTER PIN,3/32" x 3/4"

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

1шт.

11

398705R91

VALVE

ASSY, FOOT-N-INCH

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

12

195582C1

BRACKET

SAFETY STARTING SWITCH

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

13

187628C1

ANGLE

PIVOT SHAFT RETAINER

1шт.
