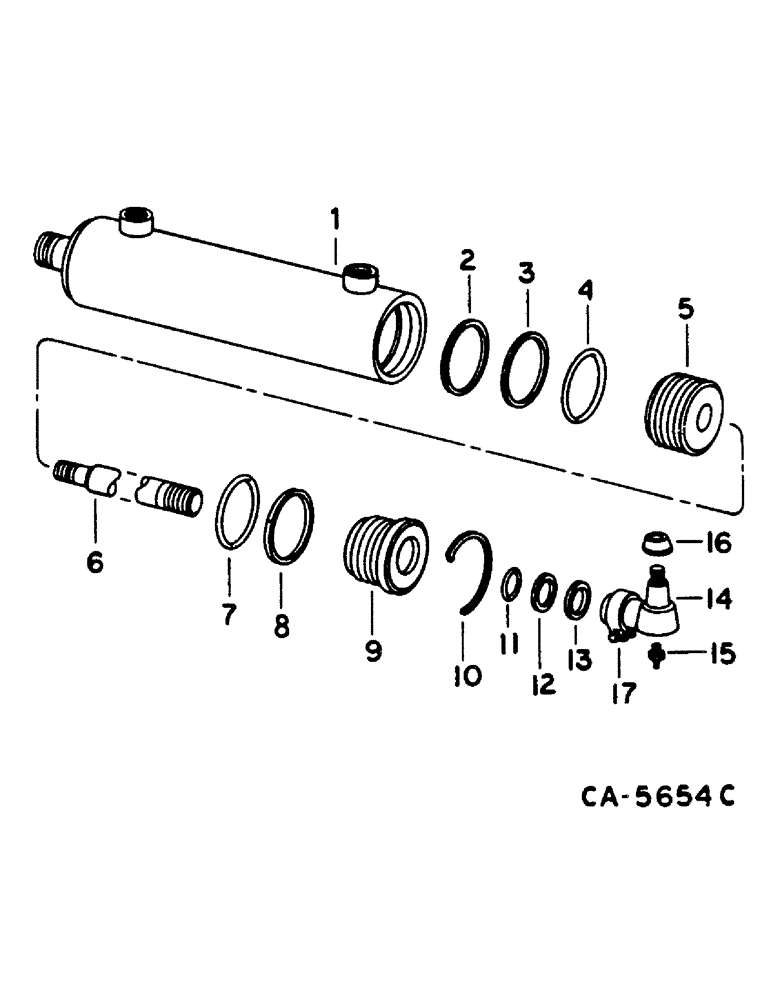

Запчасти Case IH 1460 (10-075) - STEERING CYLINDER, WITH POWER GUIDE WHEELS (07) - HYDRAULICS

127913C91

CYLINDER

STEERING, WITH 1 - 13

1шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

1шт.

1

BODY ASSY, STEERING CYLINDER - NOT AVAILABLE SEPARATELY, ORDER 127913C91

1шт.

2

127932C1

BEARING WASHER

BEARING PISTON

2шт.

3

127931C1

RING

RETAINING

1шт.

4

364108R1

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

1шт.

5

127921C1

PISTON

CYLINDER

1шт.

6

127920C1

ROD

PISTON

1шт.

9411658

LOCK NUT,5/8"-11, GC

1шт.

7

702283R1

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

1шт.

8

127933C1

BACK-UP RING

BACKUP

1шт.

9

127919C1

GLAND

HEAD, FRONT

1шт.

10

127922C1

RING

RETAINING

1шт.

11

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

CLASS 6

1шт.

12

532854R1

SEAL,25.17mm ID x 31.52mm OD x 1.32mm Thk

BACKUP

1шт.

13

532856R91

SEALING RING

ROD WIPER

1шт.

14

186140C91

BALL JOINT

SOCKET ASSY, STEERING CYLINDER END

2шт.

427646

SLOTTED NUT,7/8"-14, G5

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

1шт.

15

109461

LUBE NIPPLE,1/8"-27 x .66 lg

1шт.

16

110373R1

DUST CAP

STEERING CYLINDER END SOCKET

2шт.

17

446308C91

CLAMP

ASSY, SOCKET END

1шт.

73661R91

KIT ASSY, REPAIR, NOT ILLUSTRATED, CONSISTS OF 2 - 4, 7, 8, 10 - 13

1шт.
