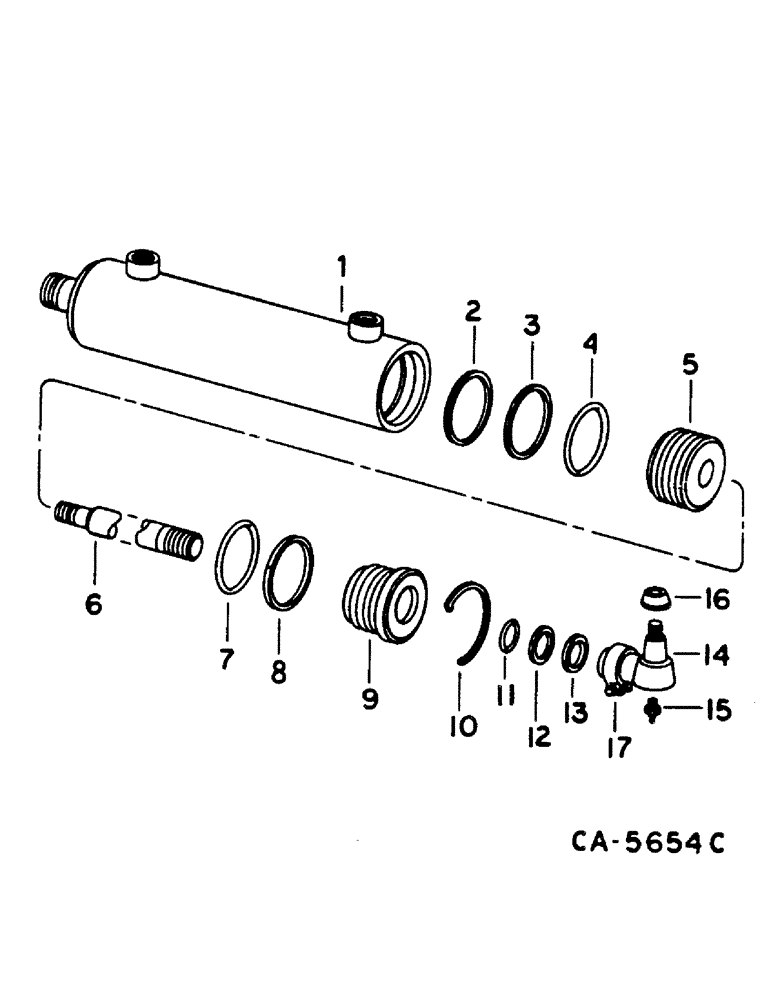

Запчасти Case IH 1460 (10-072) - STEERING CYLINDER, WITHOUT POWER GUIDE WHEELS (07) - HYDRAULICS

548247R91

CYLINDER ASSY.,Double Acting, 22.35mm Rod, 228.6mm Stroke

STEERING, WITH 1 - 13

1шт.

1

BODY ASSY, STEERING CYLINDER - NOT AVAILABLE SEPARATELY, ORDER 549247R91

1шт.

2

548253R1

BEARING WASHER

BEARING PISTON

2шт.

3

377220R2

RING

RETAINING

1шт.

4

327085R1

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

2шт.

5

548252R1

PISTON

CYLINDER

1шт.

6

548251R1

ROD

PISTON

1шт.

232-4609

LOCK NUT,9/16"-18, GC

1шт.

7

461173R1

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

1шт.

8

381293R1

BACK-UP RING,2.015" ID x 0.047" Width

BACKUP

1шт.

9

548354R1

HEAD

FRONT

1шт.

10

461180R1

RETAINER

RETAINING

1шт.

11

23907R1

O-RING,-212, 90 Duro, .859" ID x .139" Thk

1шт.

12

548355R1

WASHER

BACKUP

1шт.

13

548358R91

WIPER SEAL

ROD WIPER

1шт.

14

186796C1

BALL JOINT

SOCKET ASSY, STEERING CYLINDER END, FOR GRAIN AND CORN, WITH 17

2шт.

425-1310

SLOTTED NUT,5/8"-18, G5

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

1шт.

575812R1

WASHER

.719 X 1.500 X .105 PLN

1шт.

14

181335C91

BALL JOINT

SOCKET ASSY, STEERING CYLINDER END, FOR RICE, WITH 17

1шт.

427646

SLOTTED NUT,7/8"-14, G5

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

1шт.

15

219-8

LUBE NIPPLE,1/4" - 28 NPTF

Used with 186796C1

1шт.

15

109461

LUBE NIPPLE,1/8"-27 x .66 lg

Used with 181335C91

1шт.

16

382562R1

SEAL

STEERING CYLINDER END SOCKET - USED WITH 186796C1

2шт.

16

110373R1

DUST CAP

STEERING CYLINDER END SOCKET - USED WITH 181335C91

2шт.

17

384371R1

CLAMP

ASSY, SOCKET ASSY - USED WITH 186796C1

2шт.

17

443608C91

CLAMP ASSY, SOCKET END - USED WITH 181335C91

2шт.

180152

BOLT,Hex, 7/16" - 14 x 1 7/8", Gr 5

1шт.

231-4117

LOCK NUT,7/16"-14, GB

7/16 CAD P/T LOCK TYPE 5

1шт.

548357R91

SEAL KIT

ASSY, REPAIR - NOT ILLUSTRATED - CONSISTS OF 2, 3, 4, 7, 8, 10, 13

1шт.
