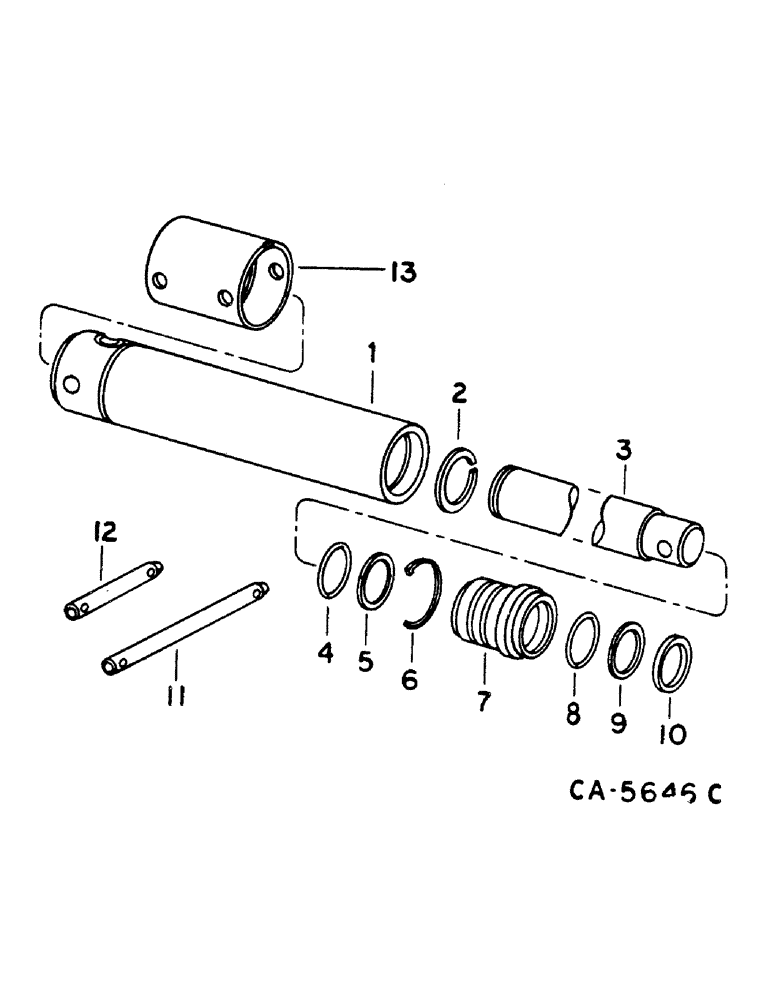

Запчасти Case IH 1460 (10-067) - HEADER LIFT CYLINDER (07) - HYDRAULICS

127779C92

CYLINDER

WITH 1 - 10

3шт.

127779C94R

REMAN-HYD CYLINDER

1460 INTERNATIONAL HARVESTER COMBINE (EUROPE) (1/77-12/84), Reman for New PN 127779C92

3шт.

127779C94C

CORE-HYD CYLINDER

Return Number

3шт.

1

127781C1

BODY

ASSY

1шт.

2

545710R1

STOP

PISTON ROD

1шт.

3

127780C2

ROD

CYLINDER PISTON

1шт.

4

327110R1

O-RING,-144, 90 Duro, 2.487" ID x .103" Thk

1шт.

5

545712R1

WASHER

BACKUP

1шт.

6

545714R1

RETAINING WIRE

RETAINING

1шт.

7

545711R1

HEAD

FRONT

1шт.

8

381082R1

O-RING,2.225" ID x 0.21" Width

1шт.

9

381083R2

BACK-UP RING

WASHER, O-RING BACKUP

1шт.

10

545713R1

WIPER SEAL

ROD

1шт.

11

195822C1

PIN,25.4mm OD x 228.6mm L

HEADER LIFT CYLINDER - USED WITH 3RD CYLINDER

2шт.

12

573762R1

PIN,25.4mm OD x 130.97mm L

HEADER LIFT CYLINDER - 2 USED W/THIRD CYLINDER, 4 USED W/OUT THIRD CYLINDER

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

PIN, COTTER

1шт.

13

NOT USED

1шт.

545715R91

KIT

CYLINDER SERVICE - NOT ILLUSTRATED, CONSISTS OF 2, 4, 5, 6, 8, 9, 10

1шт.
