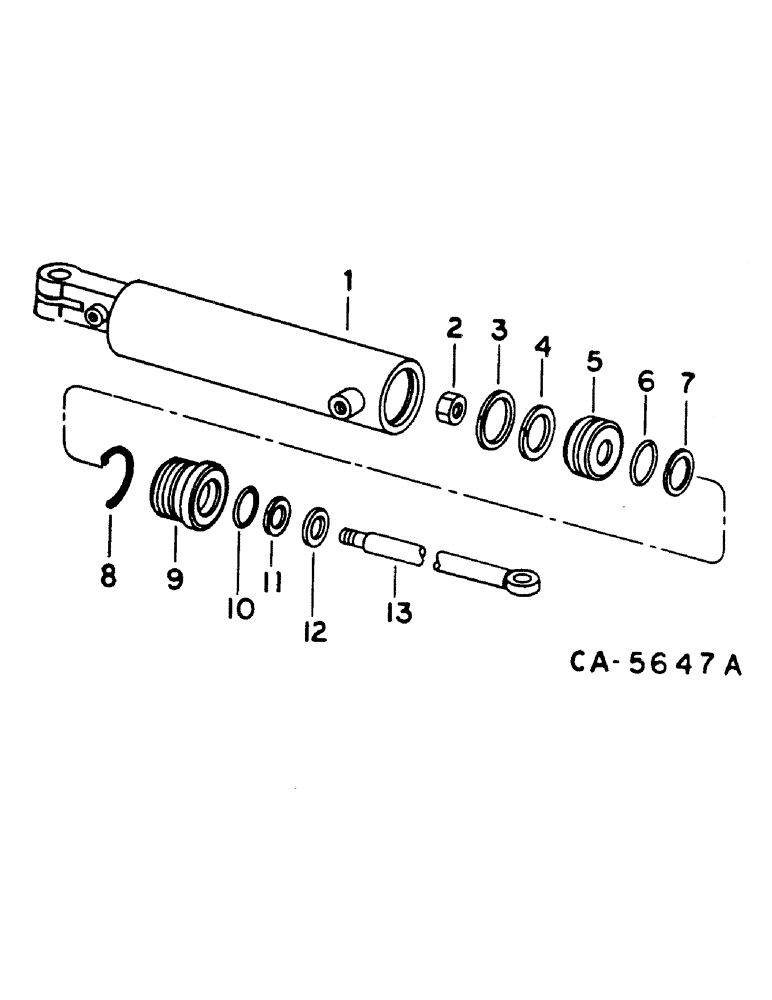

Запчасти Case IH 1460 (10-065) - GRAIN TANK UNLOADER SWING CYLINDER (07) - HYDRAULICS

113960C92

CYLINDER ASSY.

WITH 1 - 13

1шт.

137185

COTTER PIN,1/8" x 1"

1шт.

22754R1

CLEVIS PIN,5/8" x 1.844"

1шт.

28196R1

SPLIT PIN/SAFETY PIN

5/8 X 2.250 CLEVIS

1шт.

1

532776R2

BODY

ASSY

1шт.

2

9413215

LOCK NUT,7/16"-20, GC

1шт.

3

532529R1

O-RING

SQUARE

1шт.

4

362796R1

O-RING,0.924" ID x 0.103" Width

1шт.

5

532528R1

PISTON

1шт.

6

346959R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

7

108998C1

WASHER

BACKUP

1шт.

8

532530R2

RETAINER

FRONT HEAD

1шт.

9

108996C1

CYLINDER HEAD

FRONT

1шт.

10

391912R1

O-RING,0.737" ID x 0.103" Width

1шт.

11

108997C1

WASHER

BACKUP

1шт.

12

108999C1

WIPER SEAL

ROD

1шт.

13

113961C1

ROD ASSY.

1шт.

62240C91

GASKET KIT

CYLINDER SERVICE - NOT ILLUSTRATED - CONSISTS OF 3, 4, 6, 7, 8, 10, 11, 12

1шт.
