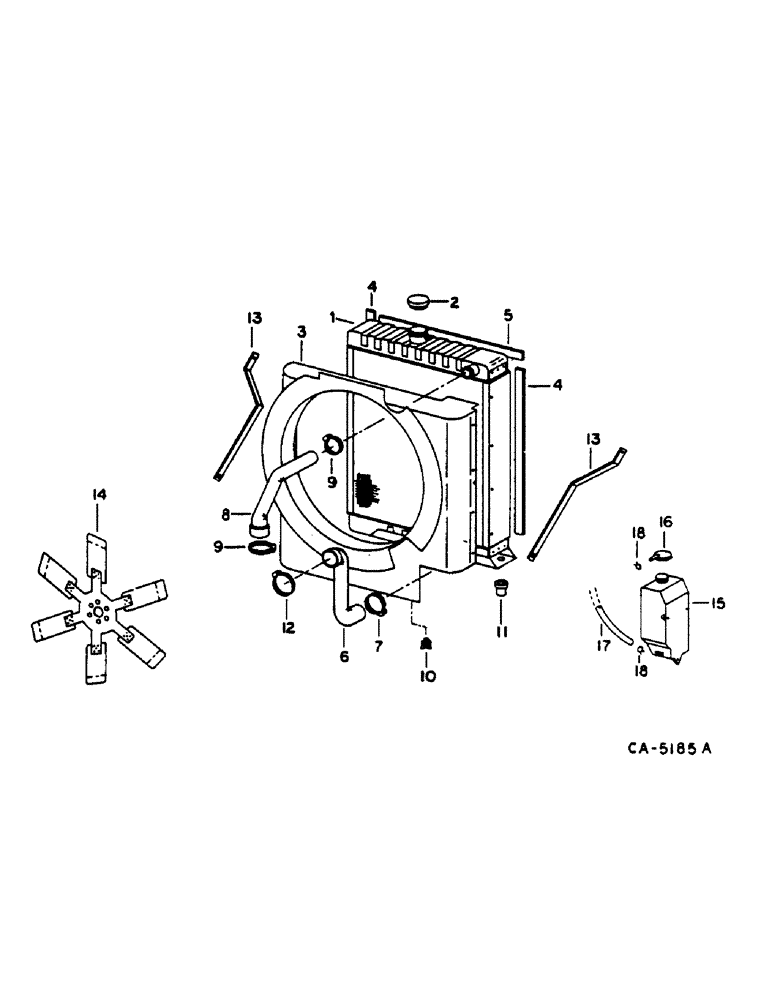

Запчасти Case IH 1460 (06-011) - RADIATOR AND CONNECTIONS Cooling

1

121722C3

RADIATOR

WITH 2

1шт.

2

121951C1

CAP

RADIATOR PRESSURE

1шт.

3

1312824C1

SHROUD

FAN

1шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

5шт.

80681

LOCK WASHER,5/16"

5шт.

134238R1

WASHER

.344 X 1.000 X .054

5шт.

4

400143C1

STRIP, RADIATOR SIDE

2шт.

5

STRIP, RADIATOR TOP AND BOTTOM 34.5 INCH - FROM BULK LENGTH

2шт.

73222C1

STRIP

BULK LENGTH

1шт.

6

121759C1

RADIATOR HOSE,2.00" ID, 2.62" ID x 5.10", SAE 20R4 CLASS D-2

Outlet

1шт.

7

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

RADIATOR OUTLET RAD END

1шт.

8

548216R1

RADIATOR HOSE,50.80 mm ID, 57.15 mm ID x 371.60 mm, SAE 20R4, GRADE 1A

Inlet

1шт.

9

279026R91

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

RADIATOR HOSE

2шт.

10

86982771

VALVE

RADIATOR DRAIN 1/4 PT

1шт.

11

400159R1

BUMPER

ABSORBER, SHOCK RADIATOR

2шт.

18699R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 1/2", Gr 2

2шт.

231-1447

NUT,7/16"-14, GB

2шт.

20609R1

WASHER

.469 X 1.750 X .105

2шт.

12

122323R91

CLAMP,#52, 2.81/3.75 Type F Worm

RADIATOR OUTLET ENGINE END

1шт.

13

124984C1

BRACE, RADIATOR

2шт.

134238R1

WASHER

.344 X 1.000 X .054

3шт.

175997

SELF-TAP SCREW,Hex Hd, 5/16" x 1 1/4"

3шт.

80681

LOCK WASHER,5/16"

3шт.

14

121789C1

FAN

BLADE

1шт.

20649R1

BOLT (SPREADER),Hex, 3/8" - 16 x 2 1/4", Gr 8

3шт.

103321

LOCK WASHER,3/8"

3шт.

15

437703C1

TANK

RESERVOIR

1шт.

931828R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

934173R1

WASHER

7 X 14 X 12 MM

3шт.

933833R1

LOCK WASHER,M6

3шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

3шт.

16

437702C1

CAP

RESERVOIR

1шт.

17

121983C1

RADIATOR HOSE,0.31" ID x 43.00", ASTM D 2000

Rad to Reservoir & Overflow

2шт.

18

244713R1

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

HOSE

3шт.
