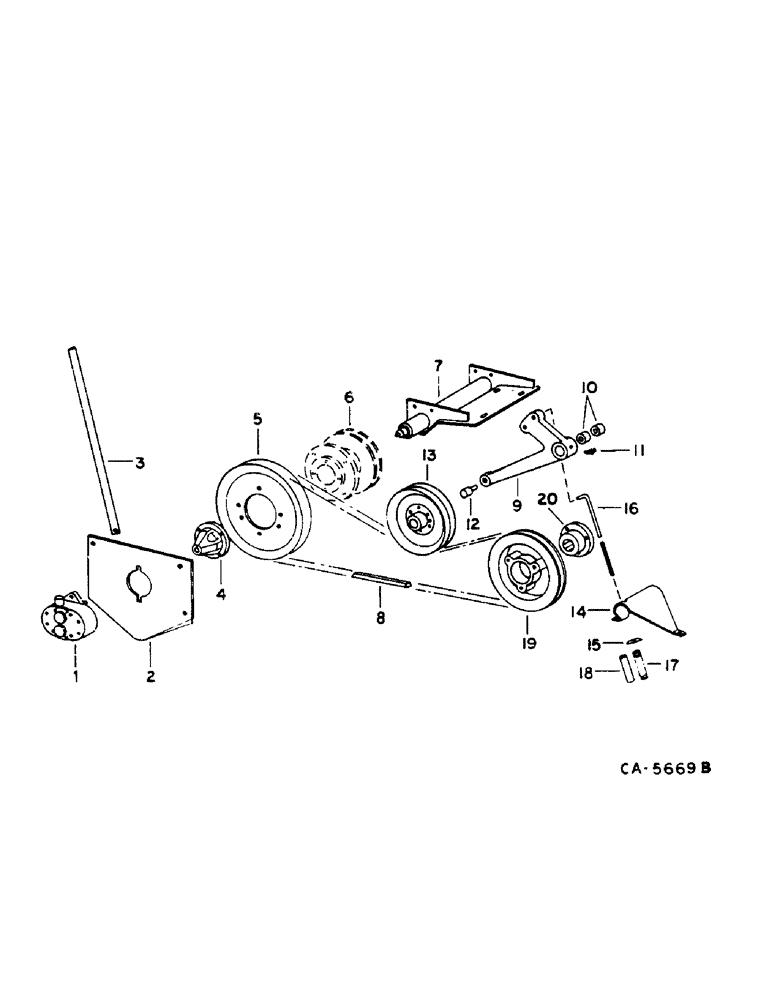

Запчасти Case IH 1460 (10-057) - AUXILIARY HYDRAULIC PUMP (07) - HYDRAULICS

1

1272257C91

PUMP, HYDRAULIC

ASSY

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

20729R1

NUT,3/8"-16, G5, LH

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

632019R1

LOCK WASHER,3/8"

LH

1шт.

3175366R1

WASHER, 13 X 22 X 1.5 MM

1шт.

2

192958C2

BAR

HYDRAULIC PUMP

1шт.

3

192957C1

ANGLE

HYDRAULIC PUMP PLATE

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

2шт.

9411655

LOCK NUT,3/8"-16, GB

2шт.

4

191207C1

HUB

HYDRAULIC PUMP

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

4шт.

5

192943C1

PULLEY ASSY.

AUXILIARY SHAFT DRIVEN - 11.65 IN. OD

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

4шт.

6

192945C91

PULLEY ASSY.

AUXILIARY PUMP DRIVE - SEE GRAIN TANK UNLOADER DRIVE

1шт.

7

181338C1

SUPPORT ASSY.

AUXILIARY DRIVE REAR - FOR COMBINES W/STRAW CHOPPER

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

4шт.

9413971

LOCK NUT,3/4"-10, GB

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

5шт.

120384

WASHER,1/2"

6шт.

495-11053

WASHER,1/2", SAE

6шт.

21211R1

WASHER

.781 X 1.5 X .164 ZND

1шт.

8

191288C2

BELT,0.879" W x 96.11" L

Auxiliary pump drive, OC

1шт.

9

192946C92

LEVER ASSY.

LEVER ASSY, AUXILIARY PUMP DRIVE, WITH 10

1шт.

10

188068C1

BUSHING,25.4mm ID x 28.57mm OD x 19.05mm L

AUXILIARY PUMP DRIVE LEVER

2шт.

11

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 45 DEG. SELF-TAP LUB

1шт.

12

274844R91

BEARING ASSY,30mm OD x 73.66mm L

FLAT IDLER PULLEY

1шт.

13

192865C1

PULLEY

FLAT IDLER - 8 IN. OD -

1шт.

14

192092C1

SUPPORT

AUXILIARY PUMP DRIVE PIVOT

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

15

194652C1

PIVOT

BAR, AUXILIARY DRIVE

1шт.

16

182752C1

ROD

AUXILIARY DRIVE JACKSHAFT

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

18481R1

COTTER PIN,3/16" x 1"

1шт.

495-11053

WASHER,1/2", SAE

1шт.

460908R1

WASHER

.531 X 1.500 X .105

1шт.

17

SPRING, AUXILIARY DRIVE ROD - USED WITH SPACER 1-1/8 OD X 5, ORDER 1300023C1

1шт.

17

V368

SPRING

AUXILIARY DRIVE ROD - USED WITH 181119C1

1шт.

18

SPACER, AUXILIARY DRIVE ROD - 1-1/8 OD X 5 - ORDER 1300023C1

1шт.

18

181119C1

SPACER

AUXILIARY DRIVE ROD - 1-3/16 OD X 5.83

1шт.

19

196481C1

PULLEY

AUXILIARY PUMP DRIVE - 9.25 IN. OD

1шт.

168392R1

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

1шт.

495-11053

WASHER,1/2", SAE

1шт.

20

196482C1

HUB

PUMP DRIVE PULLEY

1шт.

1272638C1

GASKET KIT

SEAL REPAIR - FOR 1272257C91, NOT ILLUSTRATED, CONSISTS OF 2 O-RING 1/16 X 3 ID, 1 PLATE WEAR, 1 SEAL BRG, 1 O-RING MOULDED, 1 GASKET, 1 SEAL SHAFT

1шт.

168318C93

SEAL KIT

SEAL REPAIR - FOR 195704C91 - NOT ILLUSTRATED

1шт.
