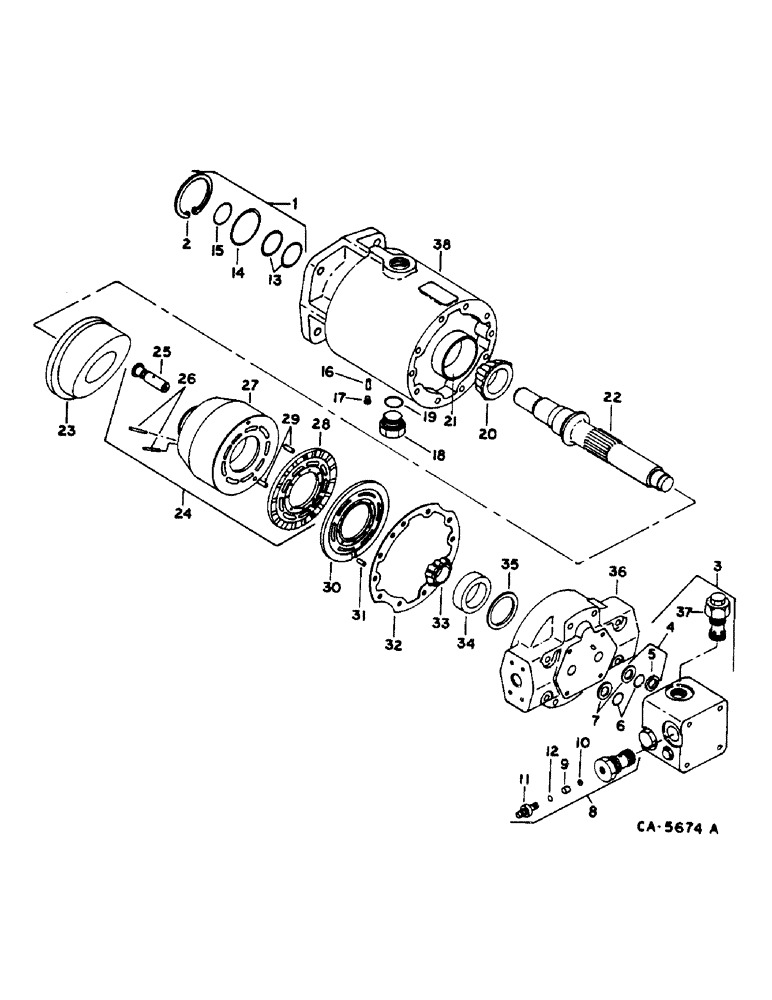

Запчасти Case IH 1460 (10-053) - HYDROSTATIC MOTOR, EATON (07) - HYDRAULICS

1252346C91

MOTOR, HYDRAULIC

ASSY, HYDROSTATIC - RENEWED

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1шт.

120384

WASHER,1/2"

1шт.

283856C1

WASHER

17/32 X 1 X .188

1шт.

166506C1

GASKET,0.81mm Thk

HYD MOTOR

1шт.

1

142518C91

KIT

SEAL ASSY, SHAFT, WITH 2, 13 - 15

1шт.

2

606937C1

SNAP RING,2.835", Int, #281

1шт.

3

145554C91

KIT

BLOCK ASSY, RELIEF VALVE, WITH 4

1шт.

186285

BOLT,Hex, 3/8" - 16 x 4", Gr 5

1шт.

4

140747C91

SEAL KIT

VALVE BLOCK SEAL, WITH 5 - 7

1шт.

5

133753C1

O-RING,7/16" ID x 3/4" OD x 1/16"

3/4 X 7/8 X 1/16 SQ

1шт.

6

384943R1

O-RING,0.739" ID x 0.07" Width

1шт.

7

631458C1

RING

BACK-UP

1шт.

8

402626R94

VALVE

ASSY, RELIEF, WITH 9 - 12

2шт.

9

402629R1

BUSHING

BALL GUIDE

2шт.

10

17008R1

BALL,1/4" Dia

Chrome Steel

2шт.

11

402630R2

CONNECTOR, ELEC

CONNECTOR 37 DEG. FLARED TUBE SPECIAL

2шт.

12

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 OD tube

2шт.

13

22278R1

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

SHAFT SEAL

2шт.

14

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

SHAFT SEAL

1шт.

15

24472R1

O-RING,0.07" Thk x 1.334" ID, -28, Cl 6, 90 Duro

SHAFT SEAL

1шт.

16

20027R1

PIN,5/16" x 1 1/4"

1шт.

17

444688

PLUG

1/8-27 SOL-HD PIPE

1шт.

18

9410361

PLUG

1-1/16-12 STR THD O-RING BOSS

1шт.

19

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD TUBE

1шт.

20

636826R91

BEARING ASSY,44.45 mm ID x 51 mm OD x 25.4 mm

ASSY, OUTPUT SHAFT CONE

1шт.

21

130503H

BEARING CUP

OUTPUT SHAFT

1шт.

22

142390C1

SHAFT

OUTPUT

1шт.

23

142391C1

HOUSING

FIXED SWASH PLATE

1шт.

24

142392C91

KIT

ROTATING GROUP, WITH 25 - 29

1шт.

25

142393C1

PISTON ASSY.

CYLINDER BLOCK

9шт.

26

142394C1

PIN

PRE-LOAD DOWEL

6шт.

27

BLOCK, - NOT AVAILABLE SEPARATELY, ORDER 142392C91

1шт.

28

142395C1

PLATE

BEARING

1шт.

29

140754C1

PIN

BEARING PLATE DOWEL

2шт.

30

142396C1

PLATE

MOTOR VALVE

1шт.

31

140754C1

PIN

VALVE PLATE DOWEL

1шт.

32

142397C1

GASKET

END COVER

1шт.

33

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

ASSY, OUTPUT SHAFT

1шт.

34

530741R1

BEARING CUP

OUTPUT SHAFT CUP

1шт.

35

142398C91

SHIM KIT

1шт.

36

MOTOR, END COVER - NOT AVAILABLE SEPARATELY, ORDER 1252346C91

1шт.

179866

BOLT,Hex, 7/16" - 14 x 2", Gr 5

1шт.

179870

BOLT,Hex, 7/16" - 14 x 3", Gr 5

1шт.

37

149761C1

VALVE PRESSURE RELIE

ASSY, LOW

1шт.

38

HOUSING, HYD MOTOR - NOT SERVICED SEPARATELY, ORDER 1252346C91

1шт.

393885R91

GASKET KIT

RELIEF VALVE SEAL - NOT ILLUSTRATED - CONSISTS OF

1шт.

393887R1

BACK-UP RING

2шт.

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

145559C91

KIT

KIT, SHUTTLE VALVE - NOT ILLUSTRATED, CONSISTS OF

1шт.

145560C1

SPRING

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.
