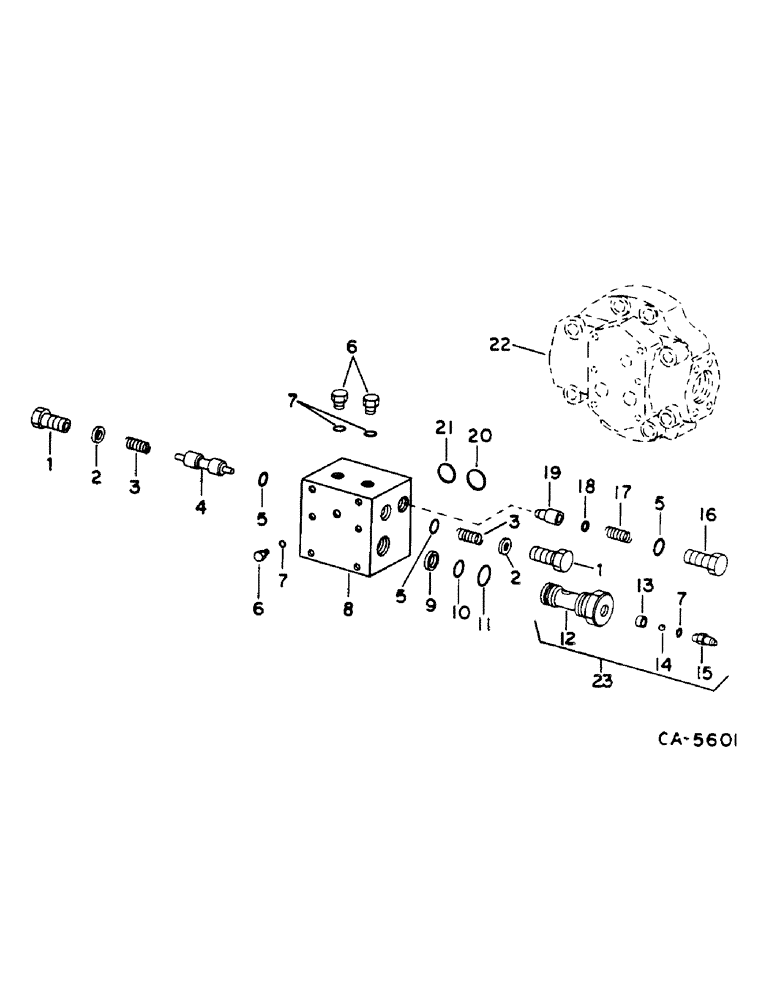

Запчасти Case IH 1460 (10-050) - HYDROSTATIC MOTOR, MANIFOLD VALVE, SUNDSTRAND (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
394171R91
VALVE
ASSY, HYD MOTOR, WITH 1 - 8, 16 - 19
1шт.
186271
SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5
1шт.
394880R1
WASHER
11/32 X 19/32
1шт.
1
63432C1
PLUG
MANIFOLD SHUTTLE VALVE
2шт.
2
394177R1
WASHER
MANIFOLD SHUTTLE VALVE
2шт.
3
394176R1
SPRING
MANIFOLD SHUTTLE VALVE
2шт.
4
SPOOL, SHUTTLE VALVE - NOT AVAILABLE SEPARATELY, ORDER529426R1
1шт.
5
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
3шт.
6
9410356
PLUG
7/16-20 STR-THD
3шт.
7
369751R1
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4шт.
8
529426R1
HOUSING
MANIFOLD VALVE, WITH 4
1шт.
186271
SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5
1шт.
394880R1
WASHER
11/32 X 19/32
1шт.
9
393887R1
BACK-UP RING
RELIEF VALVE
4шт.
10
20947R1
O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro
2шт.
11
287459R1
O-RING, 1-3/16 X 1-7/32 X 7/16
2шт.
12
BODY - NOT AVAILABLE SEPARATELY, ORDER 402626R94
1шт.
13
402629R1
BUSHING
BALL GUIDE
1шт.
14
17008R1
BALL,1/4" Dia
Chrome Steel
1шт.
15
402630R2
CONNECTOR, ELEC
CONNECTOR 37 DEG. FLARED TUBE SPECIAL
1шт.
16
394173R1
PLUG
RELIEF VALVE
1шт.
17
531174R1
SPRING
MANIFOLD RELIEF VALVE
1шт.
18
394279R91
KIT
RELIEF VALVE SHIM
1шт.
19
531175R1
PISTON
MANIFOLD RELIEF VALVE
1шт.
20
383219R1
O-RING,0.924" ID x 0.103" Width
2шт.
21
610547C1
O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro
1шт.
22
COVER, MOTOR BEARING REAR END - SEE HYDROSTATIC MOTOR HOUSING
1шт.
23
402626R94
VALVE
ASSY, HIGH PRESSURE RELIEF, WITH 7, 12 - 15
2шт.
393884R91
KIT
PACKAGE, MANIFOLD VALVE HOUSING SEAL, NOT ILLUSTRATED - CONSISTS OF
1шт.
610547C1
O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro
1шт.
383219C1
O-RING
2шт.
393886R1
WASHER
WASHER
2шт.
393885R91
GASKET KIT
RELIEF VALVE SEAL - NOT ILLUSTRATED, CONSISTS OF
1шт.
20947R1
O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro
2шт.
297459R1
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
2шт.
393887R1
BACK-UP RING
4шт.
Выбрано товаров: 36
