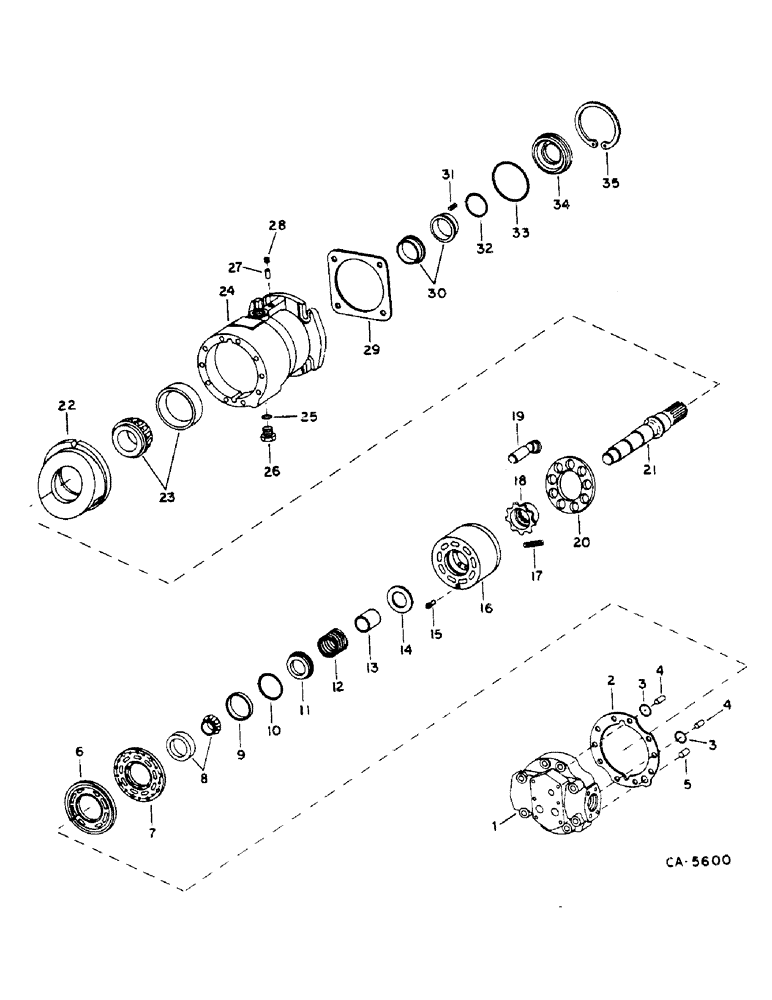

Запчасти Case IH 1460 (10-047) - HYDROSTATIC MOTOR, MOTOR HOUSING, SUNDSTRAND (07) - HYDRAULICS

1252348C91

REMAN-HYD MOTOR

ASSY, HYDROSTATIC - RENEWED

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1шт.

120384

WASHER,1/2"

1шт.

283856C1

WASHER

17/32 X 1 X .188

1шт.

1

530734R1

COVER

MOTOR BEARING REAR END

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

1шт.

179871

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

1шт.

61252H

WASHER

.469 X .750 X .105 PLN

1шт.

2

405147R1

GASKET

MOTOR REAR END

1шт.

3

393886R1

WASHER

WASHER, MANIFOLD VALVE

2шт.

4

21061R1

DOWEL,3/8" x 1/2"

2шт.

5

394825R1

DOWEL

PIN, 5/16 X 5/8 END COVER TO VALVE PLATE

1шт.

6

530773R1

PLATE

CYLINDER BLOCK VALVE

1шт.

7

405141R1

PLATE

CYLINDER BLOCK BEARING

1шт.

8

405152R91

BEARING ASSY,1.1875" ID x 2.5317" OD x 0.8468, 0.6563"

ASSY, DRIVE SHAFT REAR PILOT

1шт.

9

405140R1

RING

CYLINDER BEARING PLATE PILOT

1шт.

10

558383R1

SNAP RING,#250, 2.606, Int, Spiral

DRIVE SHAFT REAR SPRING

1шт.

11

405139R1

RETAINER

DRIVE SHAFT REAR SPRING

1шт.

12

71887C1

SPRING

CYLINDER BLOCK

1шт.

13

405137R1

GUIDE

BUSHING, DRIVE SHAFT REAR SPRING

1шт.

14

405136R1

SEAT

PISTON CYLINDER BLOCK SPRING

1шт.

15

527636R1

PIN

CYLINDER BEARING PLATE

1шт.

16

BLOCK ASSY, PISTON CYLINDER - NOT AVAILABLE SEPARATELY, ORDER 133790C91

1шт.

17

67822C1

SPRING

SLIPPER RETAINER

6шт.

18

405132R1

GUIDE

CYLINDER BLOCK PISTON

1шт.

19

71605C1

PISTON ASSY.

CYLINDER BLOCK

9шт.

20

405133R1

RETAINER

CYLINDER BLOCK PISTON

1шт.

21

405149R1

SHAFT

HYD MOTOR DRIVE

1шт.

22

405150R1

PLATE

SWASH HYD MOTOR

1шт.

23

405186R91

BEARING ASSY,2" ID x 4" OD x 1.378"

ASSY, DRIVE SHAFT FRONT

1шт.

24

405148R1

HOUSING

HYD MOTOR

1шт.

444687

PLUG,Hex Soc, 1/8"-27

Pipe

1шт.

25

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

9410360

PLUG

7/8-14 C-Z STR-THD

1шт.

27

20020R1

DOWEL,5/16" x 1"

1шт.

28

405128R1

SHIM

MOTOR SHAFT REAR

1шт.

29

166506C1

GASKET,0.81mm Thk

HYDROSTATIC GROUND MOTOR

1шт.

30

SEAL, - NOT AVAILABLE SEPARATELY, ORDER 405125R92

1шт.

31

393882R1

SPRING

DRIVE SHAFT FACE

8шт.

32

26079R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2шт.

33

610411C1

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

34

405126R1

RETAINER

ASSY, DRIVE SHAFT

1шт.

35

22325R1

SNAP RING,3.875", Int, #387

DRIVE SHAFT FACE

1шт.

405125R92

PACKAGE

O-RING AND SEAL - CONSISTS OF

1шт.

SEAL

1шт.

26079R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2шт.

610411C1

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

393882R1

SPRING

8шт.

133790C91

KIT

CYLINDER BLOCK - NOT ILLUSTRATED, CONSISTS OF 7, 9 - 20

1шт.
