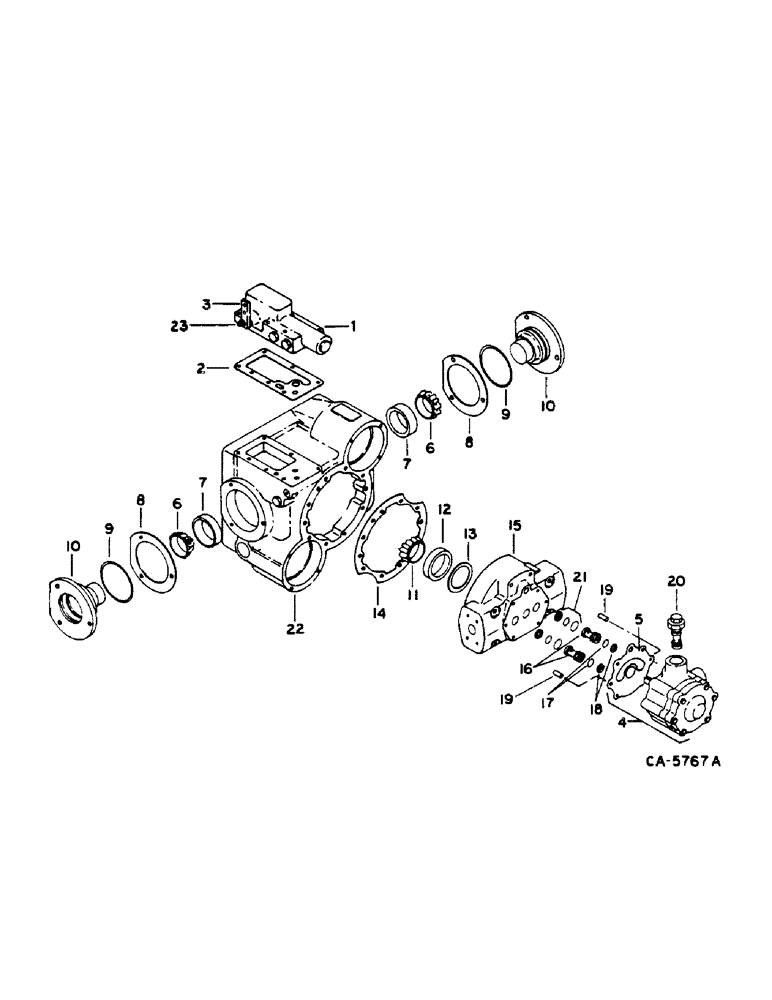

Запчасти Case IH 1460 (10-044) - HYDRAULIC PUMP, VALVE BLOCK, EATON (07) - HYDRAULICS

1

133755C91

HYDRAULIC VALVE

ASSY, CONTROL KIT, WITH 2

1шт.

179824

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

2

133756C1

GASKET

CONTROL VALVE

1шт.

3

404782R1

HANDLE

CONTROL VALVE SHAFT

1шт.

493-41026

LOCK WASHER,Ext Tooth, 1/4"

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

4

133761C91

PUMP

ASSY, R.H. CHARGE, WITH 5

1шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

1шт.

5

133760C1

GASKET

CHARGE PUMP

1шт.

6

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

ASSY, TRUNNION

1шт.

7

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

TRUNNION

1шт.

8

142386C91

SHIM KIT

TRUNNION

1шт.

9

707220R1

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

TRUNNION

2шт.

10

TRUNNION, - NOT AVAILABLE SEPARATELY, ORDER 1252352C92

1шт.

179857

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

7/16 X 7/8 PLN TYPE 5

1шт.

11

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

ASSY, INPUT SHAFT

1шт.

12

530741R1

BEARING CUP

INPUT SHAFT CUP

1шт.

13

142398C91

SHIM KIT

1шт.

14

142397C1

GASKET

END COVER

1шт.

15

PUMP, END COVER - NOT AVAILABLE SEPARATELY, ORDER 1252352C92

1шт.

179866

BOLT,Hex, 7/16" - 14 x 2", Gr 5

1шт.

179870

BOLT,Hex, 7/16" - 14 x 3", Gr 5

1шт.

16

140769C1

CHECK VALVE

ASSY

2шт.

17

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

CHECK VALVE

2шт.

18

140770C1

RING

CHECK VALVE BACK-UP

2шт.

19

140754C1

PIN

CHARGE PUMP DOWEL

2шт.

20

140771C1

VALVE

ASSY, LOW PRESSURE RELIEF

1шт.

21

393885R91

GASKET KIT

RELIEF VALVE SEAL - CONSISTS OF

1шт.

393887R1

BACK-UP RING

1шт.

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

22

HOUSING, VARIABLE - NOT AVAILABLE SEPARATELY, ORDER 1252352C92

1шт.

23

1255148C1

SHAFT ASSY.

CONTROL VALVE

1шт.
