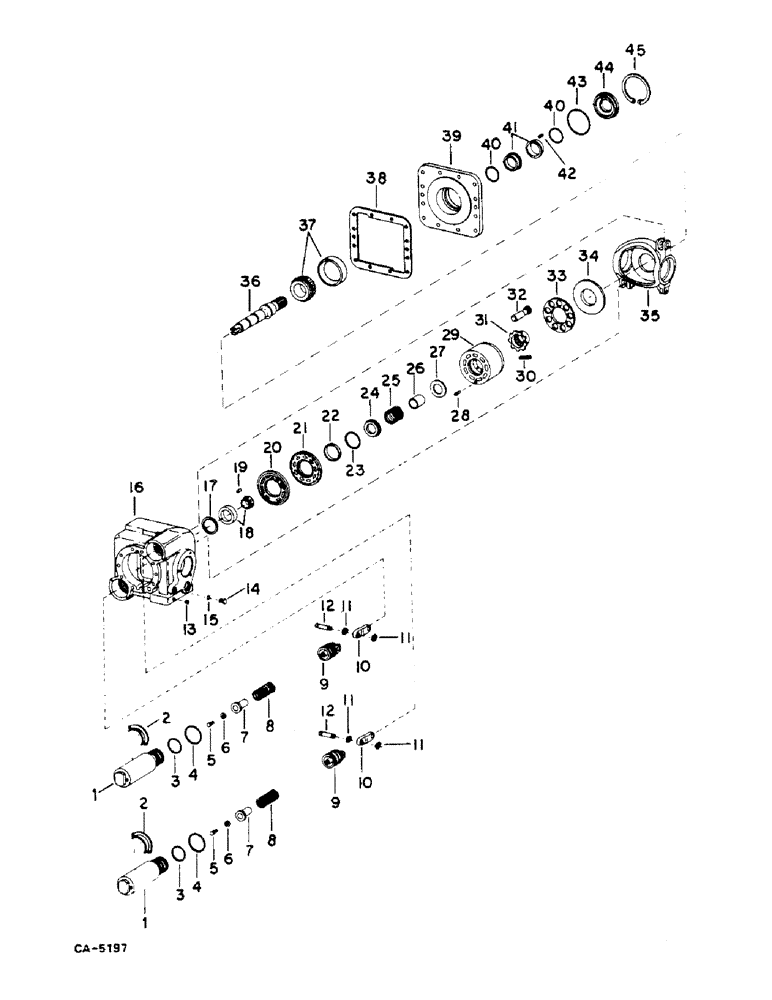

Запчасти Case IH 1460 (10-031) - HYDROSTATIC PUMP, CYLINDER BLOCK, SUNDSTRAND (07) - HYDRAULICS

1252341C91

REMAN-HYD PUMP

ASSY, HYDROSTATIC TRANSMISSION - RENEWED

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1шт.

120384

WASHER,1/2"

1шт.

283856C1

WASHER

17/32 X 1 X .188

1шт.

1

403074R2

SLEEVE

SERVO PISTON

2шт.

2

394213R1

RETAINER

SERVO PISTON

2шт.

536291R1

SCREW

10-24 X 3/ SELF-TAP

1шт.

3

21005R1

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

2шт.

4

327110R1

O-RING,-144, 90 Duro, 2.487" ID x .103" Thk

2шт.

5

537762R1

SCREW

1/4-20 X 5/8 HEX HD CAP, NYLON COATED

2шт.

6

394207R1

WASHER

SERVO PISTON BOLT

2шт.

7

394211R1

GUIDE

SERVO PISTON SPRING

2шт.

8

549726R1

SPRING

SERVO PISTON

2шт.

9

537761R1

PISTON

SERVO

2шт.

10

549724R1

LINK

SERVO PISTON

2шт.

11

267805R1

RING

SERVO PISTON LINK

8шт.

12

65797C1

PIN

SERVO PISTON LINE

4шт.

13

444687

PLUG,Hex Soc, 1/8"-27

Automotive, Pipe

1шт.

14

9410356

PLUG

7/16-20 HEX HD O-RING BOSS

3шт.

15

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

3шт.

16

HOUSING, TRANSMISSION PUMP - NOT AVAILABLE SEPARATELY, ORDER 1252341C91

1шт.

17

405128R1

SHIM

.010 REAR BEARING

1шт.

18

405152R91

BEARING ASSY,1.1875" ID x 2.5317" OD x 0.8468, 0.6563"

ASSY, DRIVE SHAFT REAR PILOT

1шт.

19

394825R1

DOWEL

PIN, 5/16 X 5/8 - END COVER TO VALVE PLATE

1шт.

20

114049C1

PLATE

CYLINDER BLOCK VALVE L.H.

1шт.

21

405141R1

PLATE

CYLINDER BLOCK BEARING

1шт.

22

405140R1

RING

CYLINDER BEARING PLATE PILOT

1шт.

23

558383R1

SNAP RING,#250, 2.606, Int, Spiral

DRIVE SHAFT REAR

1шт.

24

405139R1

RETAINER

DRIVE SHAFT REAR SPRING

1шт.

25

71887C1

SPRING

CYLINDER BLOCK

1шт.

26

405137R1

GUIDE

BUSHING, DRIVE SHAFT REAR SPRING

1шт.

27

405136R1

SEAT

PISTON BLOCK SPRING

1шт.

28

527636R1

PIN

CYLINDER BLOCK BEARING PLATE

1шт.

29

BLOCK ASSY, PISTON CYLINDER - NOT AVAILABLE SEPARATELY, ORDER 133790C91

1шт.

30

67822C1

SPRING

SLIPPER RETAINER

6шт.

31

405132R1

GUIDE

CYLINDER BLOCK PISTON SLIPPER

1шт.

32

71605C1

PISTON ASSY.

CYLINDER BLOCK

9шт.

33

405133R1

RETAINER

CYLINDER BLOCK PISTON SLIPPER

1шт.

34

400965R3

PLATE

PISTON SLIPPER THRUST

1шт.

35

405130R1

HOUSING

SWASHPLATE, TRANSMISSION PUMP

1шт.

36

71888C1

SHAFT

PUMP DRIVE

1шт.

37

405186R91

BEARING ASSY,2" ID x 4" OD x 1.378"

ASSY, DRIVE SHAFT FRONT

1шт.

38

405129R1

GASKET

TRANSMISSION PUMP FRONT COVER

1шт.

39

405127R1

COVER

TRANSMISSION PUMP FRONT

1шт.

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

1шт.

61252H

WASHER

15/32 X 3/4 X 11 GA

1шт.

40

26079R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

DRIVE SHAFT FACE SEAL

2шт.

41

SEAL, SHAFT - NOT AVAILABLE SEPARATELY, ORDER 405125R92

1шт.

42

393882R1

SPRING

DRIVE SHAFT FACE

8шт.

43

610411C1

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

44

405126R1

RETAINER

ASSY, DRIVE SHAFT FACE SEAL

1шт.

45

22325R1

SNAP RING,3.875", Int, #387

DRIVE SHAFT FACE SEAL

1шт.

405125R92

PACKAGE

O-RING Q SEAL - CONSISTS OF 1 SEAL, 1 SEAL, 2 O-RING, 26079R1, 1 O-RING 610411C1, 8 SPRING 393882R1

1шт.

133790C91

KIT

CYLINDER BLOCK - NOT ILLUSTRATED, CONSISTS OF ITEMS 21 - 33

1шт.
