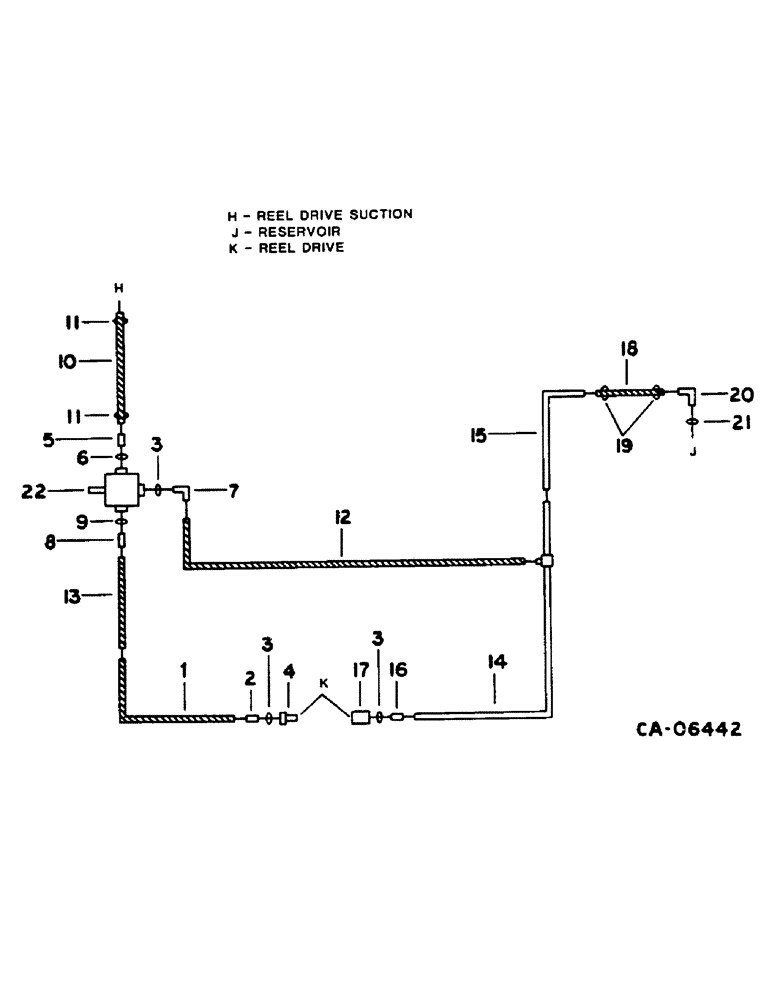

Запчасти Case IH 1460 (10-029) - REEL DRIVE DIAGRAM (07) - HYDRAULICS

1

196858C1

HOSE ASSY.

REEL DRIVE PRIORITY - 49 IN., FOR 47 IN. FEEDER

1шт.

1

196878C1

HOSE

REEL DRIVE PRIORITY - 56 IN., FOR 54.5 IN. FEEDER

1шт.

2

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

7/8-14 X 3/4-16 37 DEG. HYD

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE

3шт.

4

395149R1

QUICK MALE COUPLING

ASSY, REEL DRIVE MALE

1шт.

5

195731C1

CONNECTOR, ELEC

CONNECTOR 1-5/16-12 X 1 IN. FLARED

1шт.

6

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD TUBE, CLASS 6

1шт.

7

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 DEG. FLARED - 90 DEG

1шт.

8

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1/2 37 DEG FLARED 90 DEG

1шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4" TUBE

1шт.

10

198303C1

HYDRAULIC HOSE,1.00" ID x 40.00", SAE 100R4 Class 4

Reel Drive Suction

1шт.

11

333710R91

HOSE CLAMP,#16, 0.81/1.50 Type F Worm

SWITCH MOUNTING, REEL DRIVE SUCTION HOSE

2шт.

12

1317073C1

HOSE

ASSY, PUMP RETURN - 25 IN.

1шт.

13

1317169C1

HOSE

REEL DRIVE PRESSURE

1шт.

14

1301509C1

HYD TUBE

REEL DRIVE RETURN

1шт.

15

196746C1

HYD TUBE

ASSY, REEL DRIVE RETURN

1шт.

16

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 DEG. HYD

1шт.

17

395150R91

COUPLING, QUICK, FEM

ASSY, SELF-SEALING FEMALE

1шт.

18

HOSE, REEL DRIVE RETURN - 18 IN. OF 5/8 ID HOSE - FROM BULK LENGTH

1шт.

180719C1

HOSE

BULK LENGTH

1шт.

19

995218R1

CLAMP

RETURN TO RESERVOIR HOSE

2шт.

20

171949C1

ELBOW

REEL DRIVE RETURN

1шт.

21

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

PUMP ASSY, REEL DRIVE, SEE REEL DRIVE PUMP

1шт.
