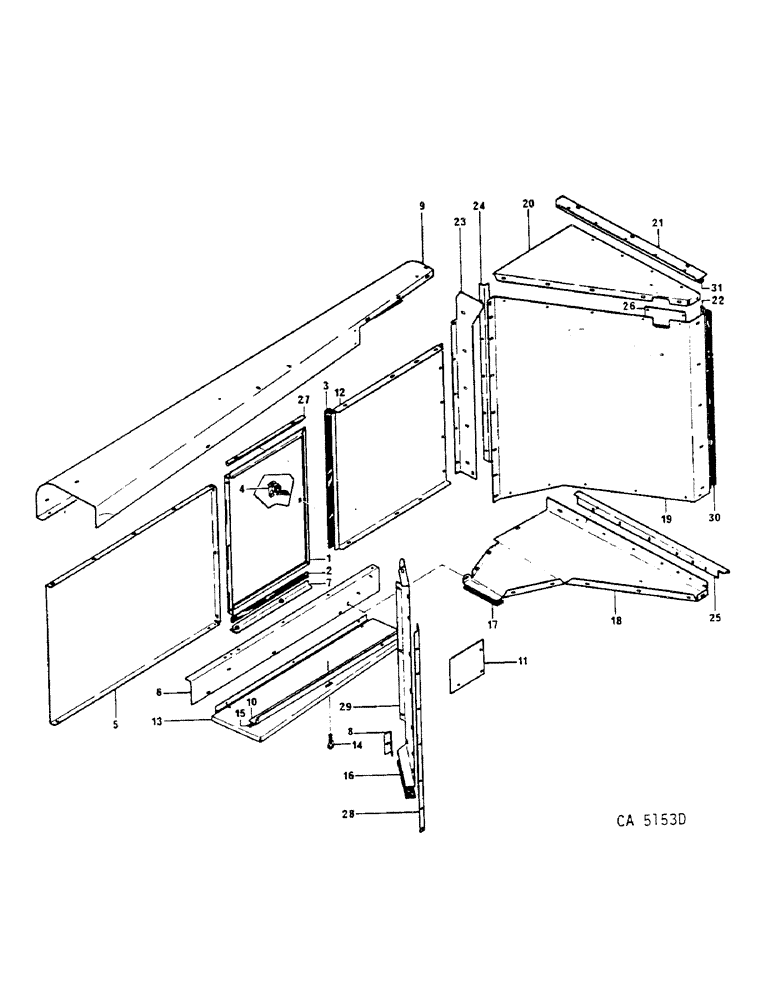

Запчасти Case IH 1460 (06-007) - ROTARY AIR SCREEN CHUTE Cooling

1

1312428C2

DOOR ASSY.

RADIATOR ACCESS

1шт.

3177081R1

SCREW

M6 X 12 SLT-TRUSS-HD

3шт.

3174964R1

LOCK NUT

NUT, M6 FLANGE LOCK

3шт.

2

STRIP, ACCESS DOOR TOP AND BOTTOM SEAL - USE 16.7 IN. FROM BULK LENGTH

2шт.

3

STRIP, ACCESS DOOR SIDE SEAL - USE 26.2 IN. FROM BULK LENGTH

1шт.

153495C1

SEALING STRIP

BULK LENGTH - 724 MM

1шт.

4

1302494C1

LATCH

RADIATOR ACCESS DOOR

1шт.

152830C1

RIVET,Pop, 1/8" x 1/4"

POP

1шт.

5

1312803C1

CHUTE

ASSY, AIR

1шт.

3177082R1

SCREW

M8 X 12 SLT-TRUSS-HD

17шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

17шт.

6

1312434C1

SUPPORT

DOOR LOWER SHEET

1шт.

7

1312833C1

SUPPORT

SEAL REAR

1шт.

3177082R1

SCREW

M8 X 12 SLT-TRUSS-HD

2шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

2шт.

8

1312439C1

SUPPORT

ANGLE

1шт.

3177082R1

SCREW

M8 X 12 SLT-TRUSS-HD

2шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

2шт.

9

1312440C2

SUPPORT

UPPER RH SHEET

1шт.

3177082R1

SCREW

M8 X 12 SLT-TRUSS-HD

4шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

4шт.

10

188035C1

ANGLE

SEAL LOWER

1шт.

3177082R1

SCREW

M8 X 12 SLT-TRUSS-HD

2шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

2шт.

11

188021C1

BAR

OIL COOLER FILLER PLATE

1шт.

3177082R1

SCREW

M8 X 12 SLT-TRUSS-HD

2шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

2шт.

12

NOT USED

1шт.

13

188053C1

DOOR

SPARE PART RADIATOR CLEAN OUT

1шт.

3177081R1

SCREW

M6 X 12 SLT-TRUSS-HD

3шт.

3174964R1

LOCK NUT

M6 FLANGE LOCK

3шт.

14

188029C1

LATCH

CLEAN OUT DOOR

1шт.

15

STRIP, CLEAN OUT DOOR LH SEAL, 34 IN FROM BULK STOCK

1шт.

73220C1

FILLING STRIP

SEAL, STRIP BULK STOCK

1шт.

16

STRIP, CLEAN OUT DOOR FRONT - USE 8.5 IN. FROM BULK LENGTH

1шт.

17

STRIP, CLEAN OUT DOOR REAR - USE 6.1 IN. FROM BULK LENGTH

1шт.

153495C1

SEALING STRIP

BULK LENGTH

1шт.

18

1312443C1

SUPPORT

BOTTOM SHEET

1шт.

19

1312854C1

SUPPORT

REAR SHEET

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

(7.94 x 20.64 mm)

4шт.

80681

LOCK WASHER,5/16"

4шт.

619856R1

WASHER

PLN 10 X 25 X 1.5 MM

4шт.

3177082R1

SCREW

M8 X 12 SLT-TRUSS-HD

9шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

9шт.

20

1312445C1

SUPPORT

UPPER SHEET

1шт.

3177082R1

SCREW

M8 X 12 SLT-TRUSS-HD

10шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

10шт.

21

1312447C1

SUPPORT ASSY.

UPPER FIXATION

1шт.

3177082R1

SCREW

M8 X 12 SLT-TRUSS-HD

5шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

5шт.

22

1312449C1

ANGLE

LH

1шт.

3177059R1

SCREW, M8 X 12 SLT-TRUSS-HD

4шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

6шт.

3177082R1

SCREW

M8 X 16 SLT-TRUSS-HD

2шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(9.52 x 44.45 mm)

1шт.

120377

NUT,3/8" - 16, Gr 5

(9.52 mm)

1шт.

567987R1

SPACER,10.3mm ID x 15.88mm OD x 17.5mm L

TUBE

1шт.

23

1312450C1

SUPPORT

RH

1шт.

3177082R1

SCREW

M8 X 12 SLT-TRUSS-HD

6шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

6шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(9.52 x 44.45 mm)

1шт.

120377

NUT,3/8" - 16, Gr 5

(9.52 mm)

1шт.

567987R1

SPACER,10.3mm ID x 15.88mm OD x 17.5mm L

TUBE

1шт.

24

1312451C1

ANGLE

SUPPORT

1шт.

3177082R1

SCREW

M8 X 12 SLT-TRUSS-HD

5шт.

3177082R1

SCREW

M8 X 16 SLT-TRUSS-HD

2шт.

3174953R1

NUT, M8 FLANGE LOCK

6шт.

25

1312452C1

SUPPORT

ANGLE

1шт.

3177082R1

SCREW

M8 X 12 SLT TRUSS HD

7шт.

3177082R1

SCREW

M8 X 16 SLT TRUSS HD

2шт.

3174953R1

NUT, M8 FLANGE LOCK

6шт.

26

1312530C1

SHEET

CLOSING - 160166322 - WITHOUT AIR CONDITIONING

1шт.

27

NOT USED

1шт.

28

1312437C1

SUPPORT

DEFELCTOR - FIXING

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

4шт.

80681

LOCK WASHER,5/16"

4шт.

619856R1

WASHER

.406 X 1.000 X .056

4шт.

3177082R1

SCREW

M8 X 12 SLT-HD

6шт.

29

1312438C1

SUPPORT

DEFLECTOR

1шт.

3177069C1

SCREW, M8 X 12 SLT-TRUSS-HD

9шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

15шт.

30

188064C1

STRIP

ADAPTER SIDE

1шт.

31

177910C1

SEAL

ADPATER TOP - USE 813 MM

1шт.

32

1312872C1

SUPPORT

SHEET

1шт.

3177082R1

SCREW

M8 X 12 SLT-TRUSS-HD

1шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

1шт.

1312856C1

SEALING STRIP

AIR DUCT

2шт.

1312858C1

STRIP

SPARE PART AIR DUCT

2шт.
