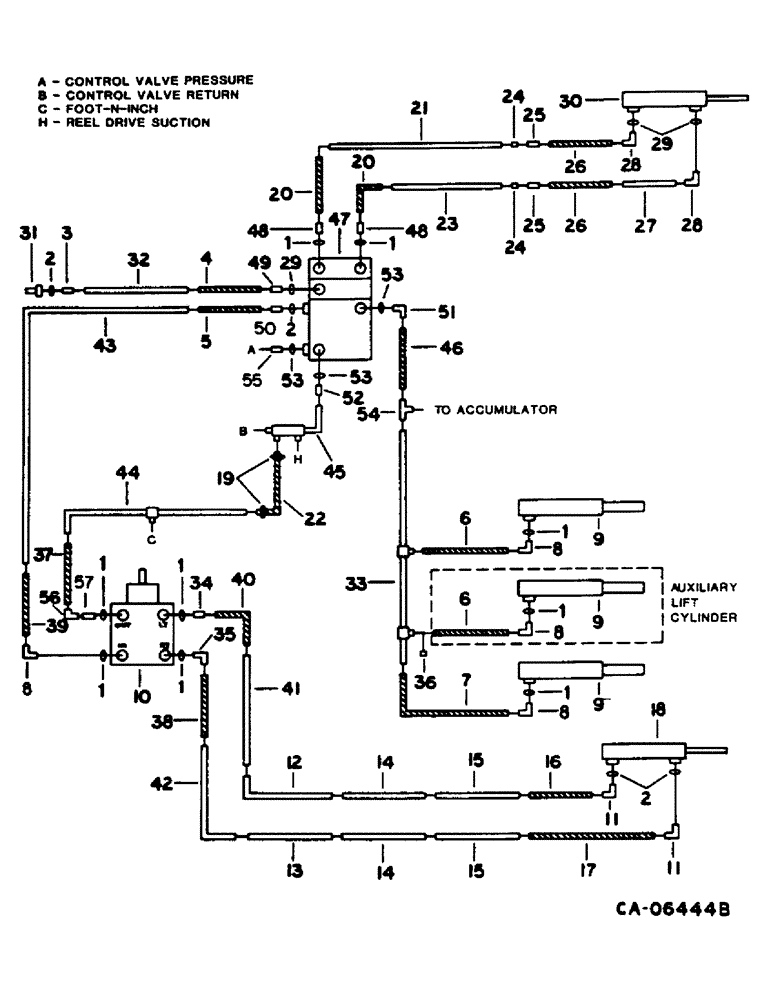

Запчасти Case IH 1460 (10-017) - HEADER LIFT, STEERING AND UNLOADER SWING CYLINDER (07) - HYDRAULICS

1

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8 OD tube

1шт.

3

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 DEG. FLARED

1шт.

4

155309R91

HOSE ASSY, REEL LIFT - 20 IN. - USED WITH 187505C91

1шт.

5

1310755C1

HOSE ASSY.

STEERING PRESSURE - 30 IN.

1шт.

165601C1

CLAMP

PIPE

1шт.

3179269R1

BOLT,Hex Flange, M8 x 1.25 x 30mm, Steel

1шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

M18 - Used with 1301171C91

1шт.

6

587582R91

HOSE ASSY.

HEADER LIFT CYLINDER - 29.0 IN.

1шт.

7

196822C1

HOSE

HEADER LIFT CYLINDER - 43 IN.

1шт.

8

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 DEG. HYD TUBE 90 DEG.

1шт.

9

SEE HEADER LIFT CYLINDER

1шт.

10

SEE STEERING HAND PUMP

1шт.

11

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 DEG. HYD TUBE 90 DEG.

4шт.

12

196789C1

HYD TUBE

STEERING INTERMEDIATE FORWARD UPPER

1шт.

13

196788C1

HYD TUBE

STEERING INTERMEDIATE FORWARD LOWER

1шт.

14

196790C2

HYD TUBE

STEERING INTERMEDIATE REARWARD UPPER AND LOWER

2шт.

15

196791C1

HYD TUBE,0.375" OD

STEERING REARWARD UPPER AND LOWER

2шт.

16

178961C1

HOSE,7.9 mm ID x 1270.00 mm, SAE 100R1

Steering Rear

1шт.

16

179202C1

HOSE,7.94mm ID x 1727.2mm L, SAE 100R1

STEERING REAR - 68 IN. - USED WITH 92-120 IN. AXLE

1шт.

17

178962C1

HOSE ASSY.

STEERING CYLINDER - 60 IN.

1шт.

17

183920C1

HOSE ASSY.

STEERING CYLINDER - 77 IN. - USED WITH 92-120 IN. AXLE

1шт.

18

SEE STEERING CYLINDER

1шт.

19

28085R1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

HOSE

2шт.

20

183883C1

HOSE ASSY.

UNLOADER SWING VALVE

2шт.

21

196751C1

UNLOADING TUBE

TUBE ASSY, UNLOADER TUBE SWING LOWER

1шт.

22

HOSE, STEERING RETURN - 26 IN. OF 1/2 ID HOSE - FROM BULK LENGTH

1шт.

20085R1

SPARE PART CLAMP

2шт.

180718C1

HOSE

BULK LENGTH 50 FT

1шт.

23

196799C1

TUBE

UNLOADER TUBE SWING UPPER

1шт.

24

9403291

BHD LOCK NUT,Blkhd, 7/16"-20

1/4 ZND BULKHEAD UNION

2шт.

25

9403252

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

1/4 ZND BULKHEAD

2шт.

26

195604C1

HOSE ASSY.

UNLOADER SWING CYLINDER - 15 IN.

1шт.

27

196800C1

HYD TUBE

UNLOADER SWING CYLINDER

1шт.

28

9410974

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

7/16-20 37 DEG. HYD TUBE

2шт.

29

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 OD tube

2шт.

30

SEE UNLOADER SWING CYLINDER

1шт.

31

187562C1

QUICK MALE COUPLING

ASSY, REEL LIFT HOSE SELF-SEALING MALE

1шт.

32

1312410C1

HYD TUBE

REEL LIFT

1шт.

33

196785C1

HYD TUBE

HEADER LIFT CYLINDER

1шт.

34

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR, 3/4-16 X 9/16-18 HYD TUBE

1шт.

35

935036R91

ELBOW

3/4-16 X 9/16-18 90 DEG.

1шт.

36

9403372

CAP,37 Degree, 3/4"-16

3/4-16 37 DEG. HYD TUBE

1шт.

37

1310761C1

HOSE ASSY.

STEERING HAND PUMP RETURN

1шт.

38

183694C1

HOSE ASSY.

STEERING HAND PUMP R.H. - 41.3 IN.

1шт.

39

1267031C1

HOSE ASSY.

STEERING HAND PUMP PRESSURE

1шт.

9403399

REDUCER,37 Degree, 1/2" x 1/4" Tube

1/2 X 1/4 REDUCING

2шт.

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

1/2 C-Z - USED WITH SINGLE PUMP

2шт.

39

1310762C1

HOSE

ASSY, STEERING HAND PUMP PRESSURE - USED WITH DUAL PUMP

1шт.

40

1301418C1

HOSE ASSY.

STEERING HAND PUMP L.H. - 39.4 IN.

1шт.

41

1301540C1

TUBE ASSY.

SPARE PART STEERING FORWARD LOWER

1шт.

42

1301541C1

HYD TUBE

STEERING FORWARD UPPER

1шт.

43

1310765C1

HYD TUBE

STEERING PRESSURE

1шт.

44

1310764C1

HYD TUBE

STEERING PRESSURE

1шт.

45

1310757C1

TUBE

HEADER LIFT AND STEERING RETURN

1шт.

122316C1

CLAMP, NO. 12

2шт.

46

155225R91

HOSE ASSY, HEADER LIFT - 29 IN.

1шт.

47

VALVE ASSY, CONTROL, SEE CONTROL VALVE ASSY

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

80681

LOCK WASHER,5/16"

1шт.

48

629349R1

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

7/16-20 X 3/4-16 37 DEG.

2шт.

49

394955R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

UNION, 9/16-18 X 7/16-20 37 DEG. HYD TUBE

1шт.

50

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 ADJ 90 DEG - USED WITH VALVE 1301171C91

1шт.

50

324273R1

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

1/2 X 3/8 SHT. HYD FLD - USED WITH VALVE 187505C91

1шт.

51

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 DEG. HYD

1шт.

52

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 DEG. HYD

1шт.

53

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE

3шт.

54

TEE, SEE ACCUMULATOR

1шт.

55

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z HYD FLD SHORT SWIVEL

1шт.

56

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1/2 HYD FLD 90 DEG. SWIVEL

1шт.

57

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 1/2 HYD. SHT SWIVEL

1шт.
