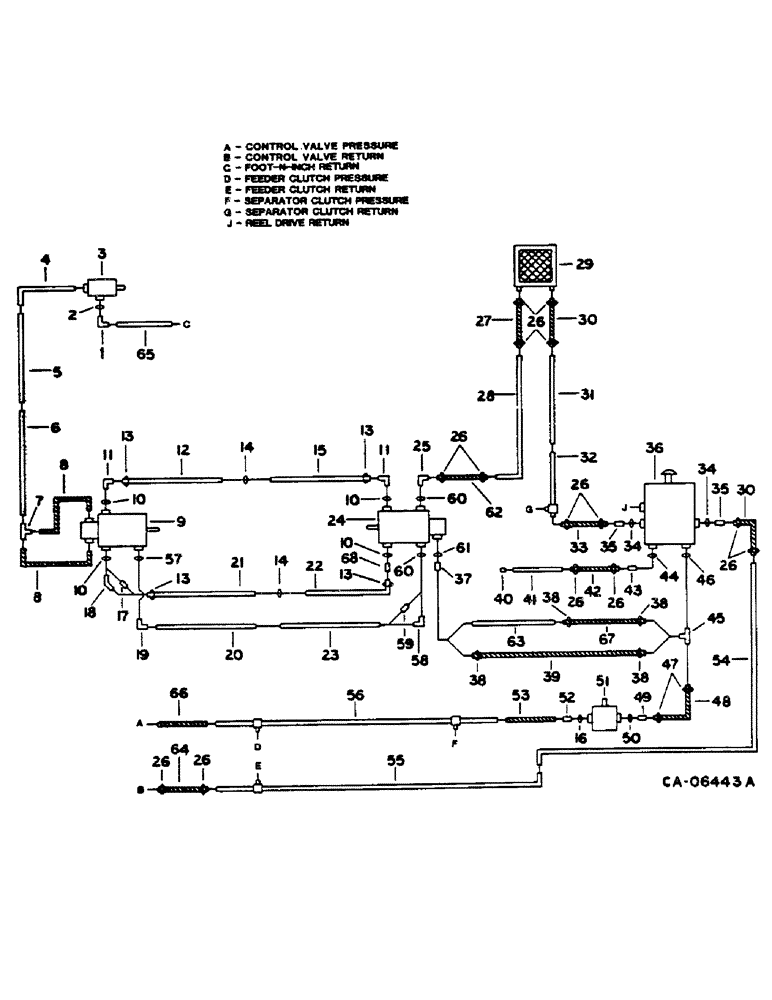

Запчасти Case IH 1460 (10-006) - HYDROSTATIC MOTOR, PUMP AND HEADER LIFT DIAGRAM (07) - HYDRAULICS

1

164596C1

ELBOW

1шт.

2

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5/16 OD tube

1шт.

3

VALVE, FOOT-N-INCH, SEE FOOT-N-INCH VALVE

1шт.

4

187730C1

HYD TUBE

FOOT-N-INCH UPPER

1шт.

5

187731C1

TUBE

FOOT-N-INCH CENTRE

1шт.

6

196764C1

HYD TUBE

FOOT-N-INCH LOWER

1шт.

7

9402979

TEE,7/16"-20, 37 Degree

1/4 C-Z HYD FLARED THREE-WAY

1шт.

8

175760C1

HOSE ASSY.

FOOT-N-INCH

2шт.

9

MOTOR, HYDROSTATIC - SEE HYDROSTATIC MOTOR

1шт.

10

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1" OD TUBE, CLASS 6

6шт.

11

595408R1

90 ELBOW

1-5/16-12 X 1 IN. OD TUBE 90 DEG.

2шт.

12

196532C2

TUBE

TUBE ASSY, HYDROSTATIC DRIVE REVERSE LOWER PRESSURE, WITH 13

1шт.

13

165722C1

SLEEVE

TUBE NUT RUBBER

4шт.

14

343906R1

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

15

196528C2

HYD TUBE

TUBE ASSY, HYDROSTATIC DRIVE REVERSE UPPER PRESSURE, WITH 13

1шт.

20153R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

1шт.

123920

LOCK WASHER,3/8"

1шт.

16

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE, CLASS 6

1шт.

17

163915C1

FITTING

1-5/16-12 37 DEG. HYD FLARED

1шт.

18

NOT USED

1шт.

19

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 DEG. HYD FLARED TUBE 90 DEG, FOR SUNDSTRAND

1шт.

19

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

1-1/16-12 37 DEG. HYD FLARED, FOR EATON

1шт.

20

196758C1

HYD TUBE

HYDROSTATIC BLEED LOWER, FOR SUNDSTRAND

1шт.

20

183589C2

TUBE ASSY.

HYDROSTATIC BLEED LOWER, FOR EATON

1шт.

21

196530C2

TUBE

HYDROSTATIC DRIVE FORWARD LOWER PRESSURE, WITH 13

1шт.

22

196526C2

TUBE

TUBE ASSY, HYDROSTATIC DRIVE FORWARD UPPER PRESSURE, WITH 13

1шт.

20153R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

1шт.

123920

LOCK WASHER,3/8"

1шт.

23

196759C1

HYD TUBE

HYDROSTATIC BLEED UPPER, FOR SUNDSTRAND

1шт.

23

183590C1

TUBE ASSY.

HYDROSTATIC BLEED UPPER, FOR EATON

1шт.

24

PUMP, HYDROSTATIC, SEE HYDROSTATIC PUMP

1шт.

25

387489R91

ELBOW

7/8-14 X 5/8 OD TUBE 90 DEG., FOR SUNDSTRAND

1шт.

25

387006R91

ELBOW

1-1/16-12 X 3/4 OD TUBE END, FOR EATON

1шт.

26

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

HOSE

22шт.

27

HOSE, HYDROSTATIC PUMP TO OIL COOLER - 18 IN. OF 5/8 ID HYD HOSE - FROM BULK LENGTH

1шт.

180719C1

HOSE

BULK LENGTH 25 FT

1шт.

28

183831C1

HYD TUBE

HYD PUMP TO OIL COOLER

1шт.

29

COOLER, OIL, SEE OIL COOLER

1шт.

30

HOSE, RESERVOIR TO OIL COOLER AND HEADER LIFT RETURN - 18 IN. OF 3/4 ID HYD HOSE - FROM BULK LENGTH

2шт.

180720C1

HOSE

BULK LENGTH 25 FT

1шт.

31

183830C1

HYD TUBE

RESERVOIR TO OIL COOLER

1шт.

32

196762C1

HYD TUBE

RESERVOIR TO OIL COOLER

1шт.

33

HOSE, RESERVOIR TO OIL COOLER - 15 IN. OF 3/4 ID HYD HOSE - FROM BULK LENGTH

1шт.

180720C1

HOSE

BULK LENGTH 25 FT

1шт.

34

O-RING - SEE HYDRAULIC RESERVOIR

1шт.

35

FITTING, RETURN AND COOLER - SEE HYDRAULIC RESERVOIR

2шт.

36

RESERVOIR, HYDRAULIC - SEE HYDRAULIC RESERVOIR

1шт.

37

387488R1

CONNECTOR, ELEC

CONNECTOR 7/8-14 X 3/4 BEADED HYD FLARED TUBE REDUCING, FOR SUNDSTRAND

1шт.

37

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

1 C-Z HYD FLD SHORT SWIVEL, FOR EATON

1шт.

38

333710R91

HOSE CLAMP,#16, 0.81/1.50 Type F Worm

SWITCH MOUNTING, SUCTION HOSE, FOR SUNDSTRAND

2шт.

38

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CHARGE SUCTION HOSE, FOR EATON

1шт.

39

HOSE, CHARGE SUCTION - 24.5 IN OF 3/4 ID HOSE - FROM BULK LENGTH

1шт.

180721C1

HOSE

BULK LENGTH 25 FT, FOR SUNDSTRAND

1шт.

40

9403373

CAP,37 Degree, 7/8"-14

5/8 C-Z HYD FLARED TUBE

1шт.

41

187822C1

HYD TUBE,5/8" OD, 14, 1.2" Length

ASSY, RESERVOIR DRAIN

1шт.

42

HOSE, RESERVOIR DRAIN - 15 IN OF 5/8 ID HOSE - FROM BULK LENGTH

1шт.

180719C1

HOSE

BULK LENGTH 25 FT

1шт.

43

FITTING - SEE HYDRAULIC RESERVOIR

1шт.

44

O-RING, FOR 1/2 IN. OD TUBE - SEE HYDRAULIC RESERVOIR

1шт.

45

1301300C1

TEE

CHARGE PUMP SUCTION, FOR SUNDSTRAND

1шт.

45

1301506C1

TEE

CHARGE SUCTION, FOR EATON

1шт.

46

301016R1

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1/2" OD TUBE

1шт.

47

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

HEADER LIFT SUCTION HOSE

2шт.

48

1310703C1

HOSE

HEADER LIFT SUCTION 13.0 IN.

1шт.

49

180182C1

FITTING

CONNECTOR, 1-5/16-12 X 1 IN. BEADED - USED WITH 195706C91 PUMP

1шт.

50

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1" OD TUBE CLASS 6 - USED WITH 195706C91 PUMP

1шт.

51

SEE HYDRAULIC PUMP

1шт.

52

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 5/8 C-Z HYD FLD SHORT SWIVEL

1шт.

53

381173R91

HOSE,12.7mm ID x 209.55mm L, SAE 100R1

HEADER LIFT PRESSURE - 18.25 IN.

2шт.

54

196743C1

TUBE ASSY.

HEADER LIFT RETURN REAR

1шт.

55

196744C1

HYD TUBE

TUBE ASSY, HEADER LIFT RETURN FRONT

1шт.

56

196747C1

HYD TUBE

TUBE ASSY, HEADER LIFT PRESSURE

1шт.

57

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE CLASS 6, FOR SUNDSTRAND

1шт.

57

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD TUBE CLASS 6, FOR EATON

1шт.

58

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

5/8 C-Z HYD FLD ADJ 90 DEG., FOR SUNDSTRAND

1шт.

59

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

3/4 C-Z HYD FLD SHORT SWIVEL, FOR EATON

1шт.

60

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE, FOR SUNDSTRAND

2шт.

60

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD TUBE CLASS 6, FOR EATON

2шт.

61

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE CLASS 6, FOR SUNDSTRAND

1шт.

61

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1" OD TUBE CLASS 6, FOR EATON

1шт.

62

HOSE, HYDROSTATIC PUMP TO OIL COOLER - 18 IN. OF 3/4 ID HYD HOSE - FROM BULK LENGTH

1шт.

180720C1

HOSE

BULK LENGTH 25 FT

1шт.

63

183593C1

HYD TUBE

CHARGE SUCTION, FOR EATON

1шт.

64

HOSE, HEADER LIFT RETURN - 7 IN. OF 3/4 ID HOSE - FROM BULK LENGTH

1шт.

180720C1

HOSE

BULK LENGTH 25 FT

1шт.

65

1301539C1

HYD TUBE

FOOT-N-INCH RETURN - USED WITH SINGLE PUMP

1шт.

65

1311055C1

TUBE ASSY.

FOOT-N-INCH RETURN - USED WITH DUAL PUMP

1шт.

183825C1

CLAMP

1шт.

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.

3174964R1

LOCK NUT

M6 FLANGE LOCK

1шт.

66

155225C91

HOSE ASSY.

HEADER LIFT PRESSURE

1шт.

67

183601C1

HOSE,25.4 mm ID x 355.60 mm, SAE 100R4 CLASS 4, SAE 100R3 CLASS 5

CHARGE SUCTION - 14 IN., FOR EATON

1шт.

68

163915C1

FITTING

1-5/16-2 37 DEG. HYD FLARED

1шт.
