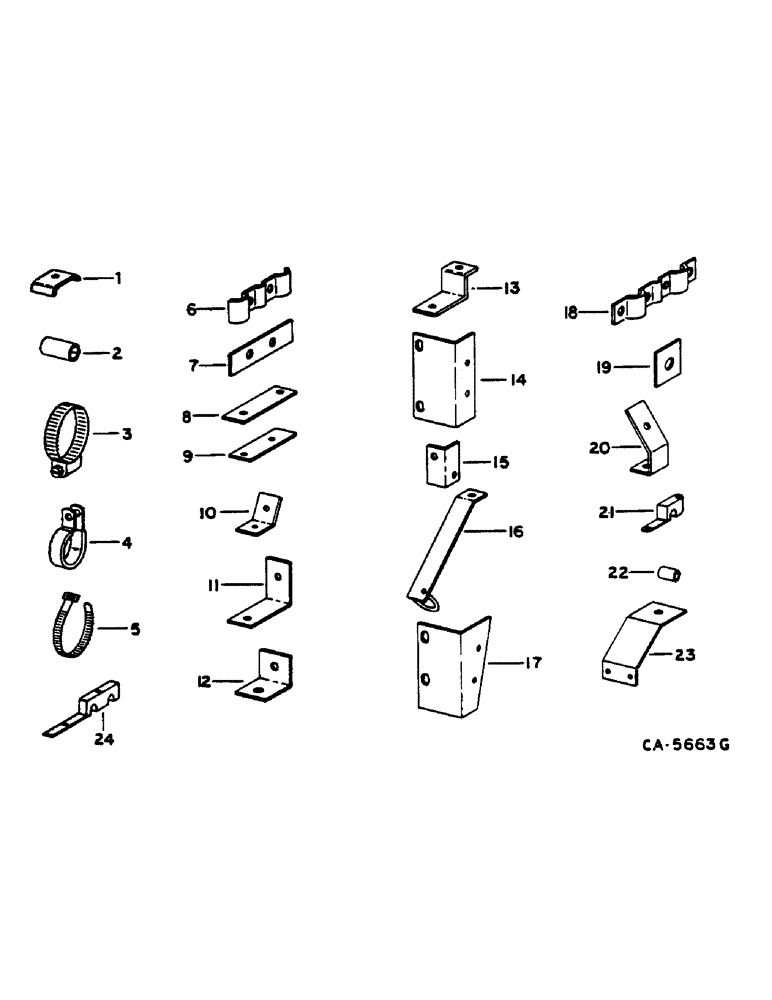

Запчасти Case IH 1460 (10-002) - HYDRAULIC CLAMPS, STRIPS AND SUPPORTS (07) - HYDRAULICS

1

165601C1

CLAMP

.406 DIA. HOLE - USED WITH 3 AUTOMATIC HEADER CONTROL LOWER PRESSURE, 6 HEADER LIFT, 5 PUMP TO COOLER REEL DRIVE, 3 RESERVOIR TO COOLER, 1 RESERVOIR DRAIN

1шт.

1

165602C1

CLAMP

.344 DIA. HOLE - USED WITH 7 FEEDER CLUTCH AND STEERING TUBES, 2 REEL LIFT, 1 STEERING REARWARD UNLOADER SWING

1шт.

2

163489C1

STRIP

FOR 1/4 IN. OD TUBE - USED WITH 5 FOOT-N-INCH UNLOADER SWING

1шт.

2

163490C1

RUBBER INSULATOR

STRIP, 3/8 IN. OD TUBE - USED WITH 14 FEEDER CLUTCH AND STEERING, 2 REEL LIFT, 3 STEERING

1шт.

2

163491C1

RUBBER INSULATOR

STRIP, FOR 1/2 IN. OD TUBE - USED WITH 1 AUTOMATIC HEADER CONTROL

1шт.

2

163492C1

RUBBER INSULATOR

STRIP, FOR 5/8 IN. OD TUBE - USED WITH 5 AUTOMATIC HEADER CONTROL LOWER PRESSURE, 6 HEADER LIFT, 3 PUMP TO COOLER REEL DRIVE, 1 RESERVOIR TO COOLER, 1 RESERVOIR DRAIN

1шт.

2

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

FOR 3/4 IN. OD TUBE - USED WITH 3 HEADER LIFT, 1 PUMP TO COOLER, 2 RESERVOIR TO COOLER

1шт.

2

187935C1

STRIP

HYD TUBE

1шт.

2

183827C1

STRIP

5/8 HYD TUBE

1шт.

3

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

NO. 12 - USED WITH 4 COOLER TO RESERVOIR, 4 HEADER LIFT RETURN, 4 PUMP TO COOLER, 2 REEL DRIVE RETURN, 2 RESERVOIR DRAIN

1шт.

3

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

NO. 24 HEADER LIFT SUCTION

2шт.

3

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

USED WITH 2 CLUTCH RETURN, 2 FEEDER CLUTCH RETURN, 2 STEERING RETURN, 2 SWING VALVE RETURN

1шт.

3

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

NO. 32 UNLOADER SWING CYLINDER

1шт.

3

333710R91

HOSE CLAMP,#16, 0.81/1.50 Type F Worm

SWITCH MOUNTING, NO. 16 CHARGE SUCTION

2шт.

3

995219R91

CLAMP

NO. 24 REEL DRIVE SUCTION

2шт.

4

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

STEERING - INSULATED

3шт.

4

573674R1

CLIP

FOOT-N-INCH - UNINSULATED

3шт.

5

702093C1

CABLE TIE

CABLE STRAP SEPARATOR CLUTCH

1шт.

5

306132C1

CABLE TIE,14.5" L

CABLE STRAP STEERING HAND PUMP HOSE

1шт.

6

178984C1

CLAMP

HYDROSTATIC DRIVE LOWER TUBE

2шт.

7

150779C1

TUBE

1/4 IN. HYDROSTATIC DRIVE LOWER TUBE

2шт.

7

150780C1

STRAP

1/8 IN. HYDROSTATIC DRIVE LOWER TUBE

2шт.

7

187840C1

STRAP

HYD TUBE CLAMP

1шт.

8

187509C1

BAR

HEADER LIFT

1шт.

8

187510C2

BAR

HEADER LIFT TUBES

1шт.

9

196868C1

BAR

RESERVOIR TO COOLER AND REEL DRIVE RETURN

1шт.

10

178960C1

BRACKET

STEERING REARWARD

1шт.

11

178950C1

ANGLE

HEADER LIFT SUPPORT

1шт.

11

183899C1

ANGLE

STEERING HAND PUMP HOSE

1шт.

12

176394C1

ANGLE

HEADER LIFT TUBE

1шт.

13

196517C1

SUPPORT TUBE

USED WITH 3 FEEDER CLUTCH AND STEERING TUBES, 1 HYDROSTATIC PUMP TO COOLER

1шт.

14

187936C1

ANGLE

HYDROSTATIC SUPPORT REAR

1шт.

15

196872C1

ANGLE

STEERING SUPPORT

2шт.

16

173143C1

SUPPORT ASSY.

HEADER LIFT HOSE

1шт.

17

187937C1

ANGLE

HYDROSTATIC SUPPORT FRONT

1шт.

18

187934C1

CLAMP

HYDROSTATIC TUBE

1шт.

19

156715C1

BAR

TUBE CLAMP

1шт.

19

573186R1

PLATE

TUBE CLAMP - USED WITH 1 AUTOMATIC HEADER CONTROL

1шт.

20

183829C1

BRACKET

HYD TUBE - RESERVOIR TO COOLER TUBE

1шт.

21

183820C1

CLAMP

HYD TUBE, FOR 1/4 OD TUBE

1шт.

21

1407349R1

CLAMP

HYD TUBE, FOR 3/8 OD TUBE

1шт.

21

183822C1

CLAMP

HYD TUBE, FOR 5/8 OD TUBE

1шт.

21

183823C1

CLAMP

HYD TUBE, FOR 3/4 OD TUBE

1шт.

22

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

.407 X .625 X 1.00

1шт.

23

NOT USED

1шт.

24

183824C1

CLAMP

1/4 X 1/4

1шт.

24

183825C1

CLAMP

3/8 X 3/8

1шт.

24

1301178C1

CLAMP

1/2 X 1/2

1шт.

24

183826C1

CLAMP

3/4 X 3/4

1шт.

24

121714C1

CLAMP

3/4 X 5/8

1шт.
