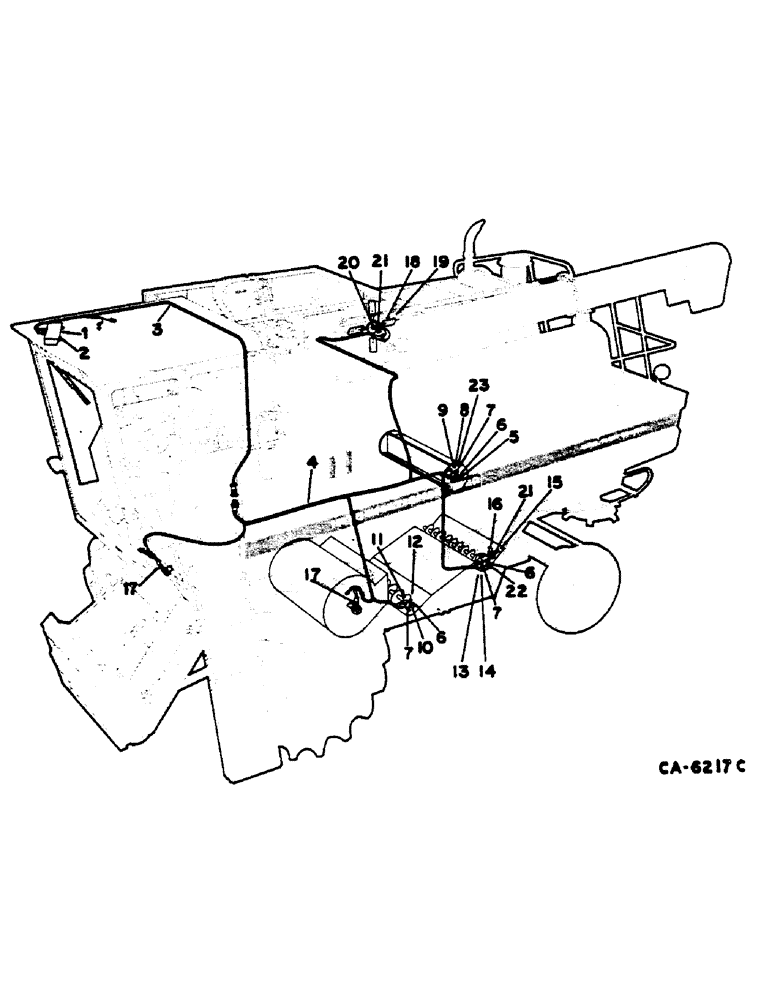

Запчасти Case IH 1460 (08-035) - SHAFT SPEED MONITOR CONTROL (06) - ELECTRICAL

1

1301266C2

INDICATOR

PANEL ASSY, SHAFT SPEED MONITOR - RENEWED 7 CHANNEL

1шт.

2

178876C1

SUPPRESSOR

AUDIBLE ALARM

1шт.

3

1301064C1

HARNESS

ASSY, CAB SECTION

1шт.

4

1301064C1

HARNESS

ASSY, CAB SECTION

1шт.

169850C1

CLIP

1шт.

5

BUSHING, BEATER, SEE DISCHARGE BEATER

1шт.

6

178800C1

CLAMP

ASSY, SENSOR

3шт.

7

196984C1

SWITCH

ASSY, SHAFT SPEED MONITOR

3шт.

8

187629C1

SUPPORT

BEATER SHAFT SENSOR

1шт.

8

181209C1

SUPPORT

STRAW CHOPPER SENSOR

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1шт.

9

187630C1

SUPPORT

BEATER SHAFT

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

1шт.

9

181208C1

SUPPORT

STRAW CHOPPER SHAFT

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

1шт.

10

178801C1

COLLAR

CLEAN GRAIN SENSOR

1шт.

10

178794C1

BRACKET

CLEAN GRAIN

1шт.

11

187642C1

COVER

ASSY, CLEAN GRAIN AUGER SENSOR

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

1шт.

12

187615C2

BRACKET

TAILINGS SENSOR

1шт.

13

187616C1

SUPPORT

TAILINGS SENSOR

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

1шт.

14

187998C1

SUPPORT

SHOE SENSOR

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

15

187996C1

MAGNET

ASSY, SHOE

1шт.

16

GAUGE, RELUCTANCE PICKUP - SEE CLEANING FAN AND SHIELDS

1шт.

17

1301561C1

SUPPORT

ROTARY SCREEN SENSOR - REPLACES 187501C1

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

179454C1

RUBBER WASHER

RUBBER

1шт.

120393

BEARING WASHER,5/16", SAE

1шт.

18

1301560C1

SUPPORT

ROTARY SCREEN SENSOR - REPLACES 187502C1

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

1шт.

19

196987C1

MAGNET

ASSY, ROTARY SCREEN

1шт.

125932

SELF-TAP SCREW,Sl Pan Hd, #8 x 1/2"

1шт.

20

187997C1

SWITCH

ASSY, SHAFT SPEED MONITOR

1шт.

21

178801C1

COLLAR

TAILINGS SENSOR

1шт.

22

1301577C1

SWITCH

ASSY, MONITOR CHOPPER SHAFT

1шт.

139936C91

KIT

ASSY, MONITOR - FIELD REPAIR

1шт.

139937C91

KIT

ASSY, MONITOR - FIELD REFILL

1шт.
