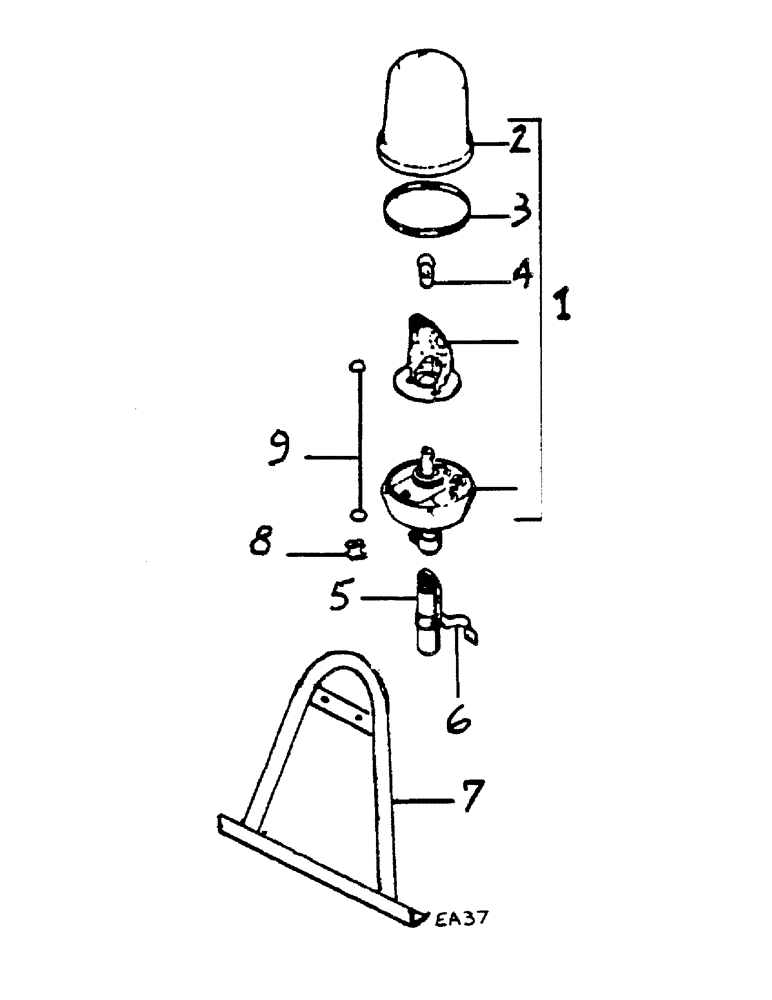

Запчасти Case IH 1460 (08-033) - BEACON (06) - ELECTRICAL

1

1311061C1

LIGHT ASSY.

WITH 2

1шт.

2

1133187R1

CAP

W/SEAL

1шт.

3

1133188R1

SEAL

1шт.

4

3217312R1

BULB,H1, 12V, 55W

1шт.

5

1133183R1

ELEC CONNECTOR

TUBULAR

1шт.

6

3177099R1

CLAMP

COLLAR

1шт.

3177070R1

SCREW,Sltd Truss Hd, M8 x 20

M8 X 20 SLT-TRUSS-HD

2шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

2шт.

7

1312465C1

SUPPORT

REAR

1шт.

3177070R1

SCREW,Sltd Truss Hd, M8 x 20

M8 X 20 SLT-TRUSS-HD

3шт.

3174863R1

NUT, M8 FLANGE LOCK

3шт.

8

3234049R1

GROMMET

1шт.

9

1312691C1

ELECTRICAL WIRE

SPARE PART GROUND

1шт.
