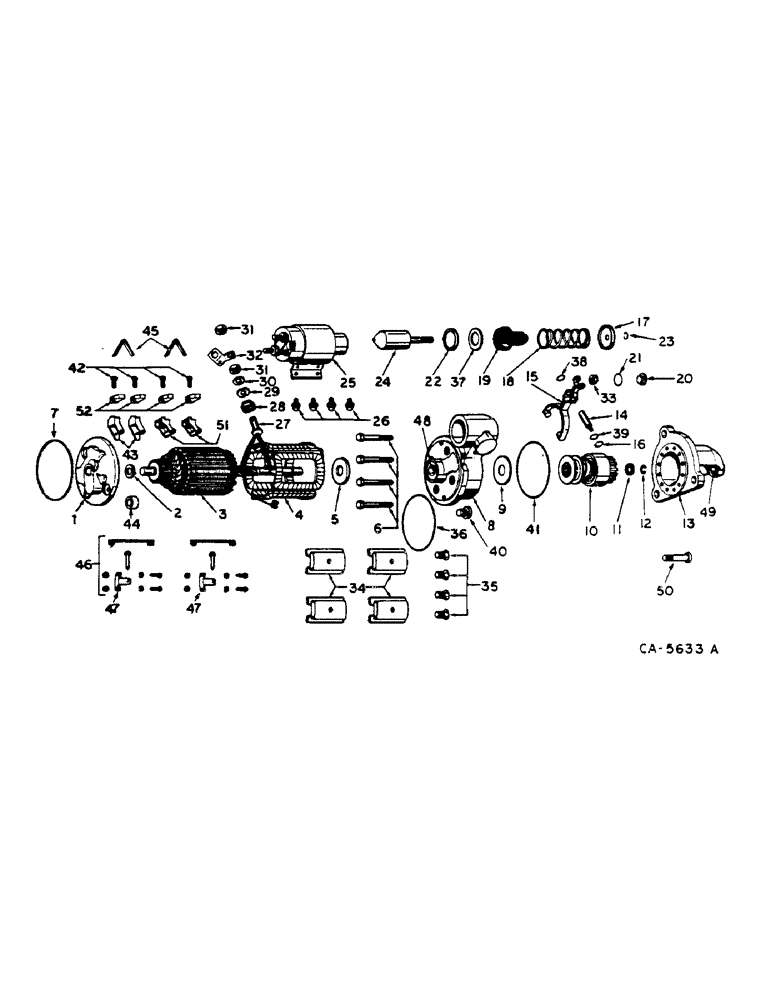

Запчасти Case IH 1460 (08-026) - CRANKING MOTOR (06) - ELECTRICAL

1113444

STARTER MOTOR

ASSY, CRANKING

1шт.

189295

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180358

LOCK WASHER,Int Tooth, 3/8", Hvy

1шт.

120614

NUT,Hex, #10 - 32

1шт.

120217

LOCK WASHER,#10

1шт.

1

1891925

FRAME

COMMUTATOR END

1шт.

1891929

WICK

1шт.

2

1914842

WASHER

SPACER

1шт.

3

1851961

ARMATURE

1шт.

4

1852026

COIL

FIELD

1шт.

5

1851959

SPACER

1шт.

6

1914869

SCREW

FRAME ATTACHING

4шт.

7

1916272

O-RING

COMMUTATOR END FRAME

1шт.

8

1852967

HOUSING

LEVER

1шт.

1916439

WICK

1шт.

9

821453

WASHER

BRAKE

1шт.

10

146484C1

DRIVE

MOTOR, CLUTCH DRIVE

1шт.

11

1851546

COLLAR

PINION STOP

1шт.

12

1928022

SNAP RING

PINION STOP

1шт.

13

830711

HOUSING

DRIVE

1шт.

1916439

WICK

1шт.

14

1851953

SHAFT

SHIFT LEVER

1шт.

15

1851954

LEVER

SHIFT

1шт.

16

9415235

RING, SNAP

RING SNAP SHIFT LEVER SHAFT

1шт.

17

1948526

RETAINER

PLUNGER SPRING

1шт.

18

1948521

SPRING

PLUNGER

1шт.

19

801077

BOOT

PLUNGER

1шт.

20

1945356

PLUG

LEVER HOUSING INSPECTION

1шт.

21

1964857

GASKET

LEVER HOUSING INSPECTION PLUG

1шт.

22

1948520

RETAINER

PLUNGER SPRING

1шт.

23

9415235

RING, SNAP

RING SNAP PLUNGER SPRING RETAINER

1шт.

24

1851966

PLUNGER

1шт.

25

1115530

IGNITION SWITCH

SOLENOID

1шт.

26

1930611

LOCK SCREW

WASHER SWITCH ATTACHING

4шт.

27

1950561

STUD

TERMINAL

1шт.

28

1965472

PACKAGE

BUSHING, INSULATING TERMINAL STUD

1шт.

29

1922457

WASHER

INSULATING TERMINAL STUD

2шт.

30

1914647

WASHER

TERMINAL STUD - PLAIN

1шт.

31

9414418

NUT

TERMINAL STUD

2шт.

32

NOT USED

1шт.

33

1851995

NUT

PLUNGER ROD GUIDE ADJUSTING

1шт.

34

SHOE, POLE - NOT AVAILABLE SEPARATELY, ORDER 111344

1шт.

35

1968396

SCREW

POLE SHOE

4шт.

36

1851960

O-RING

BRAKE LEVER HOUSING

1шт.

37

1948519

WASHER

PLUNGER SPRING RETAINER

1шт.

38

1914373

O-RING

SHAFT LEVER

1шт.

39

1921805

GASKET

O-RING, SHAFT LEVER

1шт.

40

1914869

SCREW

LEVER HOUSING ATTACHING

4шт.

41

1916272

O-RING

DRIVE END HOUSING SEAL

1шт.

42

1959514

SCREW

BRUSH ATTACHING

4шт.

43

1940477

HOLDER

BRUSH GROUND

2шт.

44

1891927

BUSHING

COMMUTATOR END FRAME

1шт.

45

1945620

SPRING

BRUSH

2шт.

46

1877164

COMMUTATOR BRUSH

SUPPORT PACKAGE, WITH 47

2шт.

47

1914873

INSULATOR

FIELD COIL

2шт.

48

1933999

BUSHING

LEVER HOUSING

1шт.

49

1955994

BUSHING

DRIVE HOUSING

1шт.

50

1870513

SCREW

DRIVE HOUSING ATTACHING

6шт.

51

1950546

HOLDER

BRUSH INSULATED

2шт.

52

1906987

BRUSH

4шт.
