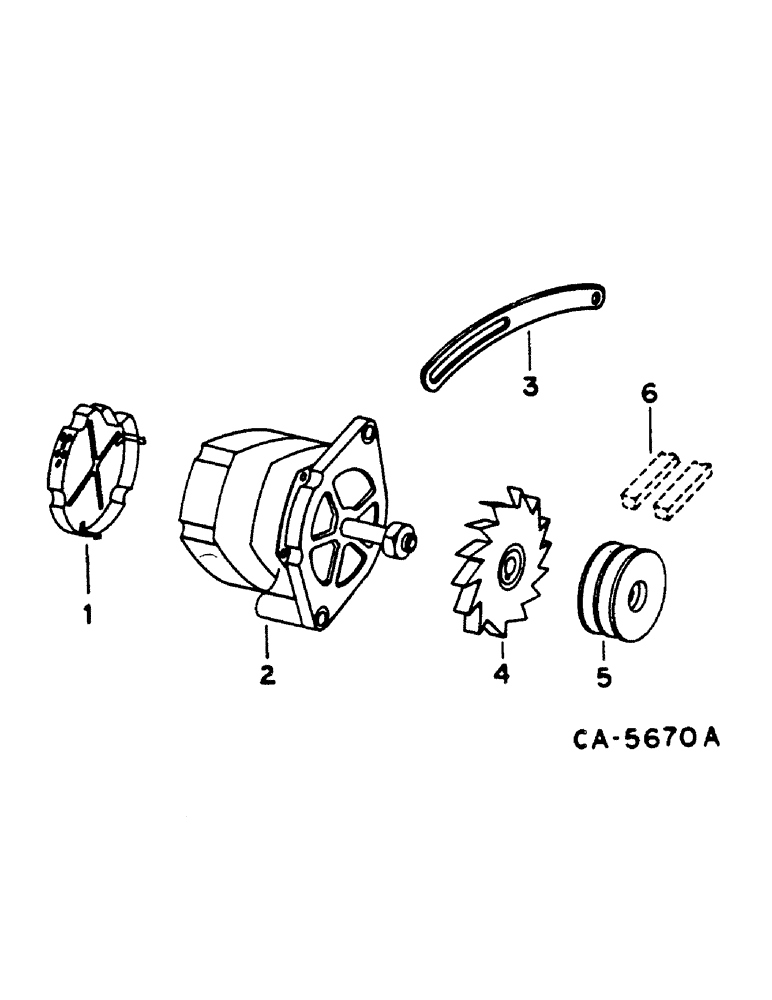

Запчасти Case IH 1460 (08-024) - ALTERNATOR-GENERATOR AND MOUNTINGS (06) - ELECTRICAL

1

1851153

SHIELD

COVER - FOR ALTERNATOR 1102922, 1103160 AND 1103184

1шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

120393

BEARING WASHER,5/16", SAE

1шт.

2

GENERATOR, ALTERNATOR - SEE ALTERNATOR-GENERATOR

1шт.

3

532418R1

BRACE

ADJUSTING

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

930294R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

21496R1

WASHER

.344 X .750 X .105

1шт.

4

221425R1

FAN

ALTERNATOR-GENERATOR

1шт.

5

537070R1

PULLEY

ALTERNATOR-GENERATOR "- FOR ALTERNATOR 1102922, 1103160 AND 1103184

1шт.

5

107686C1

PULLEY

ALTERNATOR - FOR ALTERNATOR 107639C91 AND 146466C91

1шт.

6

BELT, MATCHED SET - SEE ENGINE BELT DIAGRAM

1шт.
