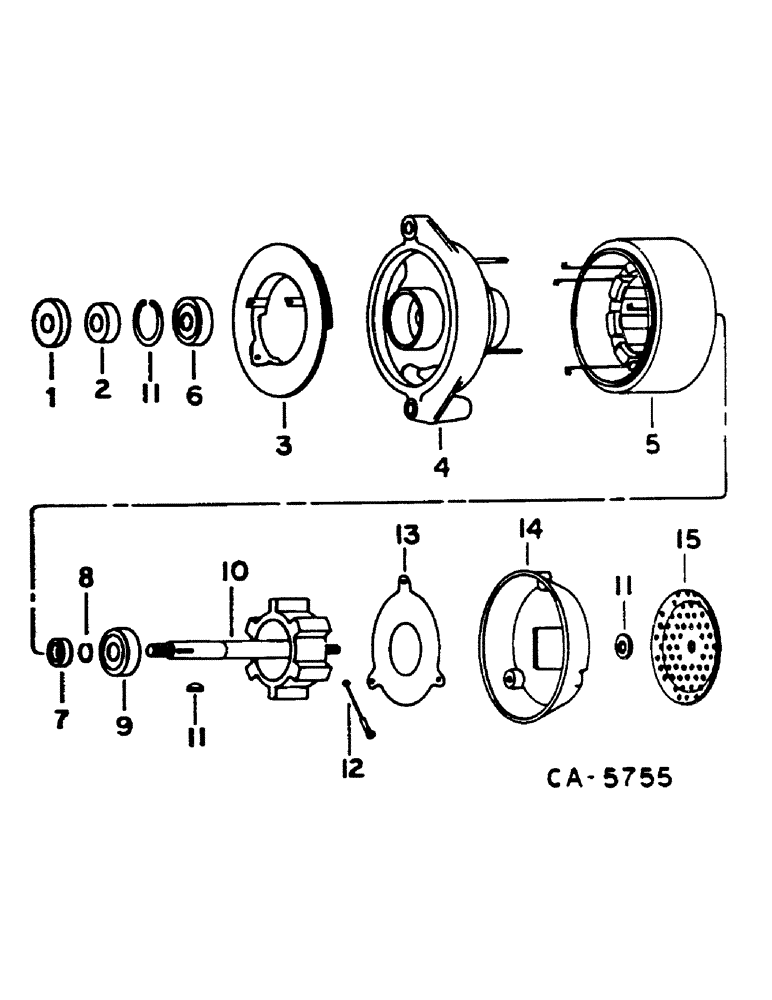

Запчасти Case IH 1460 (08-022) - ALTERNATOR-GENERATOR, WITH INTEGRAL SOLID STATE VOLTAGE REGULATOR, 80 AMP (06) - ELECTRICAL

146466C91

ALTERNATOR

GENERATOR ASSY, 80 AMP - REPLACES 107639C91

1шт.

931715R1

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

1шт.

905262R1

NUT,M10 x 1.5, Cl 10

1шт.

30281R1

NUT,M6, Cl 10

1шт.

933833R1

LOCK WASHER,M6

1шт.

384396R1

SPADE TERMINAL,Male

TERMINAL, BLADE Male

1шт.

1

130991C1

CUP WASHER

FRONT SPRING AND BEARING COVER

1шт.

2

130992C1

SPACER

FRONT

1шт.

3

130994C1

AMPLIFIER ASSY.

RECTIFIER AND HEAT SINK

1шт.

4

130995C2

FRAME ASSY

FIELD WINDING AND END

1шт.

5

130997C2

SHELL

AND STATOR ASSY

1шт.

6

131022C91

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

FRONT

1шт.

7

130998C1

CUP WASHER

RETAINER CUP

1шт.

8

130993C1

RING

RETAINER

1шт.

9

131023C91

BALL BEARING,17 mm ID x 48 mm OD x 12 mm

REAR

1шт.

10

131000C1

ROTOR ASSY.

1шт.

11

131005C2

KIT

MISC HARDWARE SERVICE

1шт.

12

131003C1

CABLE ASSY.

GROUND

1шт.

13

131001C1

REGULATOR

ASSY, VOLTAGE

1шт.

14

131002C1

COVER

VOLTAGE REGULATOR

1шт.

15

131004C1

SCREEN

1шт.
