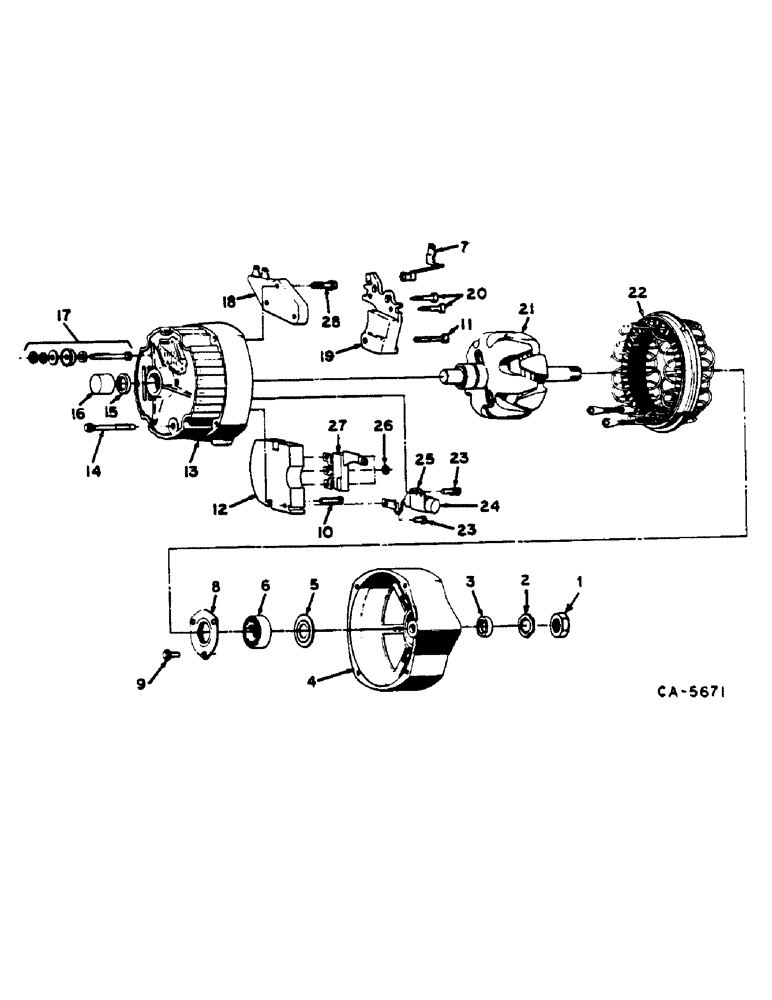

Запчасти Case IH 1460 (08-019) - ALTERNATOR-GENERATOR, WITH INTEGRAL SOLID STATE VOLTAGE REGULATOR, 72 AMP (06) - ELECTRICAL

1103184

ALTERNATOR

GENERATOR, ASSY 72 AMP - REPLACES 1102922 Q1103160

1шт.

931715R1

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

1шт.

905262R1

NUT,M10 x 1.5, Cl 10

1шт.

30281R1

NUT,M6, Cl 10

1шт.

933833R1

LOCK WASHER,M6

1шт.

1

1915172

NUT

DRIVE SHAFT END

1шт.

2

1941978

WASHER

DRIVE END SHAFT LOCK

1шт.

3

1959991

COLLAR

DRIVE END SHAFT - 7/8 IN. OUTSIDE DIA.

1шт.

3

A49733

COLLAR

DRIVE END SHAFT - 1.0 IN. OUTSIDE DIA.

1шт.

4

1976808

FRAME

DRIVE END

1шт.

5

NOT USED

1шт.

6

1974861

BALL BEARING

DRIVE END BALL

1шт.

7

1894568

ELEC CONNECTOR

RELAY

1шт.

8

1971993

PLATE

DRIVE END BALL BEARING RETAINER

1шт.

9

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

BEARING RETAINER PLATE ATTACHING

3шт.

10

1876668

SCREW

RECTIFIER SUPPORT

1шт.

11

1974020

SCREW

BRUSH HOLDER PIVOT

1шт.

12

1891055

SUPPORT

RECTIFIER BRIDGE ASSY

1шт.

13

1975718

FRAME

SLIP RING END

1шт.

14

1956975

BOLT

FRAME ATTACHING

4шт.

15

NOT USED

1шт.

16

1974862

BUSHING

BEARING, SLIP RING END ROLLER

1шт.

17

1975471

PACKAGE

BATTERY TERMINAL

1шт.

18

1116387

VOLTAGE REGULATOR

1шт.

19

1894559

HOLDER

ASSY, BRUSH AND BRUSH

1шт.

20

1876681

SCREW

ASSY, BRUSH HOLDER INSULATED

2шт.

21

1876163

ROTOR

ASSY

1шт.

22

1851572

STATOR

ASSY

1шт.

23

1851612

SCREW

W/LOCK WASHER, CAPACITOR BRACKET AND LEAD ATTACHING

2шт.

24

1971411

CAPACITOR

ASSY

1шт.

25

1869573

BRACKET

CAPACITOR MOUNTING

1шт.

26

120622

NUT,#8-32

3шт.

27

1971528

RECTIFIER

DIODE TRIO

1шт.

28

1894586

SCREW

SY, BRUSH HOLDER GROUND

1шт.
