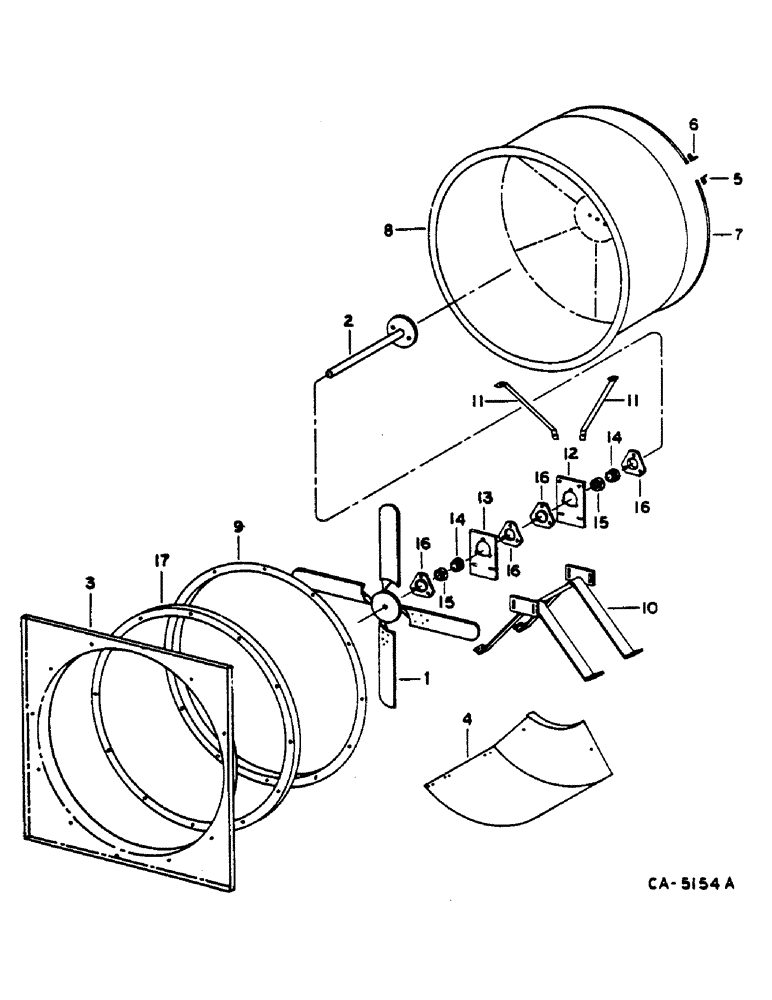

Запчасти Case IH 1460 (06-002) - ROTARY AIR SCREEN Cooling

1

188047C1

FAN

ASSY, ROTARY AIR SCREEN

2шт.

26309R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

2

194228C1

SHAFT ASSY.

ROTARY AIR SCREEN FAN

1шт.

3

192336C2

GUARD

ADAPTER ASSY, ROTARY AIR SCREEN

1шт.

614452R1

WASHER

.406 X 1.250 X .090

2шт.

3177082R1

SCREW

M8 X 12 STL-TRUSS-HD

2шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

2шт.

473371R1

FLANGE NUT

3/8-16 FLANGE LOCK

2шт.

4

194224C1

BAFFLE ASSY.

ROTARY AIR SCREEN

1шт.

932875R1

SPARE PART 4.8 X 99 MM

3шт.

104235

RIVET,FH, 3/16" x 1/2"

4шт.

5

164617C1

ANGLE

BRUSH LONG

1шт.

19910R1

LOCK NUT

NO. 10 CAD P/T LOCK TYPE 5

1шт.

436736

SCREW,Slotted Pan Hd, #10-24 x 1"

1шт.

6

164616C1

ANGLE

BRUSH SHORT

1шт.

7

164615C91

BRUSH ASSY.

ROTARY AIR SCREEN, WITH 5, 6

1шт.

8

194222C1

SCREEN

SIEVE ASSY, ROTARY AIR

1шт.

19532R1

BOLT,Hex, 3/8" - 16 x 1/2", Gr 2

2шт.

3174964R1

LOCK NUT

M6 FLANGE LOCK

12шт.

21352R1

RIVET,Tr Hd, 3/16" x .281", Alum.

3/16 X 9/32 PLN AL T/HD S/T

12шт.

3177081R1

SCREW

M6 X 12 SLT-TRUSS-HD

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

9

164627C1

RETAINER

BRUSH SEAL

1шт.

163485C1

RIVET

.187 X .402 POP

12шт.

10

194226C1

SUPPORT ASSY.

ROTARY AIR SCREEN BRG

1шт.

3174964R1

LOCK NUT

M6 FLANGE LOCK

8шт.

3177081R1

SCREW

M6 X 12 SLT-TRUSS-HD

8шт.

11

194221C1

SUPPORT

BEARING

2шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

4шт.

3177071R1

SCREW

SPARE PART M8 X 25 SLT-TRUSS-HD

4шт.

12

164605C1

LARGE PLATE

PLATE, LARGE BAR, BEARING FLANGE

1шт.

30470R1

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

2шт.

934310R1

NUT,M8, Cl 8

2шт.

934309R1

LOCK WASHER,M8

2шт.

934767R1

WASHER

9 X 22 X 1.5 MM

2шт.

13

164604C1

BAR

BEARING FLANGE

1шт.

30470R1

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

2шт.

934310R1

NUT,M8, Cl 8

2шт.

934309R1

LOCK WASHER,M8

2шт.

934767R1

WASHER

9 X 22 X 1.5 MM

2шт.

14

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

ASSY, ROTARY AIR SCREEN

2шт.

15

455958R11

COLLAR,19.05mm ID x 32.94mm OD x 13.49mm W

W/SET SCREW, BEARING

2шт.

16

186636C1

FLANGED BEARING,2.125" ID x 0.3125"

BEARING

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

1шт.

17

164606C1

WASHER

RETAINER, BRUSH SEAL

1шт.
