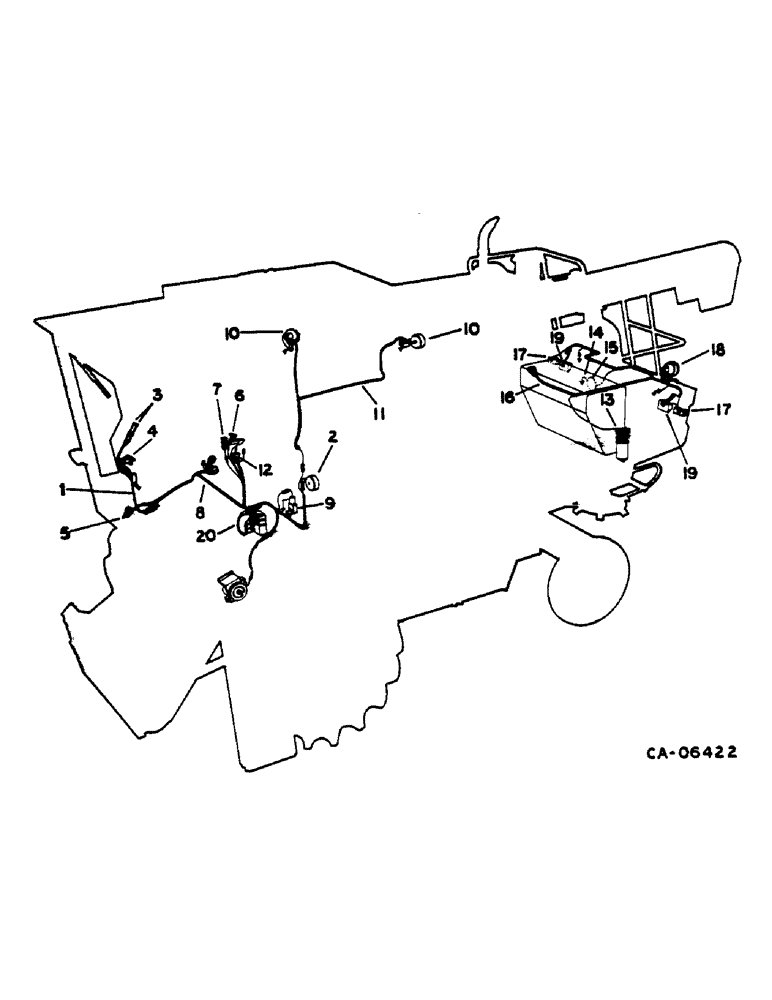

Запчасти Case IH 1460 (08-014) - WIRING DIAGRAM, GRAIN TANK UNLOADER, REAR LIGHTS AND FUEL PUMP (06) - ELECTRICAL

1

1301532C1

HARNESS

ASSY, STEERING COLUMN

1шт.

2

NOT USED

1шт.

3

INDICATOR, LIGHT - SEE ROAD LIGHTS AND MOUNTINGS

3шт.

4

SWITCH ASSY, TURN SIGNAL - SEE ROAD LIGHTS AND MOUNTINGS

1шт.

5

196825C1

IGNITION SWITCH

ASSY, SAFETY START

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

6

633643R91

SWITCH

ASSY, PARKING BRAKE WARNING LIGHT

1шт.

68107H

LOCK NUT

1шт.

469668R1

WASHER

.406 X .734 X .056

1шт.

7

195778C91

LIGHTER, CIGARETTE

ASSY

1шт.

8

1301531C1

HARNESS

ASSY, MAIN FRONT LEFT

1шт.

9

SWITCH, SOLENOID, FEEDER CLUTCH VALVE - SEE FEEDER AND SEPARATOR CLUTCH VALVE

1шт.

10

LAMP ASSY, GRAIN TANK AND UNLOADER - SEE NIGHT LIGHT AND MOUNTINGS

1шт.

11

187792C2

HARNESS

ASSY, GRAIN TANK AND UNLOADER LIGHTS

1шт.

12

1301359C1

SWITCH

ASSY, UNLOADER SWING

1шт.

13

PUMP ASSY, FUEL, SEE FUEL LINES

1шт.

14

196262C2

CABLE ASSY.

FUEL GAUGE GROUND

1шт.

15

GAUGE ASSY, FUEL TANK, SEE FUEL TANK

1шт.

16

1301535C1

HARNESS

ASSY, MAIN REAR

1шт.

17

LAMP ASSY, REAR LH TAIL - SEE ROAD LIGHTS AND MOUNTINGS

1шт.

18

LAMP ASSY, LH NIGHT LIGHT - SEE NIGHT LIGHTS AND MOUNTINGS

1шт.

19

LAMP ASSY, TAIL REAR RH - SEE ROAD LIGHTS AND MOUNTINGS

1шт.

20

1301077C1

HARNESS

ASSY, HYD VALVE CLUSTER

1шт.
