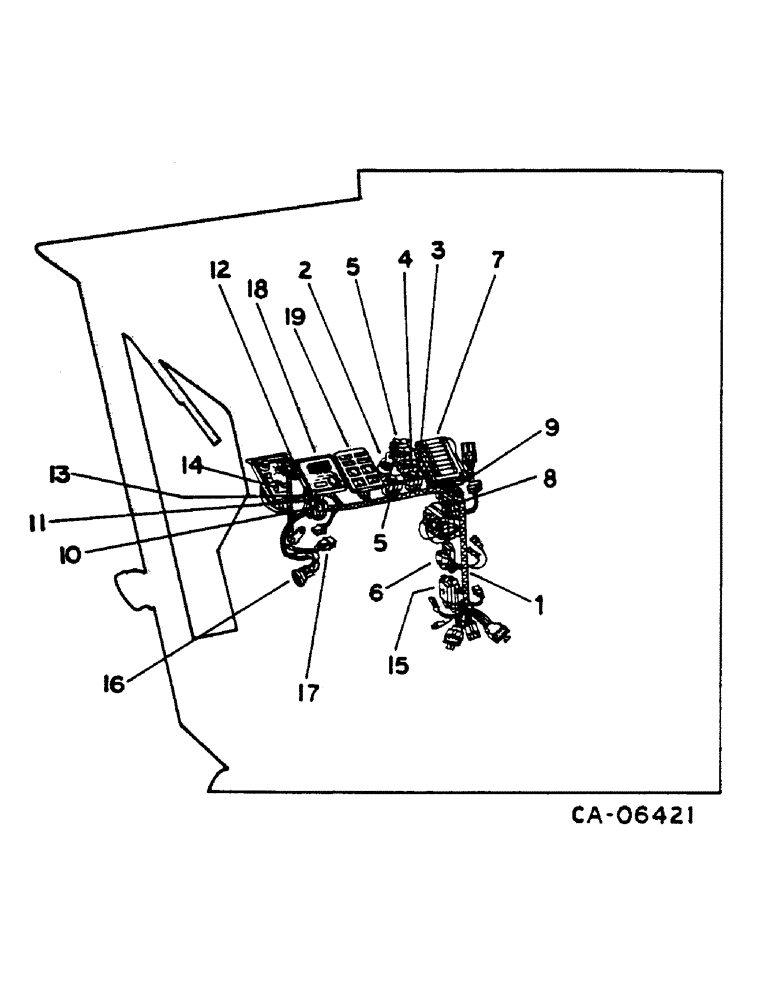

Запчасти Case IH 1460 (08-009) - WIRING DIAGRAM, INSTRUMENT PANEL (06) - ELECTRICAL

1

1301530C3

HARNESS

ASSY, CONSOLE

1шт.

2

107682C1

SWITCH

ASSY, KEY STARTING

1шт.

131313C1

KEY, IGNITION

SWITCH

1шт.

365502R1

NUT

IGNITION SWITCH

1шт.

NLS

NO LONGER SERVICED

1шт.

3

195605C1

SWITCH

ASSY, FOR UPPER BEACONS

1шт.

156664

SCREW,Cross Oval Hd, #6 - 32 x 5/8"

1шт.

4

1301004C1

SWITCH

ASSY, REAR AND CENTRE WORKLIGHTS

1шт.

156664

SCREW,Cross Oval Hd, #6 - 32 x 5/8"

1шт.

5

198960C1

SWITCH

ASSY, CYLINDER SPEED AND FAN SPEED

2шт.

156664

SCREW,Cross Oval Hd, #6 - 32 x 5/8"

1шт.

6

107655C1

SOLENOID SWITCH

SWITCH ASSY, MAGNETIC START

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 X 1/2 SLT-TRUSS-HD

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1шт.

120376

NUT,5/16"-18, G5

1шт.

120614

NUT,Hex, #10 - 32

1шт.

80681

LOCK WASHER,5/16"

1шт.

120217

LOCK WASHER,#10

1шт.

7

196875C1

BLOCK

FUSE PANEL

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

120217

LOCK WASHER,#10

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

1шт.

117142

FUSE,10 Amp, Type 3AG

CARTRIDGE TYPE 10 AMP

4шт.

432644

FUSE,20 Amp, Type SFE

CARTRIDGE TYPE 20 AMP

2шт.

223-31

FUSE,10 Amp, Type 3AG

FUSE, CARTRIDGE TYPE 30 AMP

1шт.

3118918R1

FUSE

CARTRIDGE TYPE 5 AMP

1шт.

8

121590C1

RELAY

ALTERNATOR

1шт.

P/N 121590C1 DIODE REDUCES 12 VOLT SYSTEM TO 6 VOLT TO ACCEPT 6 VOLT RELAY. IF RELAY IS BURNING OUT, REPLACE DIODE. NOTE IN 1480 BOOK. CNS/CAM 3/13/98

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1шт.

9

262969C91

FUSE

BREAKER, CIRCUIT 30 AMP

2шт.

1301156C1

STRIP

CIRCUIT BREAKER

1шт.

1301157C1

BAR

CIRCUIT BREAKER

1шт.

120614

NUT,Hex, #10 - 32

1шт.

120217

LOCK WASHER,#10

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1шт.

10

1301521C1

SWITCH

ASSY, SEPARATOR CLUTCH

1шт.

11

1301522C1

SWITCH

ASSY, FEEDER CLUTCH

1шт.

12

1301092C1

SWITCH

ASSY, HEADER LIFT CONTROL

1шт.

13

1301175C1

SWITCH

REEL LIFT CONTROL

1шт.

156664

SCREW,Cross Oval Hd, #6 - 32 x 5/8"

1шт.

14

1301176C1

SWITCH

ASSY, REEL SPEED

1шт.

156664

SCREW,Cross Oval Hd, #6 - 32 x 5/8"

1шт.

15

187609C1

RECTIFIER

ASSY, DIODE

1шт.

3179004R1

SCREW

M6 X 20 T/HDS

2шт.

3174964R1

LOCK NUT

M6 FLANGE LOCK

2шт.

1319388R1

PLUG

4шт.

16

121628C1

BUZZER

AUDIBLE ALARM

1шт.

17

1301079C1

HARNESS

ASSY, HEADER LIFT HANDLE

1шт.

18

TACHOMETER, MULTI-POSITION - SEE INSTRUMENTS AND GAUGES

1шт.

19

GAUGE, CLUSTER - SEE INSTRUMENTS AND GAUGES

1шт.
