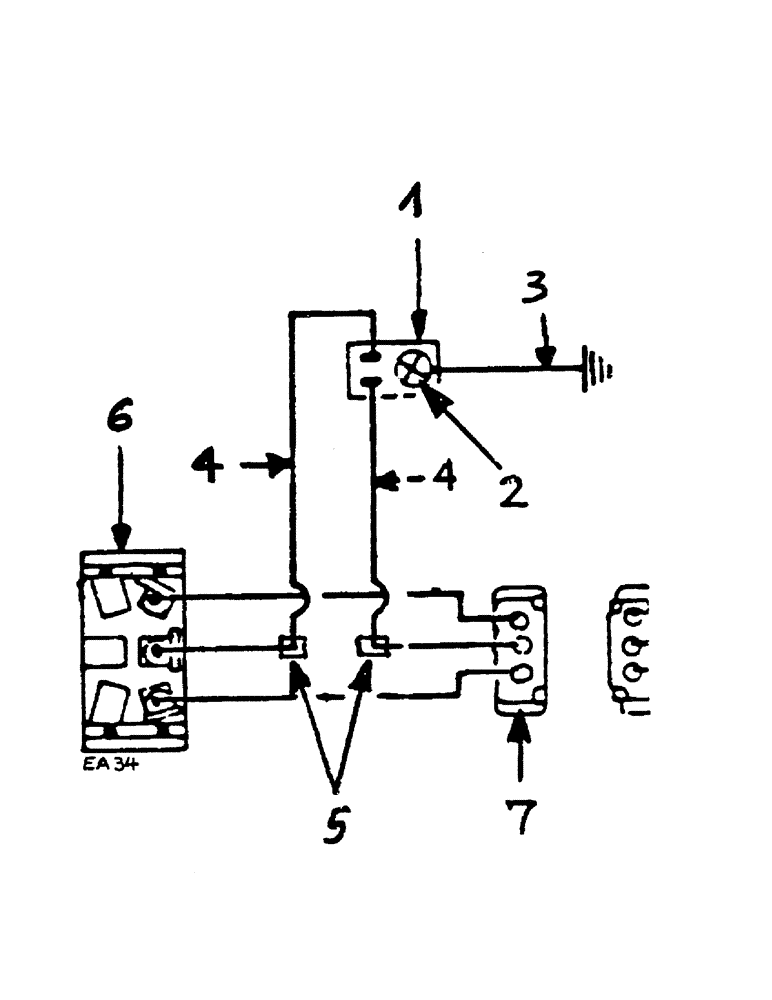

Запчасти Case IH 1460 (08-007) - SAFETY SWITCH OF HEADER LIFT, GERMAN REGULATION (06) - ELECTRICAL

1

1311057C1

TOGGLE SWITCH

CPT, SAFETY

1шт.

2

3121022R1

BULB

LAMP

1шт.

3

1407470R1

CABLE ASSY.

WIRE, GROUND - BLACK

1шт.

4

1311060C1

ELECTRICAL WIRE

WIRE FEED - RED

2шт.

5

3179333R1

CONNECTOR, ELEC

CONNECTOR

2шт.

6

SWITCH, HEADER LIFT CONTROL

1шт.

7

HARNESS, HEADER LIFT HANDLE - SEE INSTRUMENT PANEL WIRING DIAGRAM

1шт.

158477C91

CABLE

ENGINE TO COMBINE GROUND, NOT ILLUSTRATED

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

NOT ILLUSTRATED

1шт.

120377

NUT,3/8" - 16, Gr 5

Not Illustrated

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

Not Illustrated

1шт.
