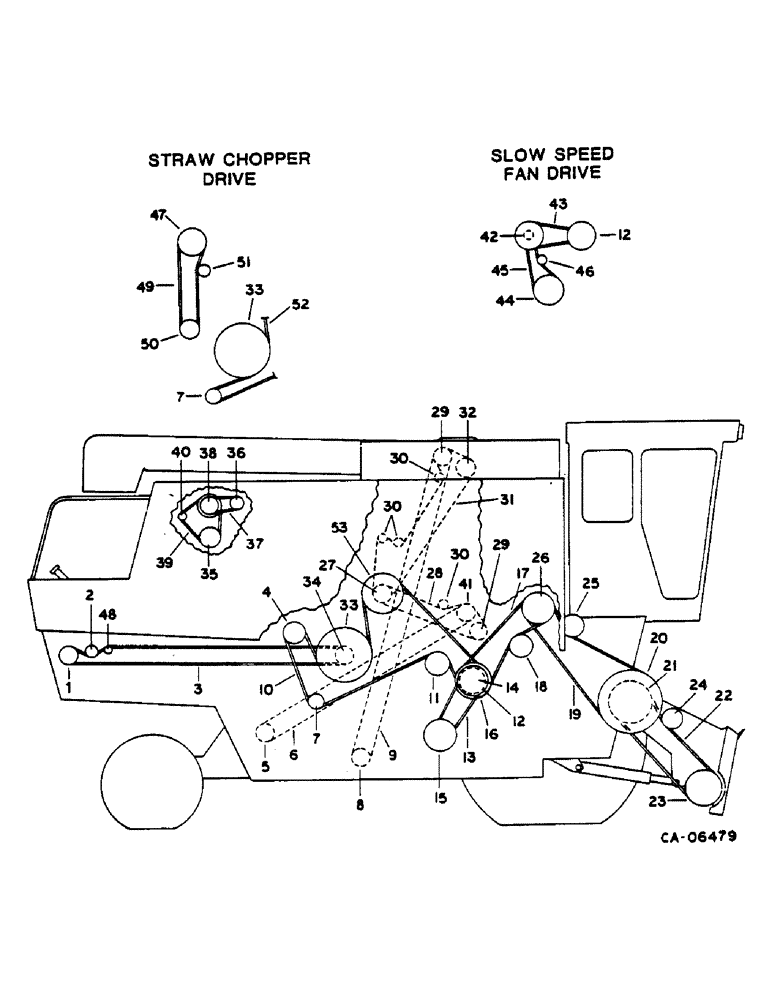

Запчасти Case IH 1460 (02-005) - PULLEY, BELT, SPROCKET AND CHAIN DIAGRAM, RIGHT SIDE, PRODUCT GRAPHIC PACKAGES Accessories & Attachments / Miscellaneous

1

181196C1

PULLEY

STRAW SPREADER DRIVEN - 10.0 IN. OD

1шт.

2

181126C91

PULLEY

SPREADER TIGHTENER DRIVE - 6.75 IN. OD

1шт.

3

196371C1

BELT,0.630" W x 222.59" L

Straw spreader drive, OC

1шт.

4

195161C1

PULLEY

BEATER DRIVE - 8.38 IN. OD

1шт.

5

168683C1

SPROCKET

TAILINGS ELEVATOR BOOT - 7T

1шт.

6

1312203C91

CHAIN (AG)

CONVEYOR, TAILINGS ELEVATOR

1шт.

7

673214R91

PULLEY

ELEVATOR DRIVE FIXED IDLER - 7.15 IN. OD

1шт.

7

186782C92

PULLEY

ELEVATOR DRIVE FIXED IDLER

1шт.

8

168683C1

SPROCKET

GRAIN ELEVATOR BOOT - 7T

1шт.

9

1312199C91

CONVEYOR

GRAIN ELEVATOR

1шт.

10

186509C2

BELT,0.879" W x 255.99" L

Elevator drive, OC

1шт.

11

673214R91

PULLEY

ELEVATOR DRIVE

1шт.

11

186782C92

PULLEY

ELEVATOR DRIVE

1шт.

12

PULLEY ASSY, FAN DRIVER

1шт.

13

195396C2

BELT,31.80 mm W x 1881.58 mm L

Fan drive, OC

1шт.

14

193948C1

PULLEY,39.61mm W x 254mm OD

ASSY, ELEVATOR JACKSHAFT DRIVE - 9.75 IN. OD

1шт.

15

PULLEY ASSY, FAN DRIVEN

1шт.

16

183325C1

PULLEY

CLEANING UNIT DRIVE - 13.0 IN. OD

1шт.

17

191305C1

V-BELT,0.879" W x 112.19" L

Fan jackshaft drive, OC

1шт.

18

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

FAN JACKSHAFT DRIVE IDLER - 8.0 IN. OC

1шт.

19

192738C1

BELT,22.225 mm W x 3814.70 mm L, 3, Ribs

Feeder drive, OC

1шт.

20

1305297C1

PULLEY

FEEDER DRIVEN - 22.56 IN. OD

1шт.

21

1305288C1

PULLEY

FEEDER JACKSHAFT DRIVE - 16.70 IN. OD

1шт.

22

1313095C1

V-BELT

FEEDER JACKSHAFT DRIVE - 132 IN. OC - SET OF 3

1шт.

23

176574C3

PULLEY, FEEDER JACKSHAFT DRIVEN - 13.5 IN. OC

1шт.

24

176579C1

IDLER

JACKSHAFT DRIVE TIGHTENER - 8.0 IN. OD

1шт.

24

1379401C1

PULLEY, JACKSHAFT DRIVE TIGHTENER

1шт.

25

174757C1

PULLEY

FEEDER DRIVE IDLER - 8.0 IN. OD

1шт.

26

191603C2

PULLEY

FEEDER DRIVE - 12.0 IN. OD

1шт.

27

192139C2

SPROCKET

GRAIN AND TAILINGS ELEVATOR DRIVE - 25T

2шт.

28

CHAIN ASSY, TAILINGS ELEVATOR DRIVE - 153 LINKS FROM BULK LENGTH AND ONE CONNECTING LINK 1310D

1шт.

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

BULK LENGTH 10 FT

1шт.

29

1302200C1

SPROCKET ASSY.

GRAIN ELEVATOR HEAD - 7T

1шт.

29

188188C1

SPROCKET ASSY.

GRAIN AND TAILINGS ELEVATOR DRIVEN - 27T

2шт.

30

631905R91

SPROCKET

GRAIN AND TAILINGS ELEVATOR DRIVE IDLER - 17T

1шт.

31

CHAIN ASSY, GRAIN ELEVATOR DRIVE - FOR GRAIN AND CORN - 259 LINKS FROM BULK LENGTH AND ONE CONNECTING LINK 1310 D

1шт.

31

CHAIN ASSY, GRAIN ELEVATOR DRIVE - FOR RICE - 285 LINKS FROM BULK LENGTH AND ONE CONNECTING LINK 1310D

1шт.

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

BULK LENGTH 10 FT

1шт.

32

188188C1

SPROCKET ASSY.

GRAIN ELEVATOR DRIVEN - FOR GRAIN AND CORN - 27T - FAST SPEED

1шт.

33

193682C1

PULLEY

SHAKER SHAFT DRIVEN - 25.0 IN. OD

1шт.

34

566516R91

PULLEY ASSY.

STRAW SPREADER DRIVE - 9.75 IN. OD

1шт.

35

DAMPER ASSY, VIBRATION - SEE ENGINE PARTS CATALOGUE

1шт.

36

143406C1

PULLEY ASSY.

COMPRESSOR

1шт.

37

874097C1

V-BELT,39.50" L

Compressor

1шт.

38

PULLEY, WATER PUMP AND AIR CONDITIONER DRIVE - SEE ENGINE PARTS CATALOGUE

1шт.

39

537072R1

BELT, ENGINE FAN - MATCHED SET

1шт.

40

PULLEY, ALTERNATOR-GENERATOR - SEE ALTERNATOR

1шт.

41

168683C1

SPROCKET

TAILINGS ELEVATOR HEAD - 7T

1шт.

41

188188C1

SPROCKET ASSY.

TAILINGS ELEVATOR DRIVEN - 27T

1шт.

42

181360C1

PULLEY ASSY.

SLOW SPEED FAN JACKSHAFT - 5 IN. OD

1шт.

43

181359C1

BELT,1.25" W x 66.54" L

Fan jackshaft, OC

1шт.

44

564569C1

PULLEY ASSY, FAN HUB - 12.68 IN. OD

1шт.

45

610521R1

V-BELT

Slow speed fan jackshaft - 76 in. OC

1шт.

46

564745R91

PULLEY

IDLER - 5.5 IN. OD

1шт.

47

181081C1

PULLEY

CHOPPER DRIVE - 12 IN. OD

1шт.

48

181127C1

PULLEY

IDLER

1шт.

49

181012C1

BELT,0.630" W x 94.09" L, 2 Ribs

Straw chopper drive, OC

1шт.

50

181080C1

PULLEY

CHOPPER DRIVEN - 6 IN. OD

1шт.

51

181133C91

PULLEY ASSY.

CHOPPER DRIVE IDLER

1шт.

52

181055C1

BELT,0.879" W x 200.99" L

Cleaning unit drive, OC, Used with straw chopper

1шт.

53

183325C1

PULLEY

JACKSHAFT DRIVEN - 13.0 IN. OD

1шт.

77583C91

PACKAGE

I.H. TRADEMARK 1 PRODUCT GRAPHIC - LARGE SIZE - 2 I.H. TRADEMARK 6.58 X 7.09, 2 I.H. TRADEMARK 7.68 X 8.27, 2 I.H. TRADEMARK 10.24 X 11.02

1шт.

1312401C92

DECAL KIT

ASSY, PRODUCT GRAPHIC - FOR COMPLETE MACHINES

1шт.

PACKAGE, TORQUE SENSING SPRING REMOVAL, SEE ROTOR DRIVE

1шт.

BRACKET, FIRE EXTINGUISHER, SEE FIRE EXTINGUISHER

1шт.

SEE FIRE EXTINGUISHER

1шт.

RADIO, MOUNTING PACKAGE - SEE RADIO - EXTENSION, ROTOR REAR BAR - SEE ROTOR - SIEVE, SHOE 3 MM ROUND HOLE - SIEVE, SHOE 5 MM ROUND HOLE - SIEVE, SHOE 16 MM ROUND HOLE - SIEVE, SHOE 1-5/8 CLOSE SLAT - SEE SHOE AND SHOE SIEVE

1шт.

PACKAGE, AUGER BED GRAIN SPREADER, SEE AUGER BED

1шт.

1300673C91

PACKAGE

PACKAGE, SMALL WIRE CONCAVE FILLER STRIPS CHANNEL - SET OF 6

1шт.

1300716C91

CHANNEL

PACKAGE, LARGE WIRE CONCAVE FILLER STRIPS CHANNEL - SET OF 6

1шт.

1300103C91

SIEVE, CORN CHAFFER

1шт.
