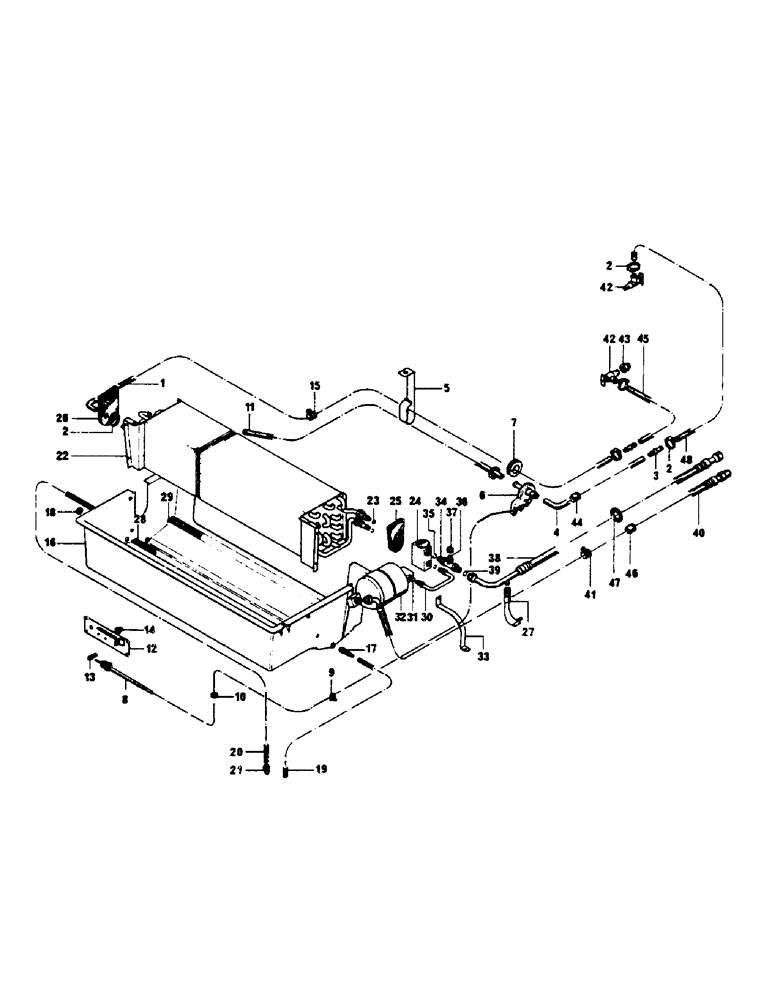

Запчасти Case IH 1460 (13-042) - COMBINED EVAPORATOR/HEATER CORE (05) - SUPERSTRUCTURE

1

HOSE, HEATER INLET - 3962 MM - 156 INCHES 15 MM ID FROM BULK ROLL

1шт.

117724C1

HEATER HOSE,0.625" ID x 1.00'

Bulk Roll

1шт.

2

794700R91

CLAMP

HOSE

1шт.

3

173898C1

FITTING

HOSE CONNECTOR

2шт.

4

HOSE, HEATER, OUTLET - 1829 MM - 72 INCHES - 15 MM ID FROM BULK ROLL

1шт.

117724C1

HEATER HOSE,0.625" ID x 1.00'

Bulk Roll

1шт.

5

1275940C1

CLAMP

DOUBLE HOSE

2шт.

6

3234102R91

VALVE

HEATER CONTROL

1шт.

7

167955C2

SEAL

SPACER, HEATER HOSE

1шт.

SCREW

1шт.

NUT

1шт.

8

1275935C1

CABLE

VALVE CONTROL

1шт.

9

299398C1

CLAMP,3/16", Insul, 1/4" Bolt

CABLE

1шт.

10

109390C1

GROMMET, CABLE - 8.5 MM HOLE SIZE

1шт.

11

HOSE, VALVE TO CORE TOP - 2006 MM - 79 INCHES - 15 MM ID FROM BULK ROLL

1шт.

117224C1

SPARE PART HOSE, BULK ROLL

1шт.

12

1312599C1

LARGE PLATE

PLATE, LARGE CONTROL

1шт.

30278R1

SCREW,Cross Pan Hd, M5 x 14

4шт.

934871R1

NUT,M5, Cl 5

4шт.

13

1312600R1

LARGE PIN

PIN, LARGE DRIVING

1шт.

14

KNOB, ORDER 1312773C91

1шт.

15

1312505C1

CLAMP

1шт.

931828R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

16

135776C1

HOUSING

BLOWER, CORE, DRAIN PAN

1шт.

104033C1

SCREW

NO. 10 X 1.905 MM CR W/HD TAP

6шт.

17

1250522C2

FITTING

CONDENSATE DRAIN TUBE

2шт.

18

1262068C1

GROMMET

RUBBER - BLOWER HARNESS

1шт.

19

HOSE, EVAPORATOR DRAIN LH - 2362 MM - 93 INCHES FROM BULK

1шт.

198091C1

HOSE,12.95mm ID x 15240mm L

BULK ROLL

1шт.

20

HOSE, EVAPORATOR DRAIN RH - 3886 MM - 153 INCHES BULK ROLL

1шт.

198091C1

HOSE,12.95mm ID x 15240mm L

BULK ROLL

1шт.

21

109239C2

CHECK VALVE

Drain

2шт.

22

135777C1

CORE

COMBINATION EVAPORATOR, HEATER

1шт.

104033C1

SCREW

NO. 10 X 19.05 MM CR W/HD TAP -

4шт.

23

375271R1

O-RING,0.426" ID x 0.07" Width

2шт.

24

118321C1

VALVE

EXPANSION

1шт.

24

118321C1GV

VALVE

EXPANSION

1шт.

25

1250463C2

GROMMET

L.H. TUBES

1шт.

26

1250464C2

GROMMET

R.H. TUBES

1шт.

27

111267C3

SWITCH

LOW PRESSURE

1шт.

28

1250534C3

SEAL

STRIP, CORE FRONT

1шт.

29

1250533C2

SEAL

STRIP, CORE REAR

1шт.

30

1250438C1

TUBE ASSY.

RECEIVER DRYER, WITH 32

1шт.

31

359158R1

O-RING,0.301" ID x 0.07" Width

5шт.

32

143469C2

RESERVOIR

RECEPTACLE, DRYER

1шт.

33

1250439C1

CLAMP

RECEPTACLE DRYER

1шт.

104033C1

SCREW

NO. 10 X 19.05 CR W/HD TAP

2шт.

34

1275933C1

FITTING,4.6 mm ID, 0.625" OD

TUBE ASSY, EXP. VALVE TO EVAPORATOR DISC HOSE - ADAPTER, WITH 36 - 38

1шт.

35

392382R1

O-RING,0.551" ID x 0.07" Width

TUBE 15.87 MM

1шт.

36

1250594C1

CORE

VALVE

1шт.

37

118188C1

CAP

VALVE

1шт.

38

183904C1

A/C HOSE

EVAPORATOR TO COMBINE - WITH 40 - 2654 MM - 104.5 INCHES

1шт.

39

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

TUBE 15.87 MM

2шт.

40

183906C2

HOSE ASSY, DRYER TO COMBINE - 5590 MM - 220 INCHES, WITH 32

1шт.

41

1312506C1

CLAMP

HOSE ID. 25 MM

1шт.

931828R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

42

301803R91

VALVE

HEATER HOSE REAR

2шт.

43

175778H1

ADAPTER

12.7 TO 9.52 MM

1шт.

44

198827C1

GROMMET,22.22mm ID x 41.1mm OD x 26.9mm Thk

22.22 ID

2шт.

45

634654C1

HOSE, HEATER - HOT

1шт.

46

198826

SPARE PART

GROMMET

1шт.

47

1312528C1

GROMMET

1шт.

48

118528C1

FLEXIBLE HOSE

HEATER - COLD

1шт.

TAPE, INSULATION - 2390 MM - 94 INCHES FROM BULK ROLL, NOT ILLUSTRATED

1шт.

118468C1

TAPE

BULK ROLL, NOT ILLUSTRATED

1шт.
