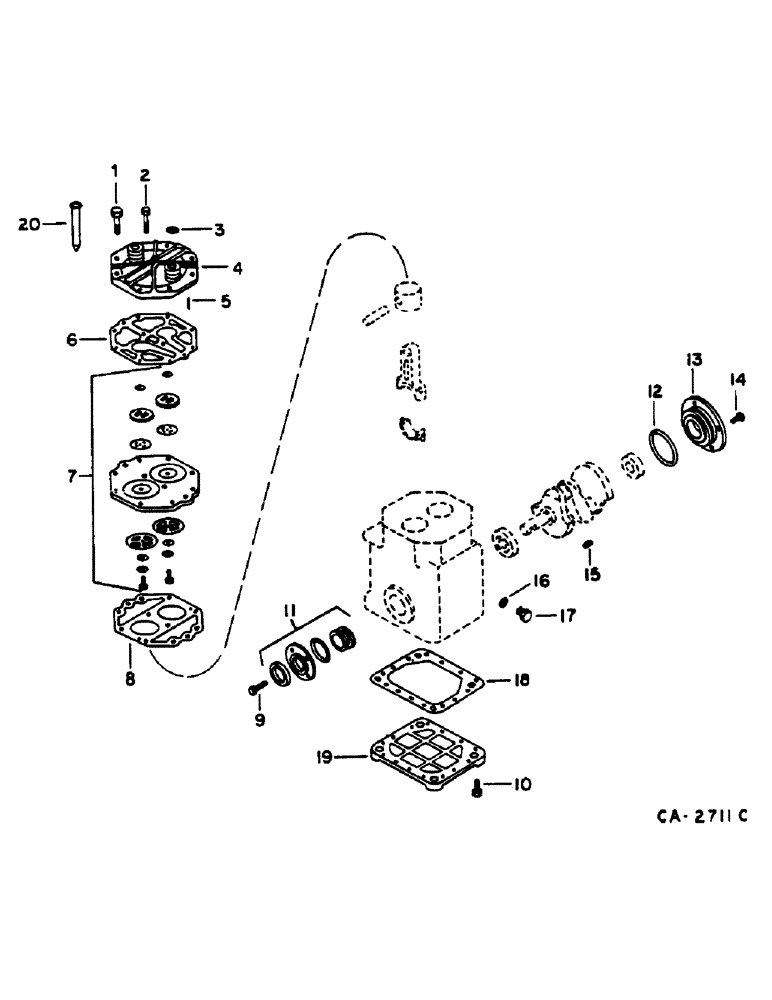

Запчасти Case IH 1460 (13-040) - COMPRESSOR, AIR CONDITIONER (05) - SUPERSTRUCTURE

118250C91

COMPRESSOR

ASSY, AIR CONDITIONER

1шт.

1

20641R1

SCREW

5/16 X 1-3/8 PLN H/HD MACH

8шт.

2

27690R1

12 PT SCREW,Flg, 5/16"-18 x 1 1/2"

2шт.

3

431762C1

GASKET

SERVICE VALVE

2шт.

4

479011C91

KIT

CYLINDER HEAD W/GASKETS, WITH 6, 8

1шт.

5

21247R1

DOWEL,1/8" x 3/4"

2шт.

6

431756C1

CYLINDER HEAD GASKET

HEAD

1шт.

7

394430C91

KIT

VALVE PLATE W/GASKETS, WITH 6, 8

1шт.

8

431761C1

CYLINDER HEAD GASKET

VALVE PLATE

1шт.

9

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

Course threads

6шт.

10

21024R1

SCREW

1/4 X 5/8 ZNP H/HD MACH

14шт.

11

428606C91

SEAL

SHAFT SEAL FRONT

1шт.

12

431763C1

O-RING,0.07" Thk x 3.239" ID, -42, Cl 6, 90 Duro

O-RING

1шт.

13

431757C1

HOUSING

REAR BEARING

1шт.

14

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

4шт.

15

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

16

431764C1

SEAL,8.484mm ID x 1.778mm Width

O-RING OIL PLUG

2шт.

17

86982693

PLUG

3/8-24 HEX OUTSIDE HD FILLER

2шт.

18

431760C2

GASKET

BASE

1шт.

19

431755C1

PLATE

SPARE PART BASE

1шт.

20

118210C1

FILTER SCREEN

SUCTION

1шт.
