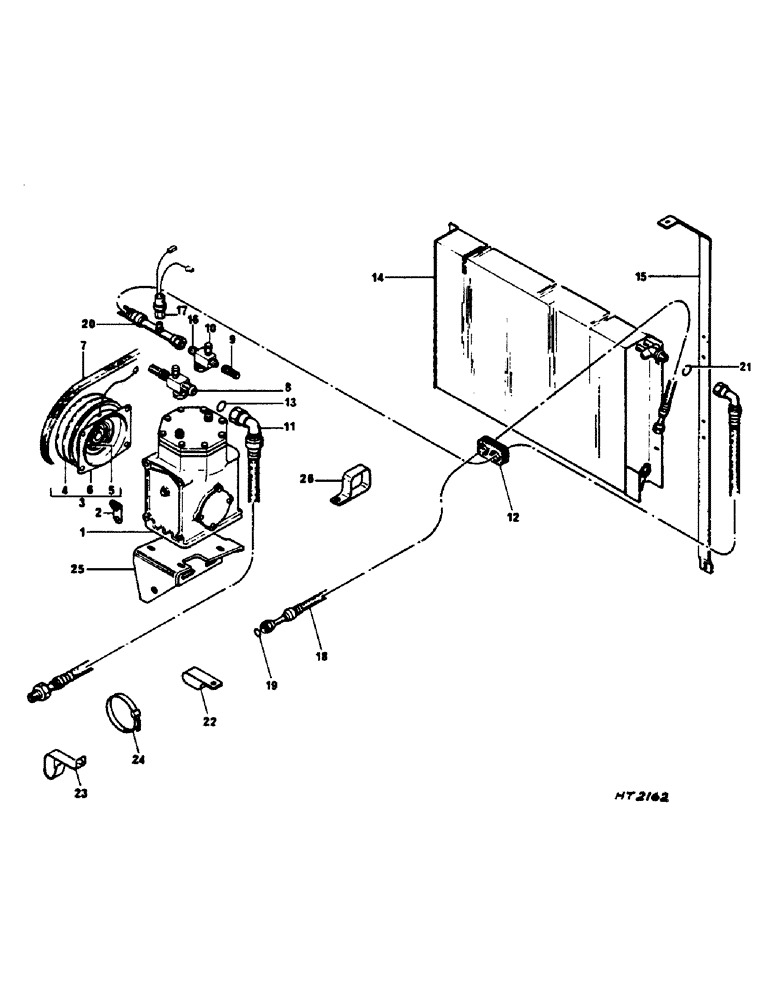

Запчасти Case IH 1460 (13-037) - AIR CONDITIONER AND CONDENSER (05) - SUPERSTRUCTURE

1

118250C91

COMPRESSOR

ASSY - SEE COMPRESSOR, AIR CONDITIONER

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

4шт.

933965R1

LOCK WASHER,M10

4шт.

934768R1

WASHER

11 X 27 X 2 MM

4шт.

2

362667R1

CLIP

CLUTCH WIRE

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

(9.52 X 12.7 MM)

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

3

143405C91

PULLEY

CLUTCH ASSY, COMPRESSOR, WITH 4, 5, 6

1шт.

4

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

Pulley Assy, W/Bearing

1шт.

5

221438H1

BEARING ASSY,29.99mm ID x 62mm OD x 26.99mm W

DOUBLE ROW, BALL

1шт.

6

143407C1

COIL ASSY.

FIELD

1шт.

7

874097C1

V-BELT,39.50" L

Compressor drive

1шт.

8

183902C91

VALVE

ASSY, SERVICE - SUCTION

1шт.

9

118185C1

CAP ASSY.

VALVE STEM

2шт.

10

118188C1

CAP

SEAL

2шт.

11

183908C1

HOSE,12.5mm ID x 4775.2mm L

COMPRESSOR TO CAB - 4775 MM 188 INCHES, WITH 13

1шт.

12

3234137R1

GROMMET

DOUBLE HOSE

1шт.

13

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

(14.29 X 17.46 MM)

1шт.

14

183901C1

CONDENSER

COIL

1шт.

3177081R1

SCREW

M6 X 12 MM SLT-TRUSS-HD

4шт.

3174964R1

LOCK NUT

M6 FLANGE LOCK

4шт.

15

1312531C1

SUPPORT

CONDENSER STRAP

2шт.

3177070R1

SCREW,Sltd Truss Hd, M8 x 20

M8 X 20 SLT-TRUSS-HD

4шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

4шт.

16

183903C91

VALVE

ASSY, SERVICE - DISCHARGE

1шт.

17

111266C1

SWITCH, A/C HIGH PRE

HIGH PRESSURE

1шт.

18

183905C1

HOSE ASSY.

CONDENSER TO CAB - 5588 MM - 220 INCHES, WITH 19

1шт.

19

359158R1

O-RING,0.301" ID x 0.07" Width

1шт.

20

183910C1

A/C HOSE

CONDENSER TO COMPRESSOR - 1219 MM - 48 INCHES, WITH 21

1шт.

21

375271R1

O-RING,0.426" ID x 0.07" Width

(11.11 X 14.29 MM)

2шт.

22

154695C1

CLAMP

HOSE

1шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

1шт.

23

394271R1

CLIP

HOSE SUPPORT

2шт.

3177070R1

SCREW,Sltd Truss Hd, M8 x 20

M8 X 20 SLT-TRUSS-HD

1шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

1шт.

24

1408443R1

STRAP

TIE SMALL

4шт.

24

291207C1

CLAMP

STRAP, TIE LARGE

4шт.

25

175754C2

BRACKET

ASSY, COMPRESSOR

1шт.

930891R1

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

3шт.

905369R1

NUT,M10, Cl 8

3шт.

933965R1

LOCK WASHER,M10

3шт.

934768R1

WASHER

11 X 27 X 2 MM

5шт.

26257R1

SET SCREW

3/8 X 3 SQ HD CP SET ZN

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

25

1301387C1

CLIP

5шт.
